Entertainment/Communication Component Views

Entertainment/Communication Component Views

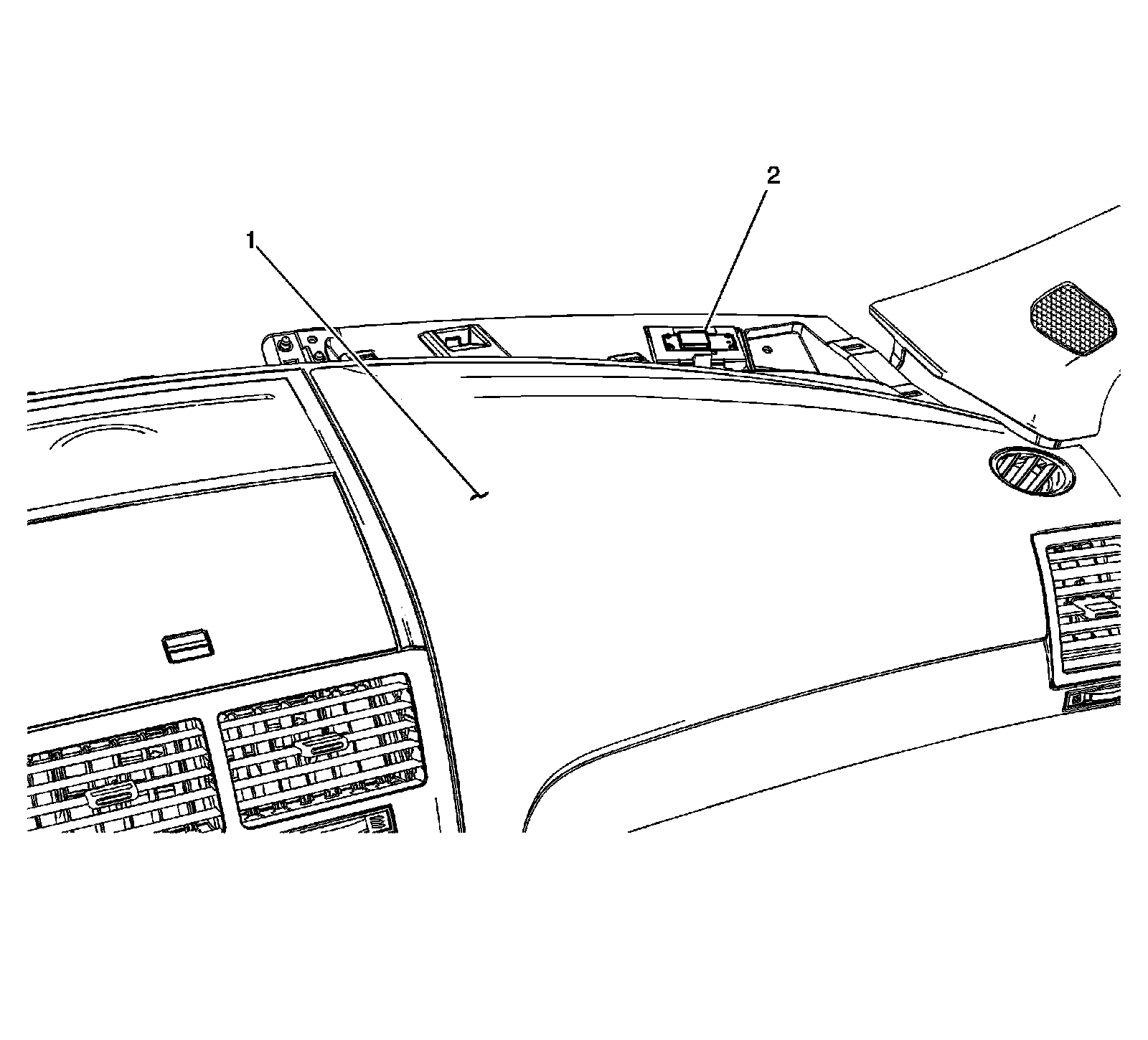

Near the Passenger A Pillar




1 - I/P Trim
2 - Navigation Radio Antenna

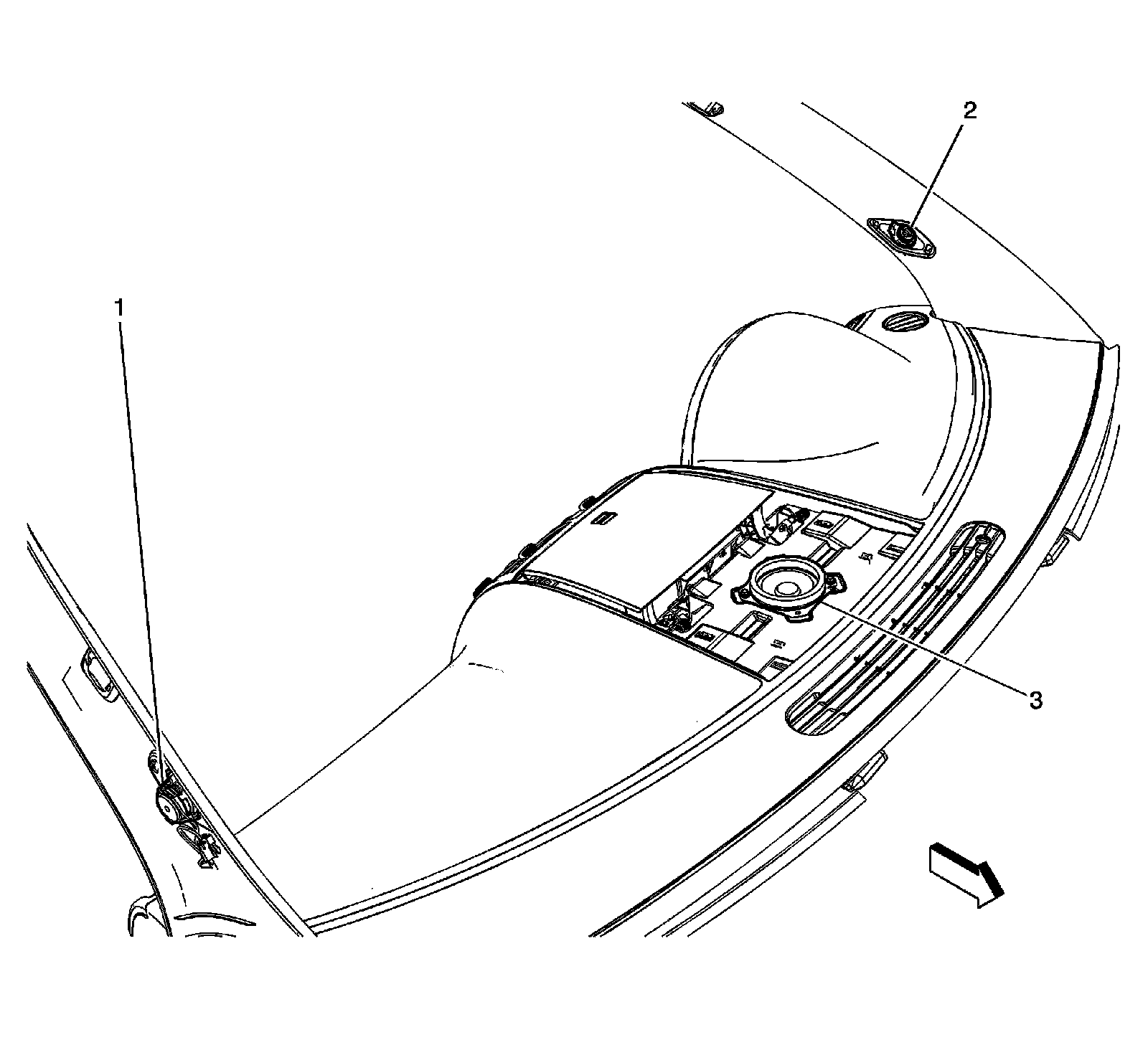

I/P Speakers




1 - Speaker - RF Tweeter
2 - Speaker - LF Tweeter
3 - Speaker - Center (UQA/UQG/UQS)

I/P Components




1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Radio
4 - Sunload Sensor (CJ2) / Ambient Light Sensor (C67)
5 - I/P Trim
6 - Inflatable Restraint Passenger Air Bag ON/OFF Indicator
7 - HVAC Control Module
8 - Heated Seat Switch - Passenger (KA1)
9 - Auxiliary Power Outlet - I/P
10 - I/P Switch Assembly
11 - Heated Seat Switch - Driver (KA1)
12 - Hazard Switch
13 - Driver Information Center (DIC) Switch (UH9)

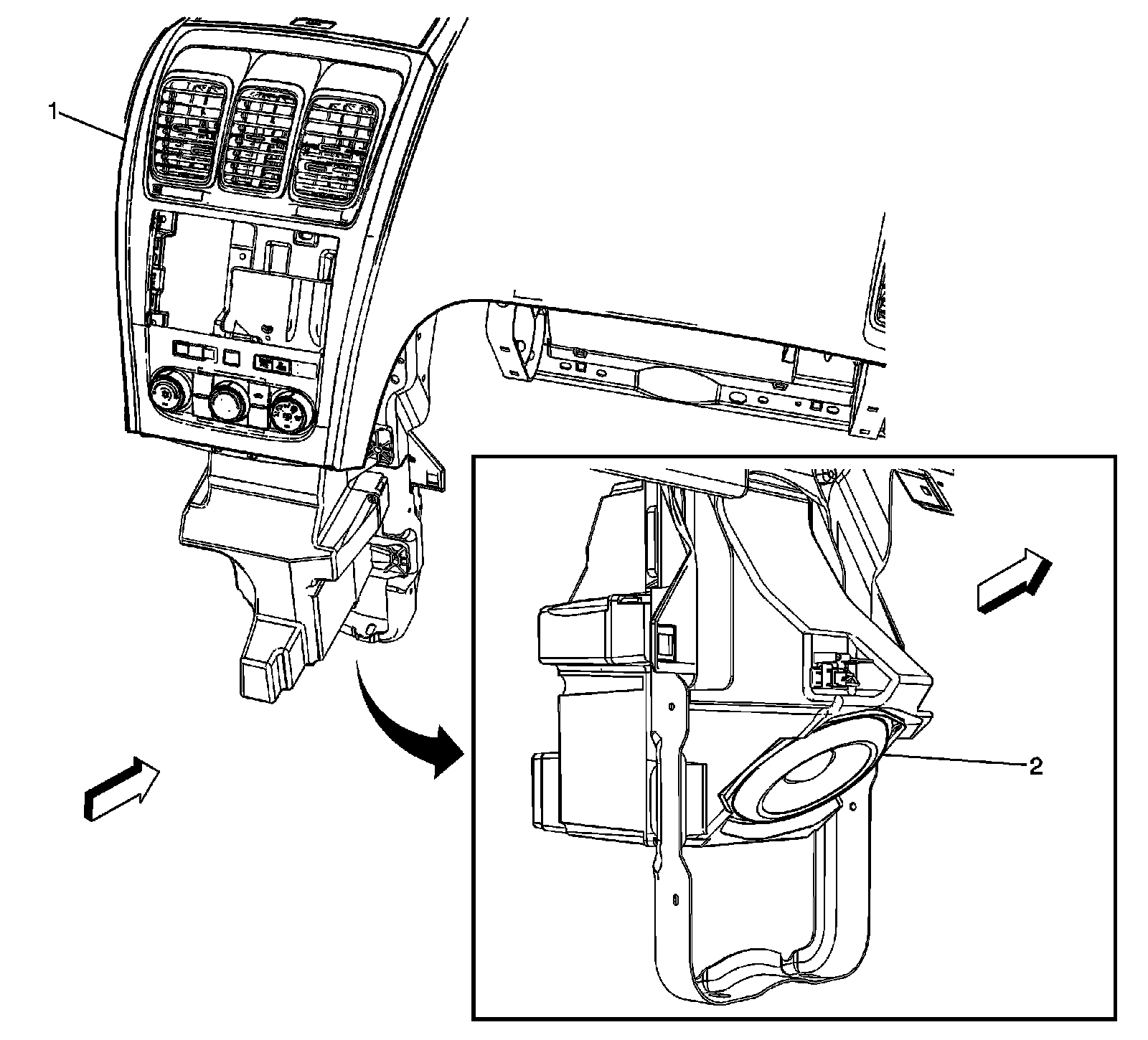

Below the Center I/P Trim




1 - I/P Trim
2 - Speaker - Subwoofer (UQA/UQ6/UQS)

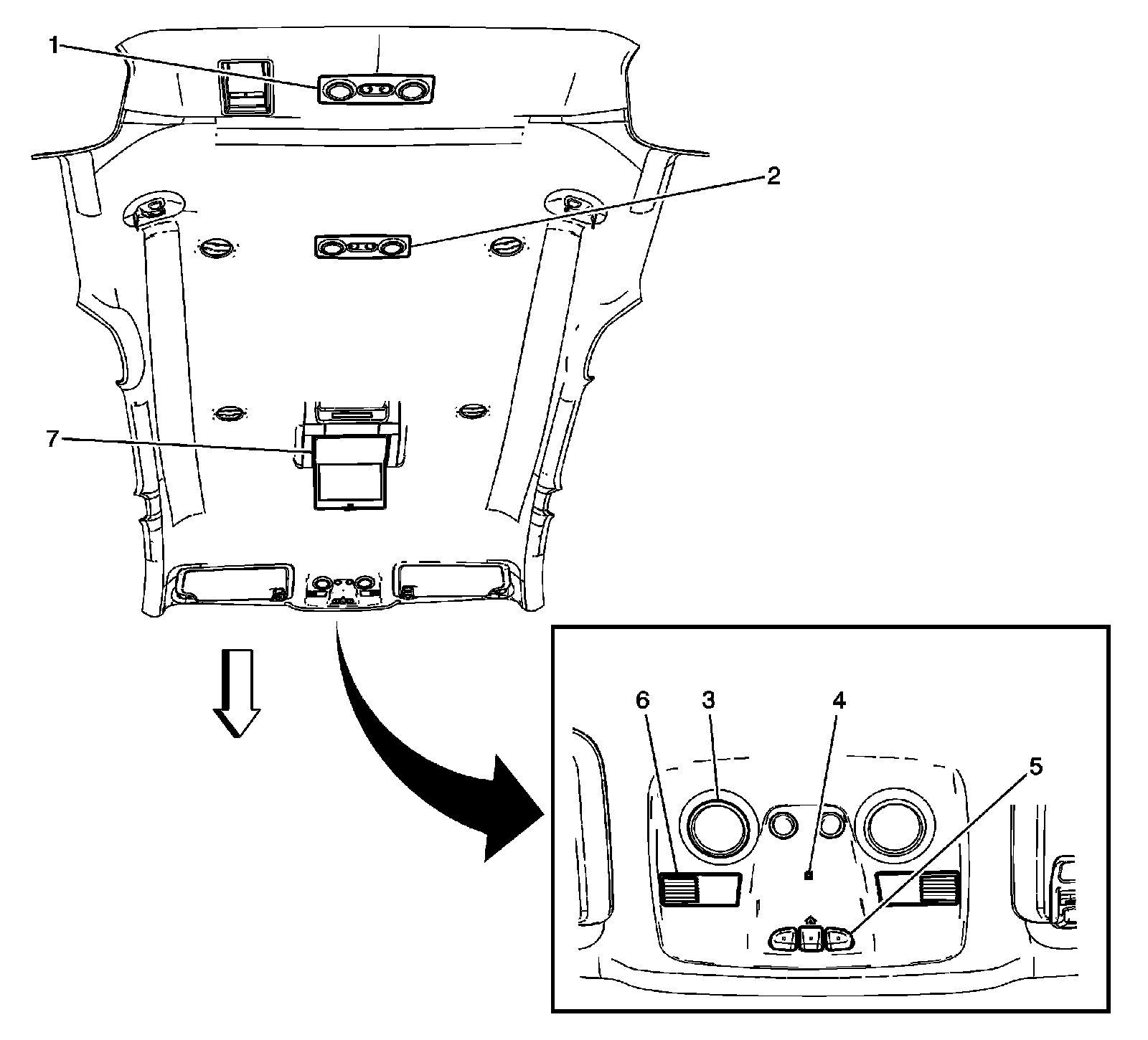

Headliner Components




1 - Courtest/Reading Lamp - Rear
2 - Courtesy/Reading Lamp Center
3 - Courtesy/Reading Lamp - Front
4 - Front Overhead Console Assembly
5 - Garage Door Opener (UG1)
6 - Cellular Microphone (UE1)
7 - Digital Video Disc (DVD) Player (U42)

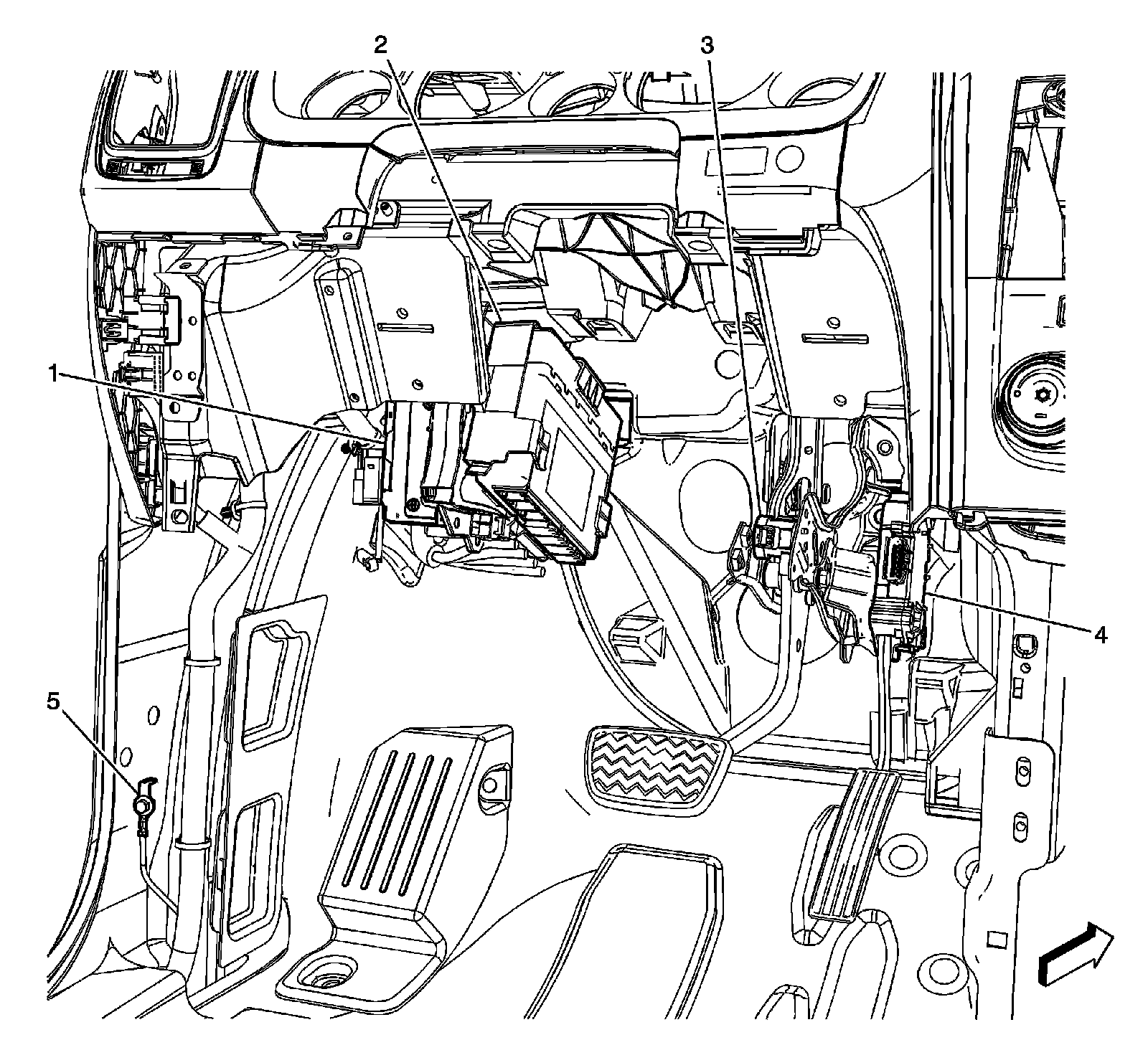

Below the Drivers Side I/P




1 - Audio Amplifier (UQA/UQG/UQS)
2 - Body Control Module (BCM)
3 - Brake Pedal Position Sensor
4 - Accelerator Pedal Position (APP) Sensor
5 - G301

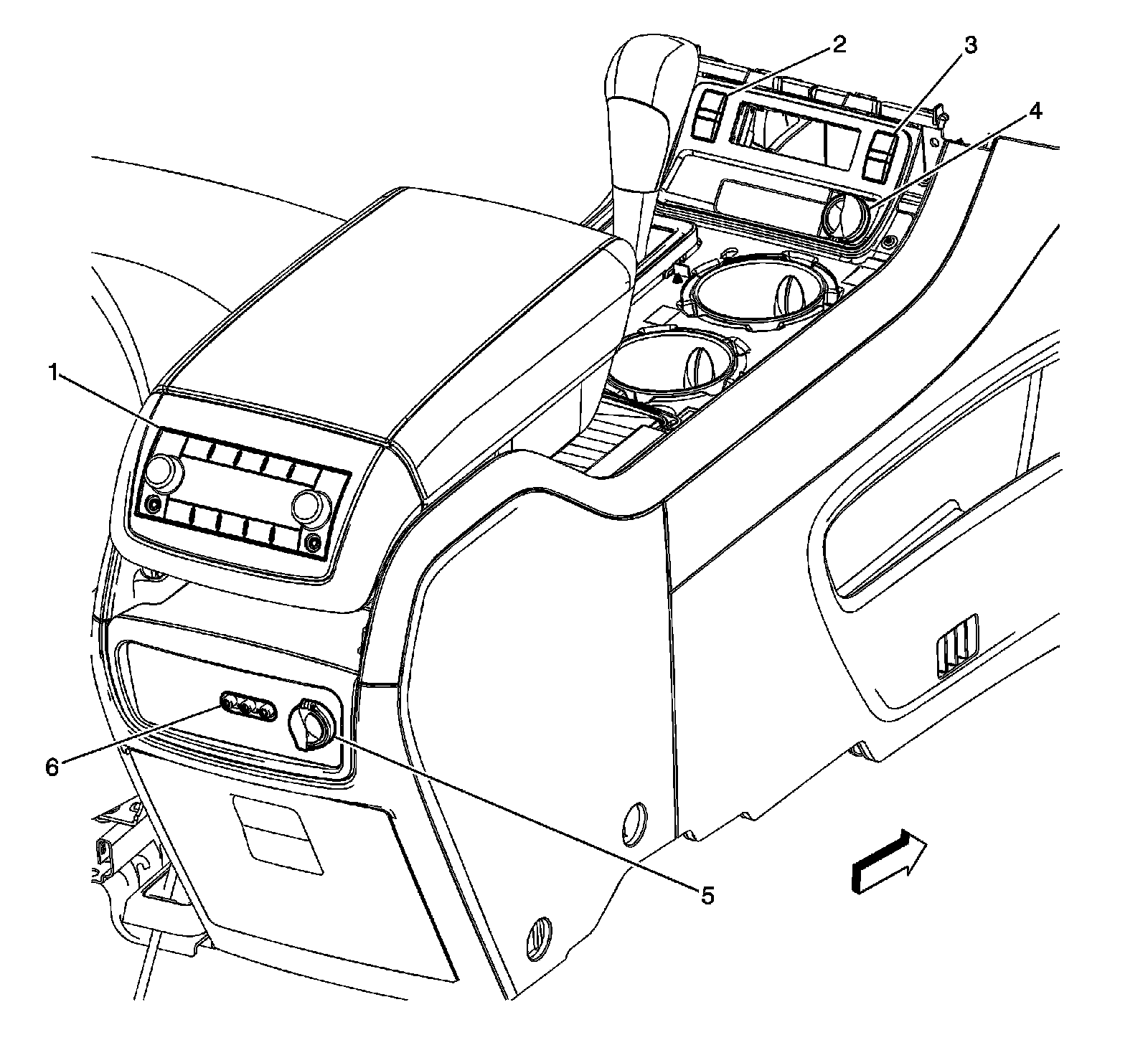

Console Components




1 - Rear Video/Audio/HVAC Module (UK6)
2 - Heated Seat Switch - Driver (KA1)
3 - Heated Seat Switch - Passenger (KA1)
4 - Cigar Lighter
5 - Auxiliary Power Outlet - Console Rear (DK1)
6 - Audio/Video Adapter (U42)

Driver Door




1 - Outside Rearview Mirror - Driver
2 - Memory Seat Switch (AG3)
3 - Driver Door Module (DDM) (AXC/AXE)
4 - Speaker - LF Door
5 - Inflatable Restraint Side Impact Sensing Module (SISM) - Left
6 - Door Latch Assembly - Driver
7 - Window Motor - Driver
8 - Turn Signal Lamp (Part of Outside Rearview )

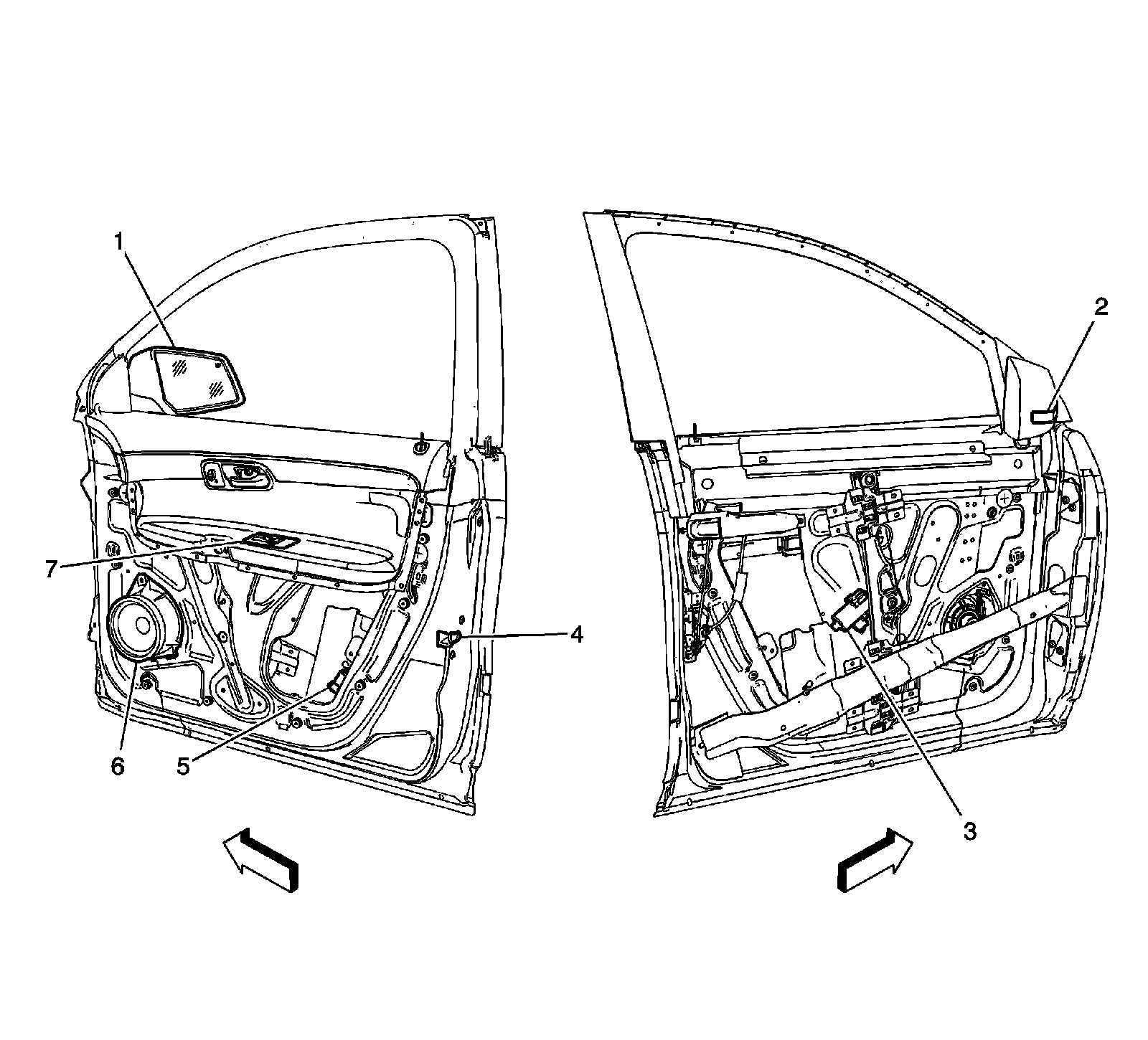

Passenger Door




1 - Outside Rearview Mirror - Passenger
2 - Turn Signal Lamp (Part of Outside Rearview Mirror)
3 - Window Motor - Passenger
4 - Door Latch Assembly - Passenger
5 - Inflatable Restraint Side Impact Sensing Module (SISM) - Right
6 - Speaker - RF Door
7 - Window Switch - Passenger (AXA)

LR Door




1 - Door Frame
2 - Door Latch Assembly - LR
3 - Window Switch - LR
4 - Speaker - LR Door
5 - Window Motor - LR
6 - Inflatable Restraint Side Impact Sensing Module (SISM) - LR

RR Door




1 - Door Latch Assembly - RR
2 - Window Switch - RR
3 - Speaker - RR Door
4 - Inflatable Restraint Side Impact Sensing Module (SISM) - RR
5 - Window Motor - RR

LR of the Passenger Compartment




1 - Vehicle Communication Unit (VCU) (UE1)
2 - Rear Parking Assist (RPA) Module (UD7)
3 - Digital Radio Receiver (U2K)
4 - Speaker - LR (UQA/UQ6/UQS)
5 - Accessory AC/DC Power Control Module (KV1)
6 - Liftgate Module (LGM) (E61)
7 - G401
8 - Liftgate Motor Assembly (E61)

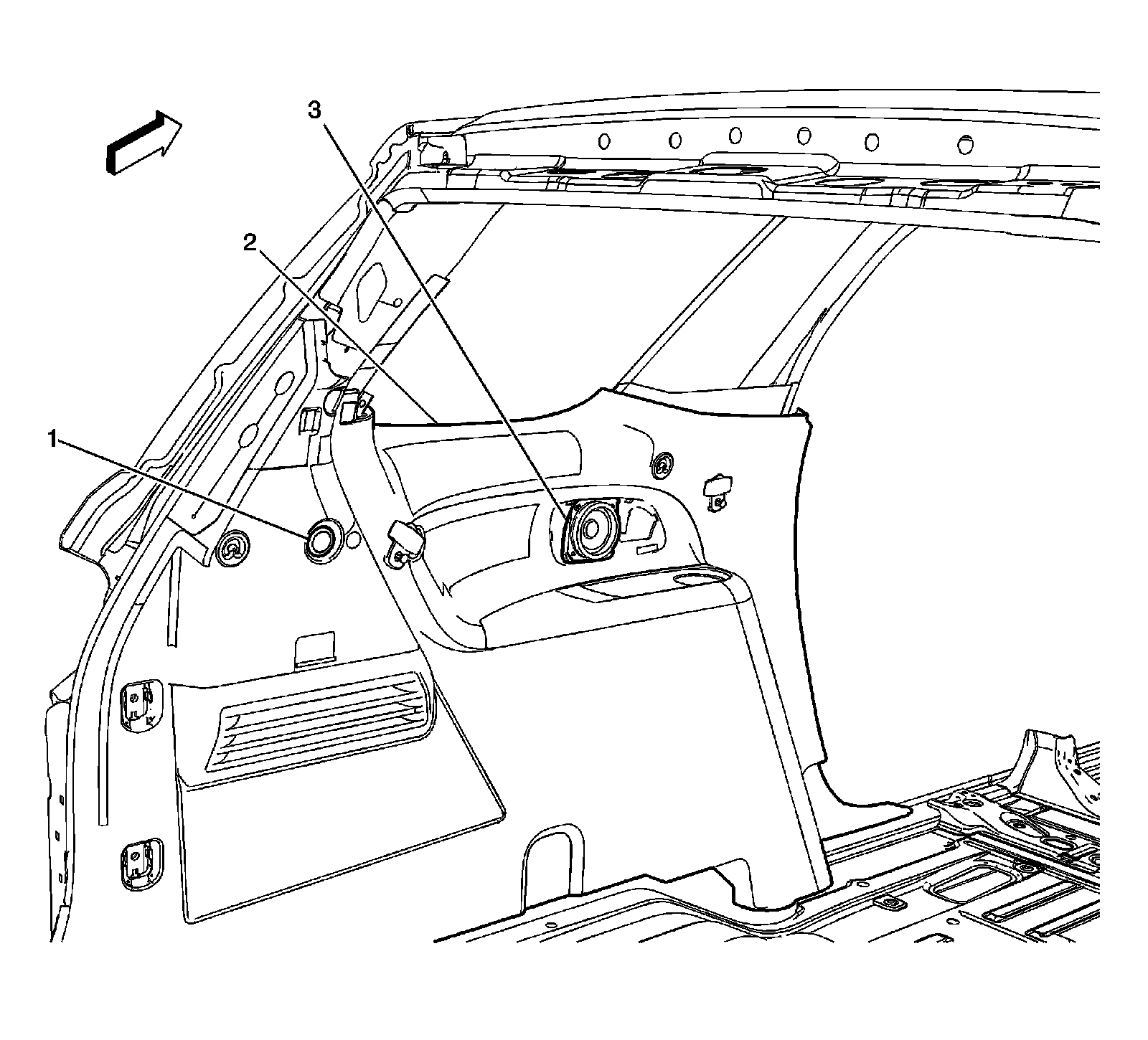

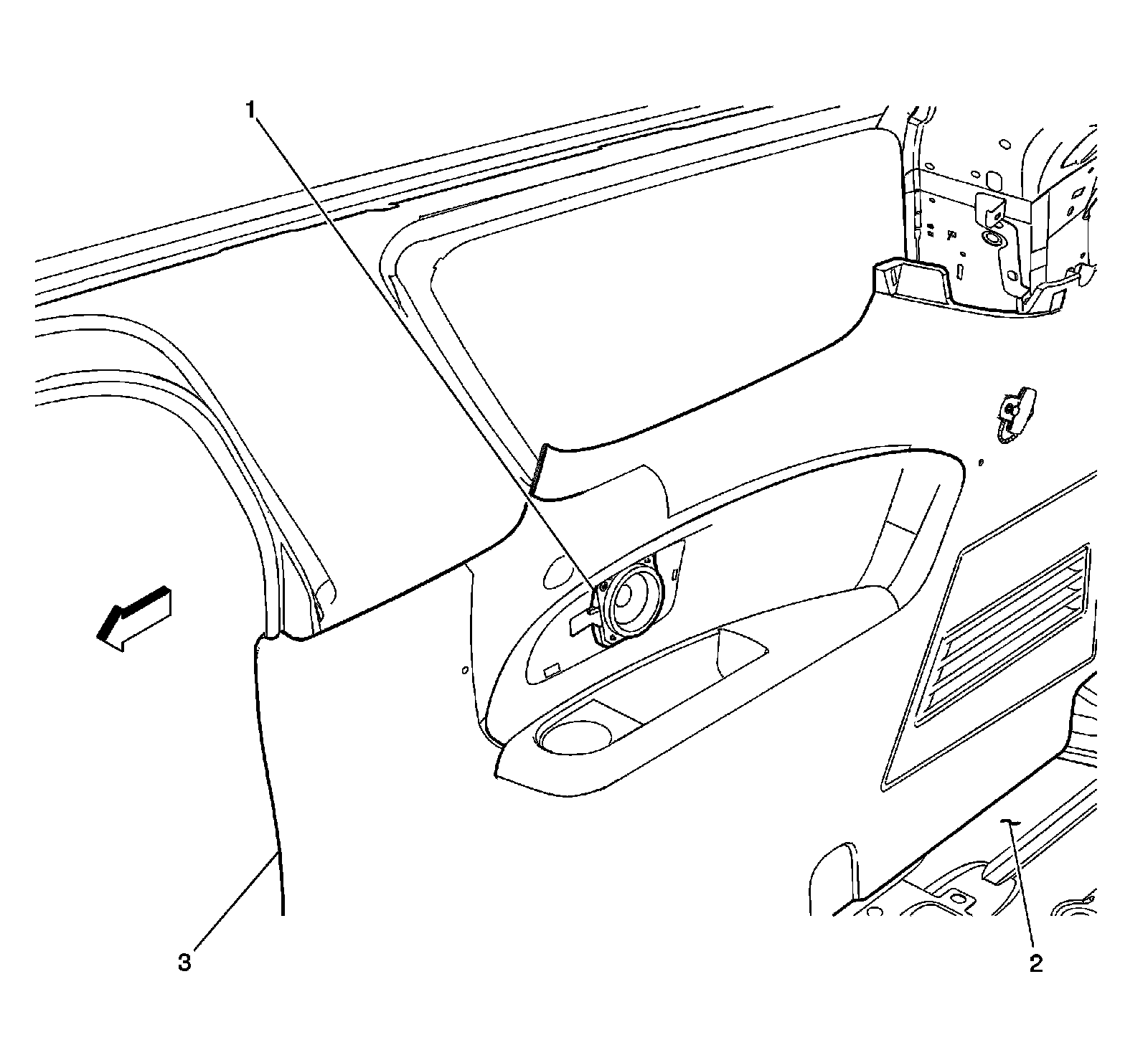

Trim Panel Components - Left Rear




1 - Auxiliary Power Outlet - Rear
2 - LR Trim Panel
3 - Speaker - LR

Trim Panel Components - Right Rear




1 - Speaker - RR (UQA/UQ6/UQ8)
2 - Rear Floor Panel
3 - Trim Panel - RR
