Ignition Coil(s) Replacement - Bank 1



IGNITION COIL REPLACEMENT - BANK 1

REMOVAL PROCEDURE




1. Remove the upper intake manifold.

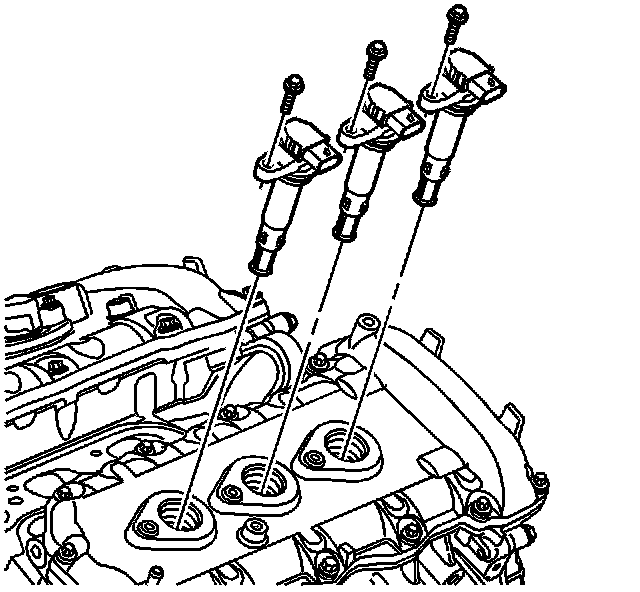

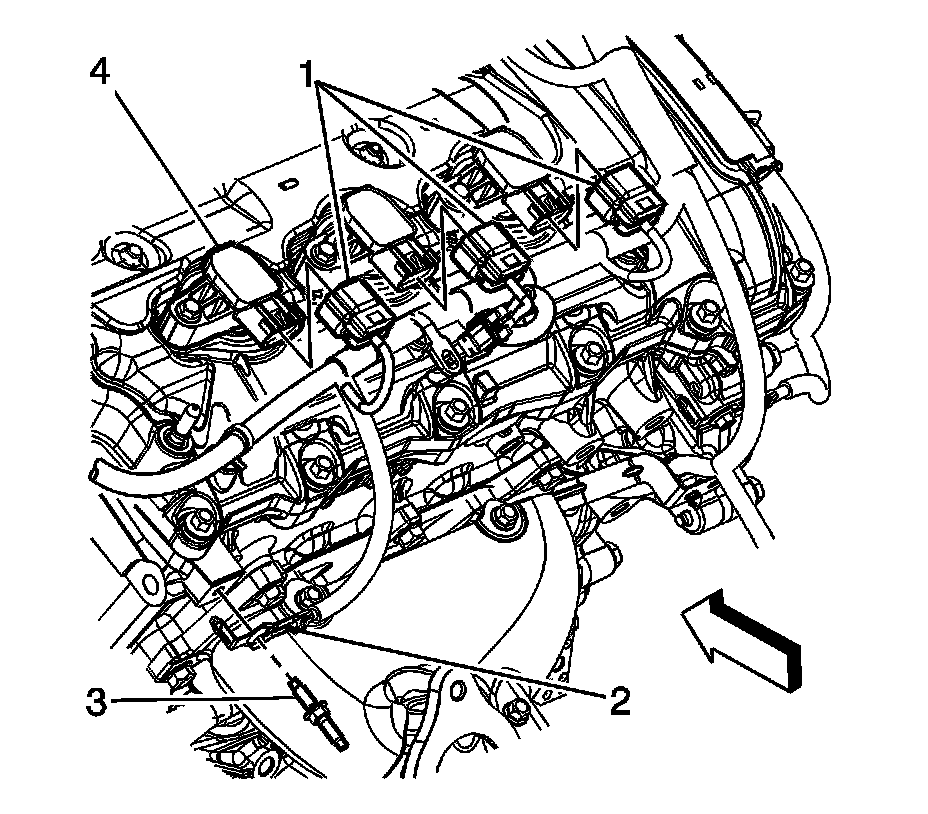

2. Disconnect the engine wiring harness electrical connector(s) (1) from the ignition coil(s) (4).




3. Remove the ignition coil bolt(s).
4. Remove the ignition coil(s).

INSTALLATION PROCEDURE




1. Install the ignition coil(s).

2. NOTE: Refer to Fastener Notice.

Install the ignition coil bolt(s).

Tighten the bolt(s) to 10 N.m (89 lb in).




3. Connect the engine wiring harness electrical connector(s) (1) to the ignition coil(s) (4).
4. Install the upper intake manifold.
