Intake Manifold Cover Replacement



Intake Manifold Cover Replacement

Removal Procedure

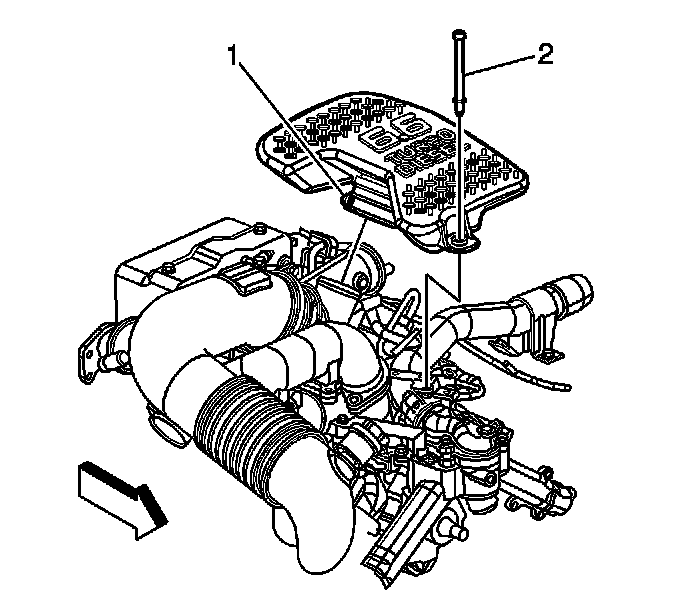

1. Loosen the intake manifold cover clamp (1) at the resonator.
2. Loosen the intake manifold cover bolt (2).
3. Remove the intake manifold cover.

Installation Procedure




1. Install the intake manifold cover.
2. Tighten the intake manifold cover bolt (2) until snug.

Notice: Refer to Fastener Notice.

3. Tighten the intake manifold cover clamp (1) at the resonator.

Tighten the clamp to 6 N.m (53 lb in).
