Energy Storage Box (HP2)



Hybrid Controls Component Views

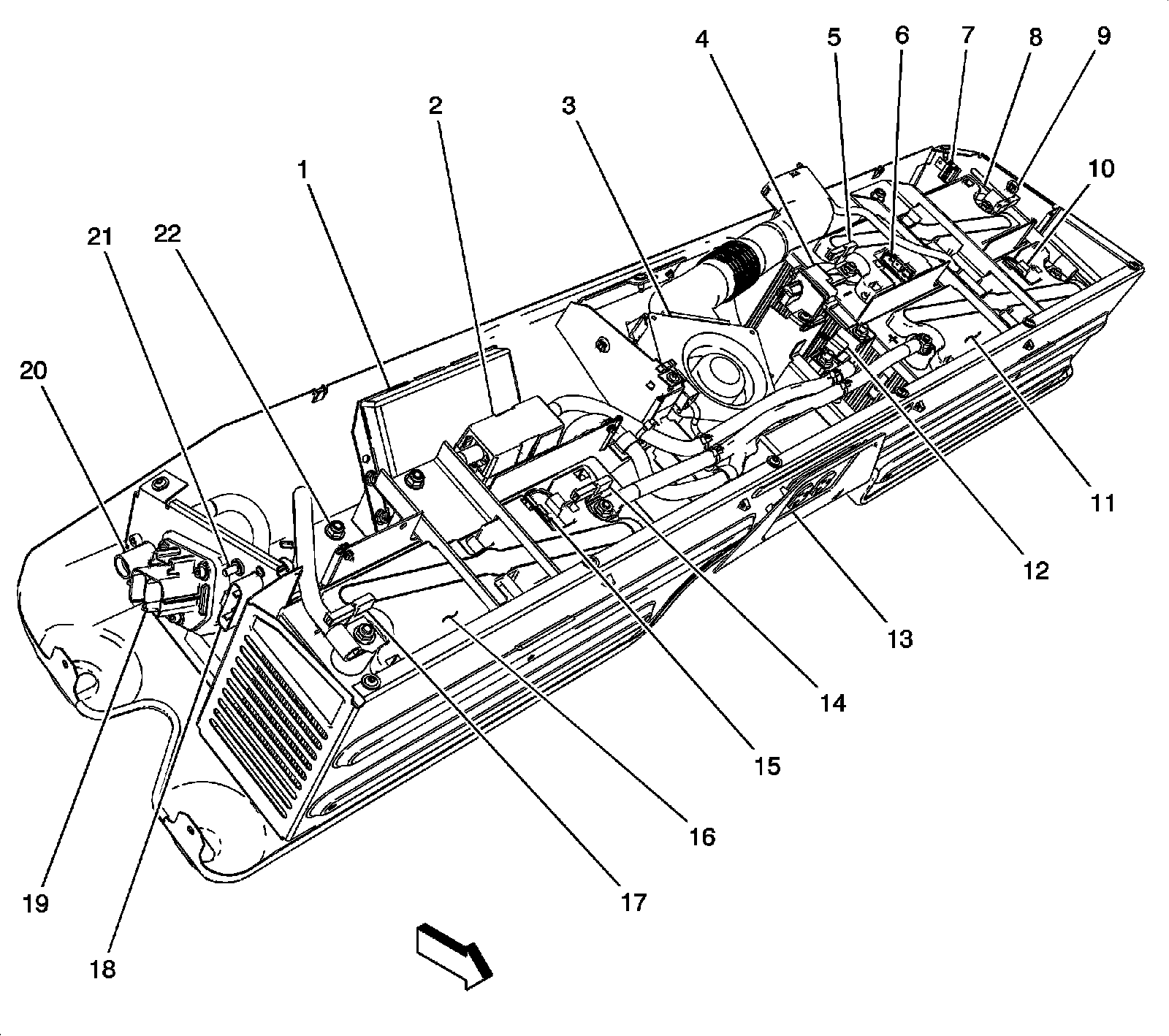

Energy Storage Box (HP2)




1 - Energy Storage Control Module (ESCM)
2 - 400A Fuse Holder
3 - Energy Storage Box (ESB) Fan
4 - Battery Cut Off Switch
5 - Voltage Sensor - 1
6 - Temperature Sensor - Battery 1
7 - C340
8 - Battery 1
9 - Voltage Sensor - 2
10 - Temperature Sensor - Battery 2
11 - Battery 2
12 - Current Sensor
13 - Auxiliary Power Outlet
14 - Voltage Sensor - 3
15 - Temperature Sensor - Battery 3
16 - Battery 3
17 - Voltage Sensor - 4
18 - Auxiliary Power Outlet Connector
19 - C341
20 - Service Disconnect Switch
21 - G311
22 - G310
