Installation
VentilatorInstallation 1.

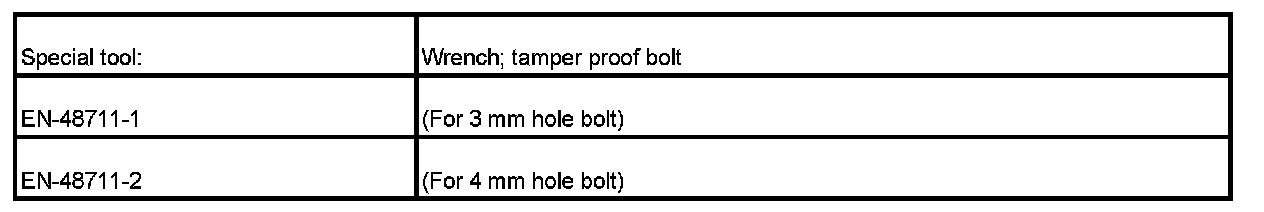

Install the ventilator. Use EN-48711-2 to tighten the bolts to the specified torque.
Tightening torque: 21 N.m (15 lb.ft)
2.
Install the ventilator bracket. Use EN-48711-2 to tighten the bolts to the specified torque.
Tightening torque: 21 N.m (15 lb.ft)
3.
Install the
PCV rubber hose. Use EN-48711-1 to tighten the bolts to the specified torque.
Tightening torque: 9 N.m (78 lb.in)
