Trailer Hitch Platform Replacement

Trailer Hitch Platform Replacement

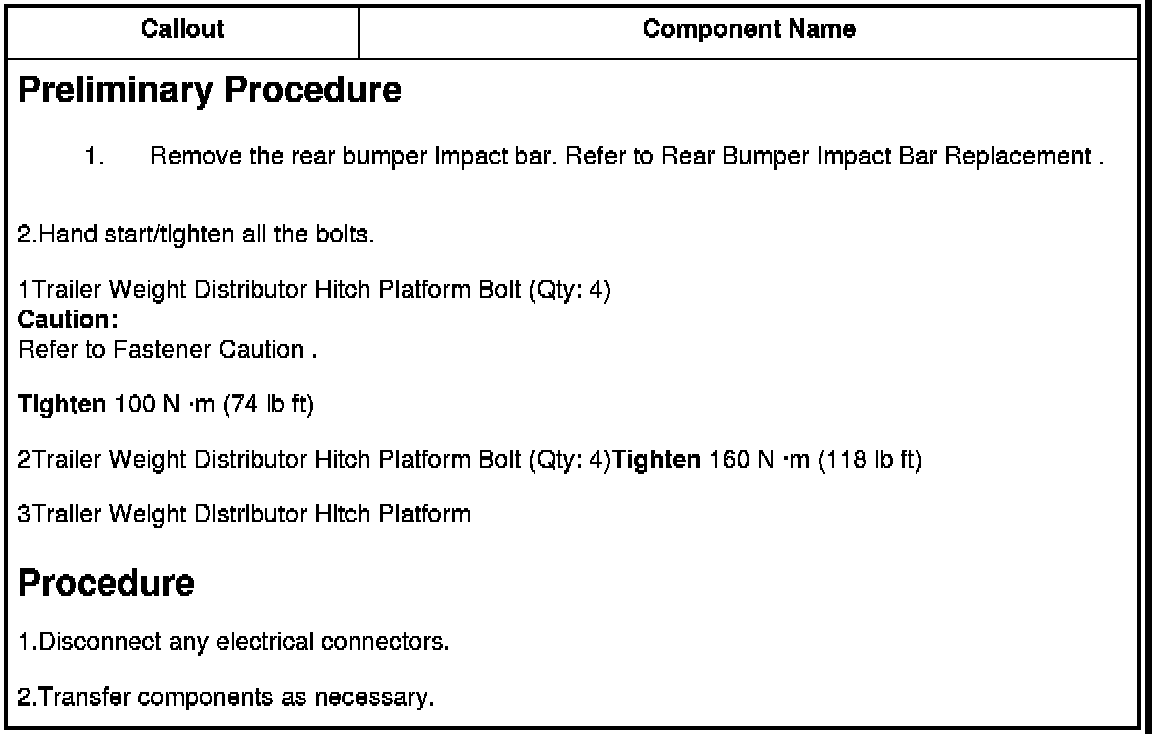

2.Hand start/tighten all the bolts.

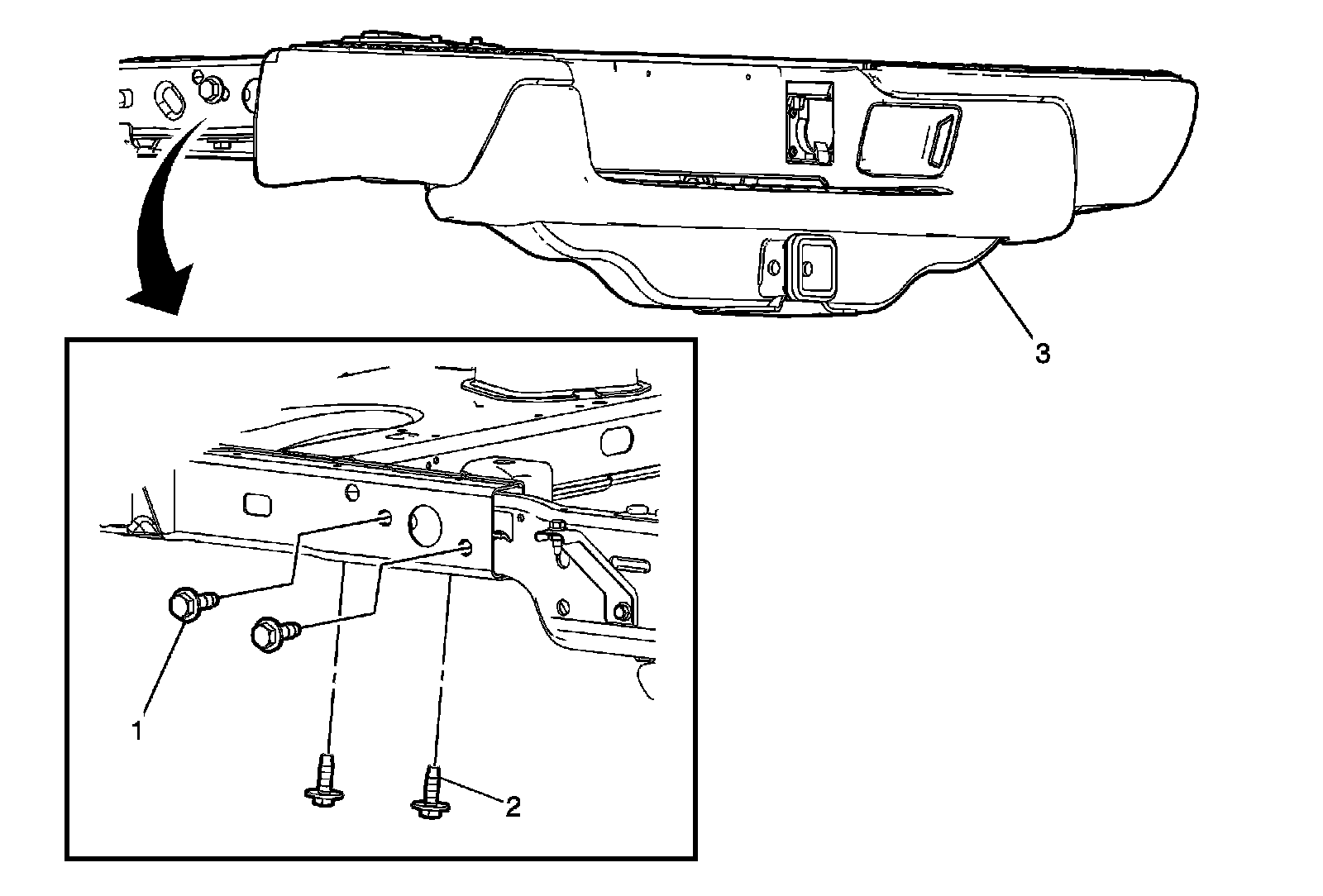

1Trailer Weight Distributor Hitch Platform Bolt (Qty: 4)
Caution:Refer to Fastener Caution .
Tighten 100 N �m (74 lb ft)

2Trailer Weight Distributor Hitch Platform Bolt (Qty: 4)Tighten 160 N �m (118 lb ft)

3Trailer Weight Distributor Hitch Platform

Procedure

1.Disconnect any electrical connectors.

2.Transfer components as necessary.
