Rear Floor Air Outlet Replacement




Rear Floor Air Outlet Replacement

Removal Procedure




1. Remove the front seats. Refer to Driver or Passenger Seat Replacement (Driver or Passenger Seat Replacement).
2. Remove the floor console. Refer to Front Floor Console Replacement (Front Floor Console Replacement).
3. Partially remove the floor carpet from the front footwells to the B-pillars. Refer to Front Floor Panel Carpet Replacement (Front Floor Panel Carpet Replacement).

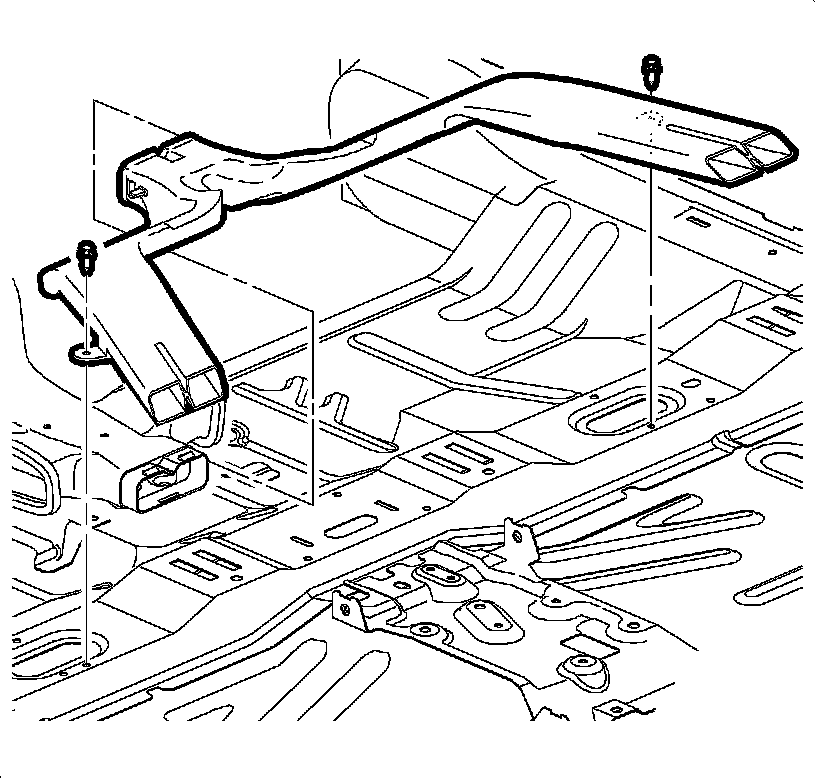

4. Remove the rear floor air outlet push pins from the floor pan.
5. Remove the rear floor air outlet from the floor pan.

Installation Procedure




1. Install the rear floor air outlet to the floor pan.
2. Install the rear floor air outlet push pins to the floor pan.
3. Install the floor carpet to the B-pillars and the front footwells. Refer to Front Floor Panel Carpet Replacement (Front Floor Panel Carpet Replacement)
4. Install the floor console. Refer to Front Floor Console Replacement (Front Floor Console Replacement).
5. Install the front seats. Refer to Driver or Passenger Seat Replacement (Driver or Passenger Seat Replacement).
