Console Replacement (Small w/Manual Transmission)

Console Replacement (Small w/Manual Transmission)

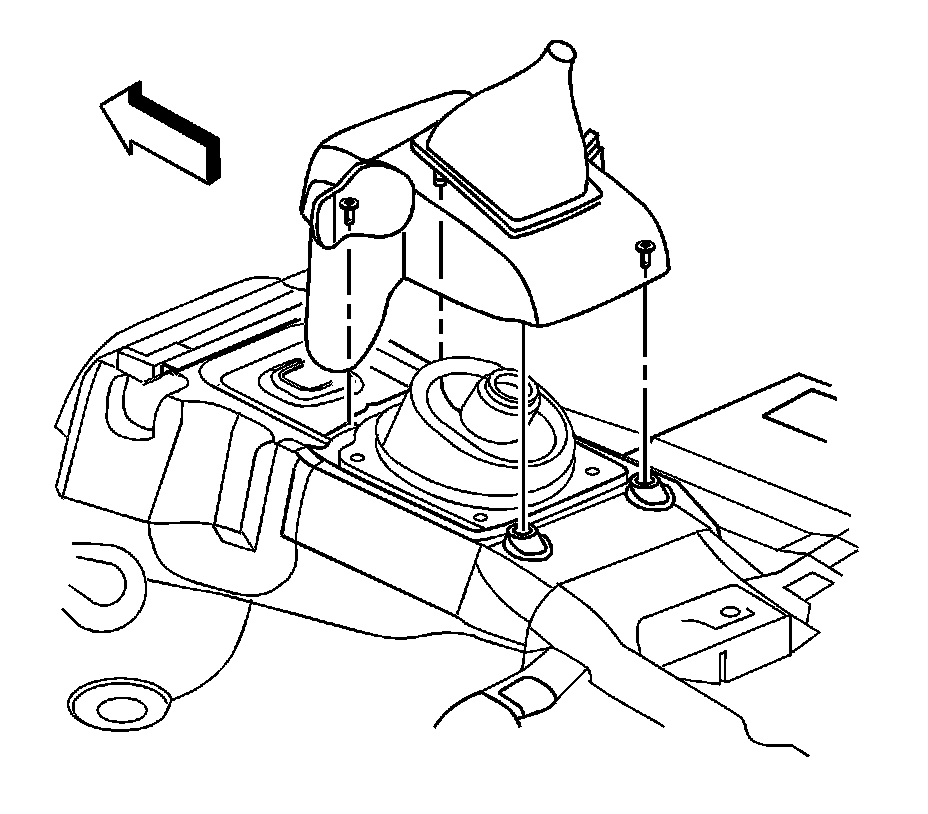

Removal Procedure




1. Release the retaining strips on the shift lever boot.
2. Remove the inside rear seat track bolts on both front seats.
3. Lift up on the console to release the 4 retainers.
4. Remove the console from the vehicle.

Installation Procedure




1. Position the console to the floor panel.
2. Ensure the retainers are indexed to the corresponding holes in the floor panel.
3. Push downward on the console seating the retainers.

Caution: Refer to Fastener Caution Fastener Caution.

4. Install the seat track bolts on both front seats. Tighten the bolts to 53 Nm (39 lb ft).
5. Attach the retaining strips on the shift lever bezel.
