69. Flywheel Locator Installation
Flywheel Locator InstallationSpecial Tools *
J 45949 Pilot Bearing and Flywheel Locator Installer
*
J 8433 Two Jaw Puller
1.

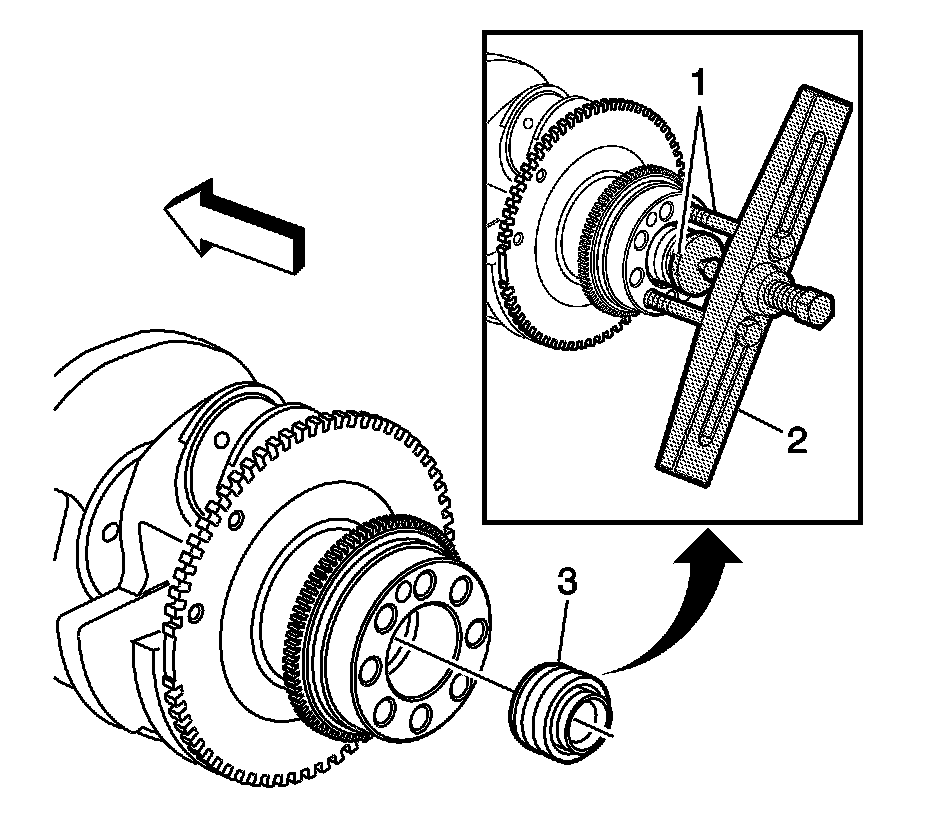

Install the flywheel locator (3) into the
crankshaft using J 8433 (2) and J 45949 (1).
2.
Remove J 8433 (2) and J 45949 (1).
