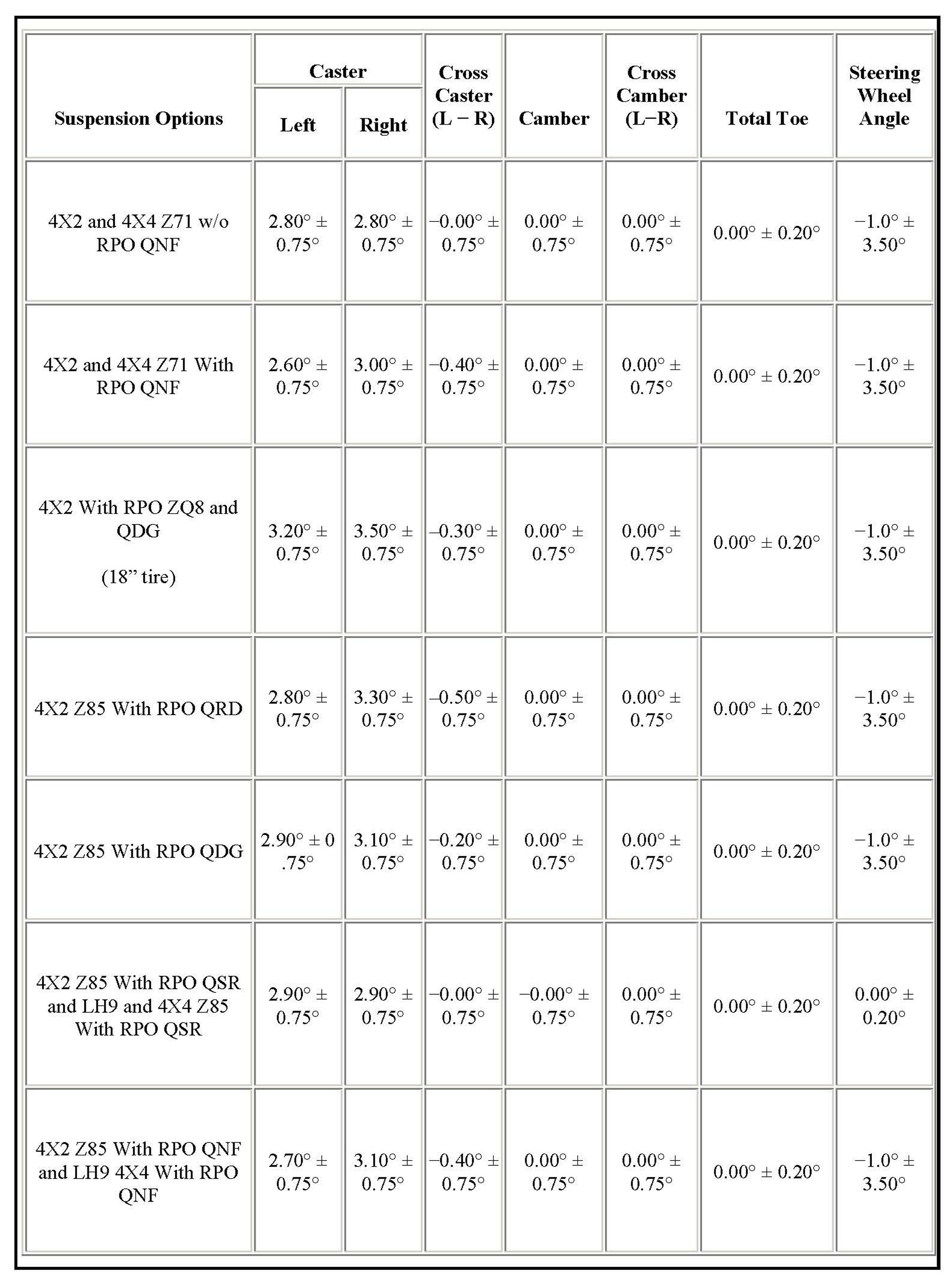

Wheel Alignment Specifications

Wheel Alignment Specifications

RPO LH9 Engine - Gas, 8 CYL, 5.3L, SFI, E85, MAX, ALUM, GM

RPO QDG Tire All - P235/50R18-97W BW R/PE ST TL HWY

RPO QNF Tire All - P235/75R16-106S BW R/PE ST TL ALS

RPO QRD Tire All - P215/70R16-99S BW PE/ST TL ALS

RPO QSR Tire All - P235/75R16-106S BW TL OOR

RPO Z71 Chassis Package - Off Road

RPO Z85 Chassis Package - Increased Capacity

RPO ZQ8 Chassis Package - Sport
