Tightening Specifications

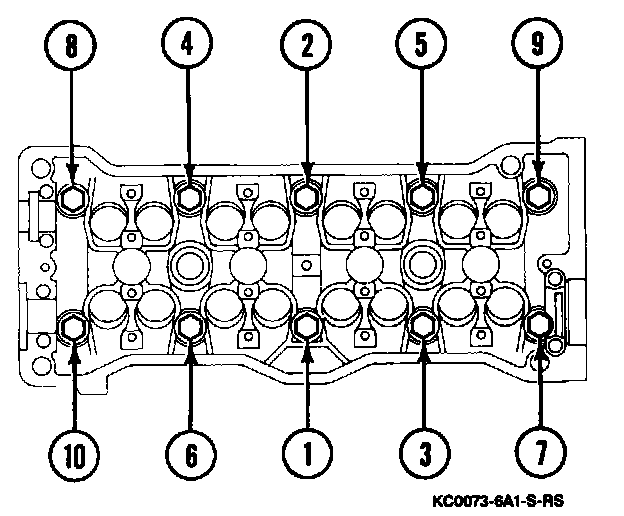

Cylinder Head Bolt Tightening Sequence:

Cylinder head bolts 60 N.m (44 lb.ft.)
Ten cylinder bead bolts in several passes and in the proper sequence.

Cylinder head cover cap nuts 20 N.m (15 lb.ft.)

Exhaust pipe bolts 25 N.m (18 lb.ft.)

Right engine mount through bolt 87 N.m (64 lb.ft.)

Rear transaxle mount-to-main crossmember nuts 61 N.m (45 lb.ft.)

Center transaxle mount-to-center crossmember nuts 61 N.m (45 lb.ft.)
