Charging System: Description and Operation

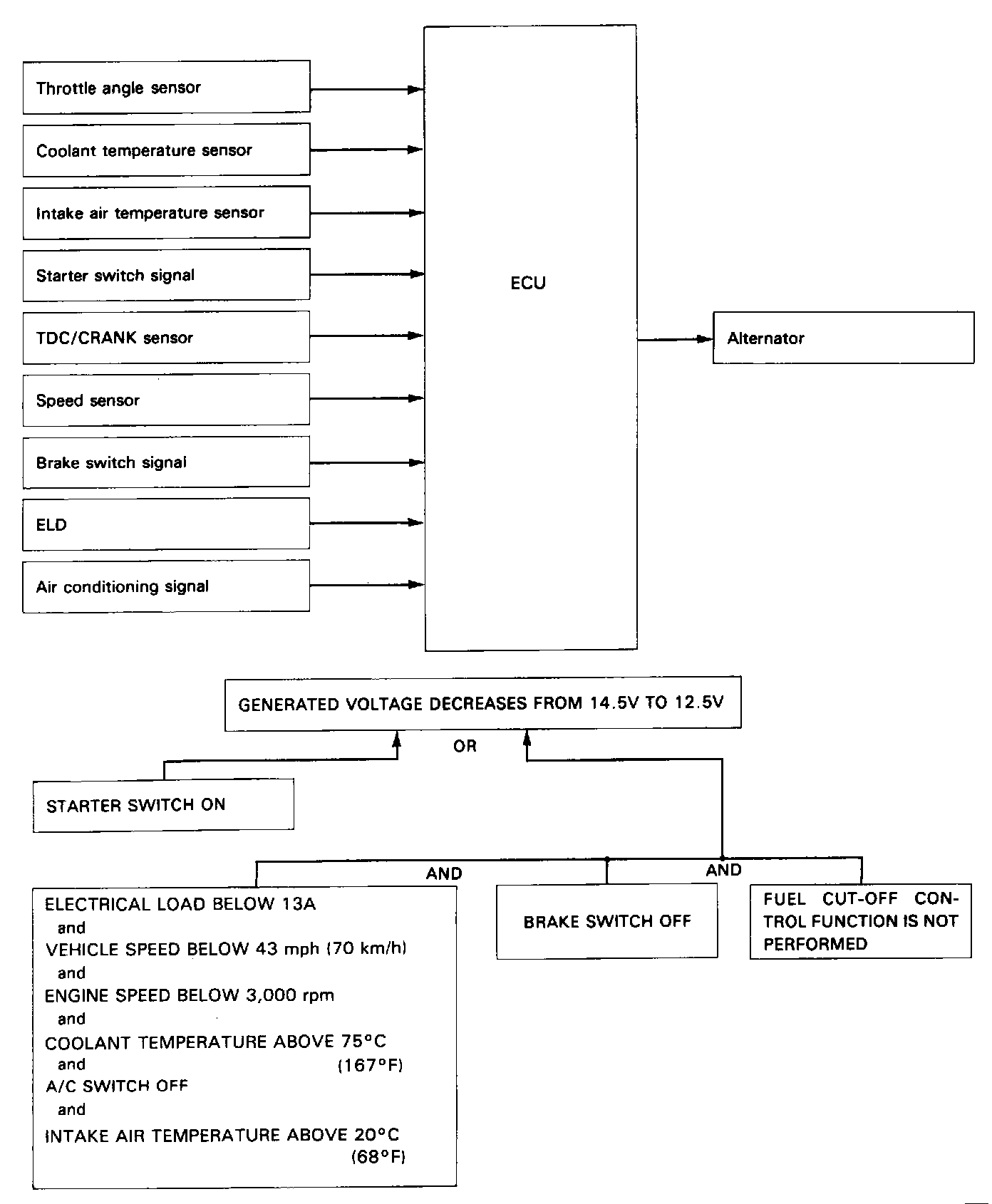

To improve the fuel economy, this system changes the voltage generated at the alternator in accordance with the driving conditions.
