Sanden Compressor

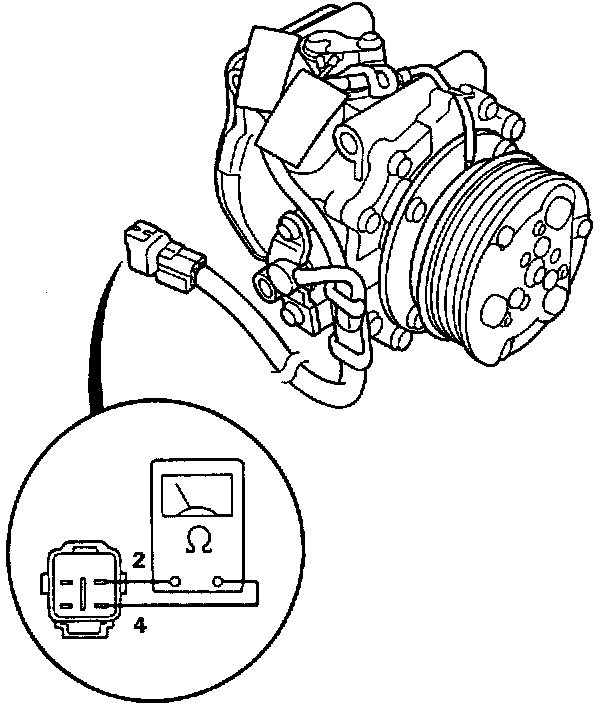

Thermal Protector Inspection Check for continuity between 2 and 4 terminals of the
thermal protector connector.
There should be continuity.
If no continuity, replace the
thermal protector.
NOTE: Replace the pick-up sensor and
thermal protector as a set.
