Timing Belt: Testing and Inspection

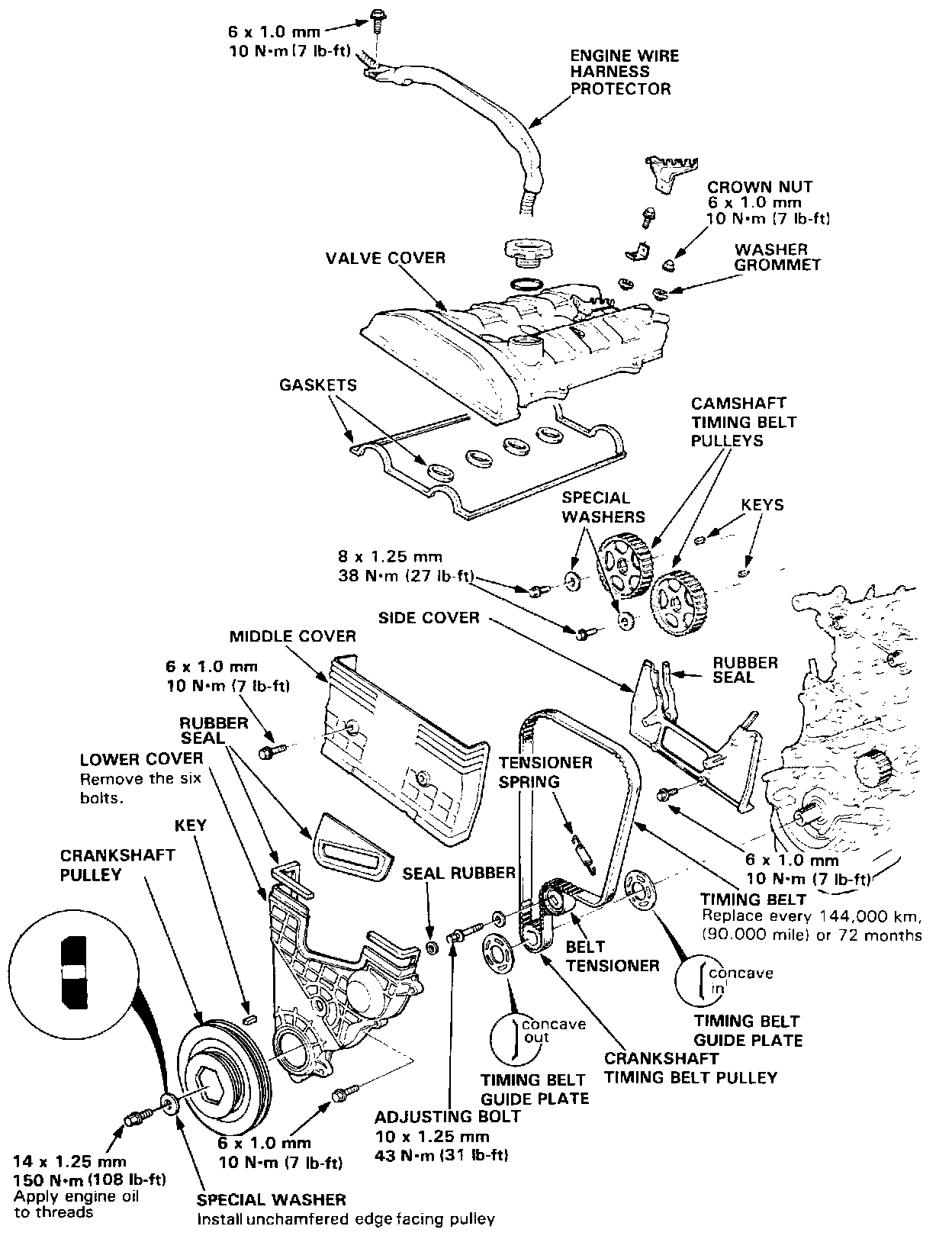

ILLUSTRATED INDEX

TIMING BELT INSPECTION

NOTE:
- Replace belt if oil soaked.
- Remove any oil or solvent that gets on the belt.
- If pulley bolt broke loose while turning crank, retorque:

Specifications: 150 Nm (108 ft.lbs.)
