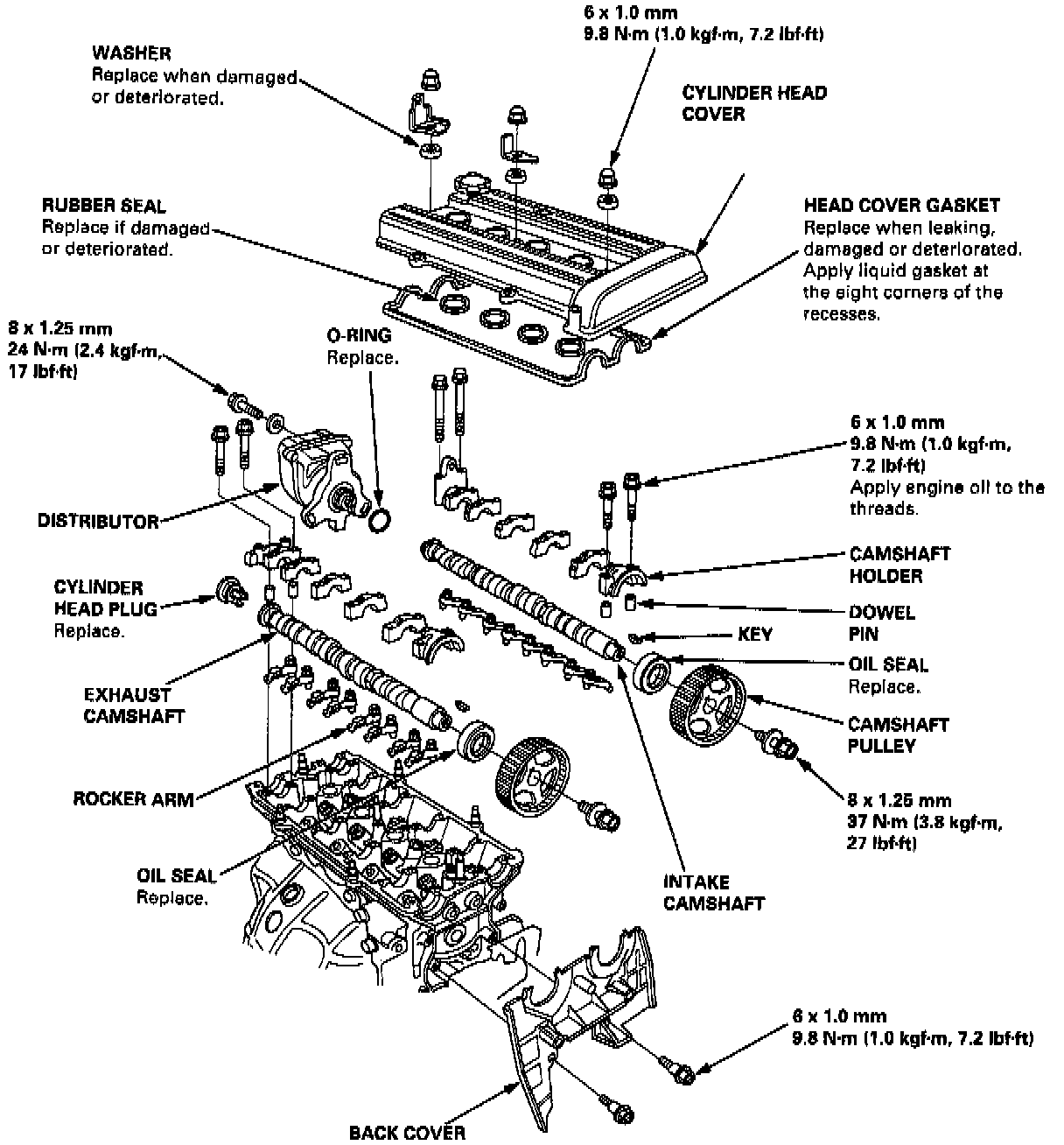

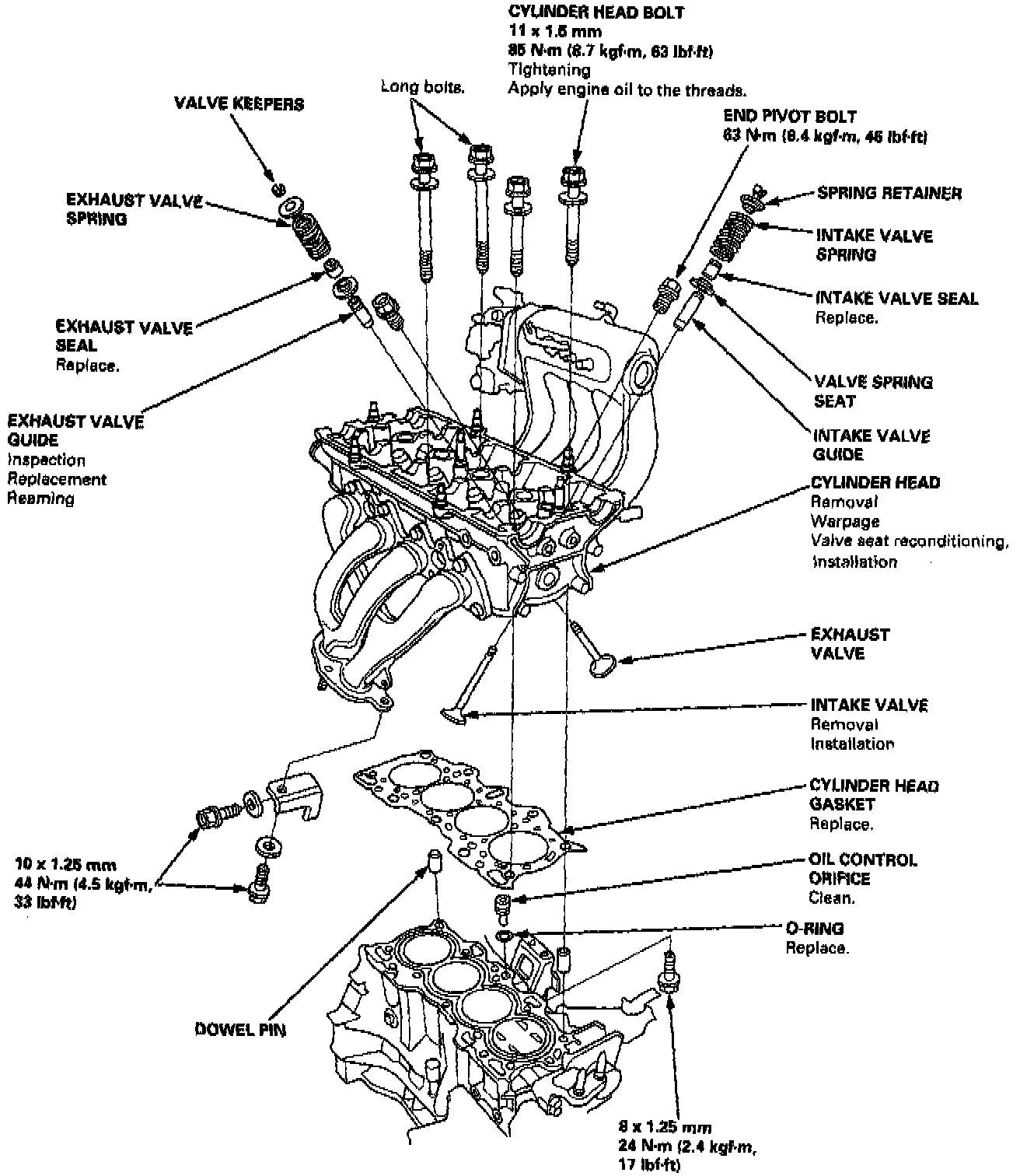

Cylinder Head Assembly
To avoid damage, wait until the engine coolant temperature drops below 100°F (38°C) before removing the cylinder head.
When handling a metal gasket, take care not to fold it or damage the contact surface.
OIL: Prior to reassembling, clean all the parts in solvent, dry them and apply lubricant to any contact parts.
