Home >> Honda >> 2000 >> Civic DX Coupe L4-1590cc 1.6L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

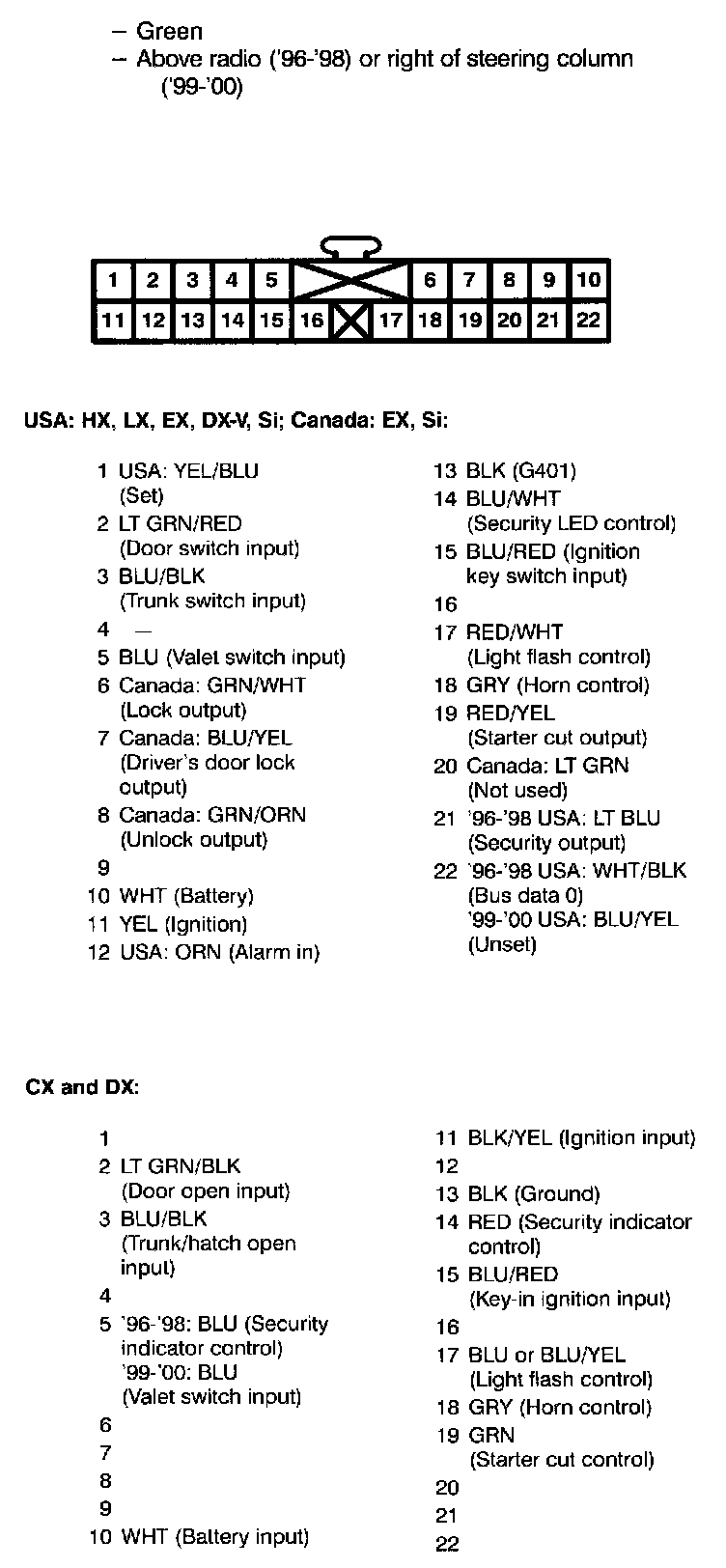

Security Control Unit:
