Headlamp: Service and Repair

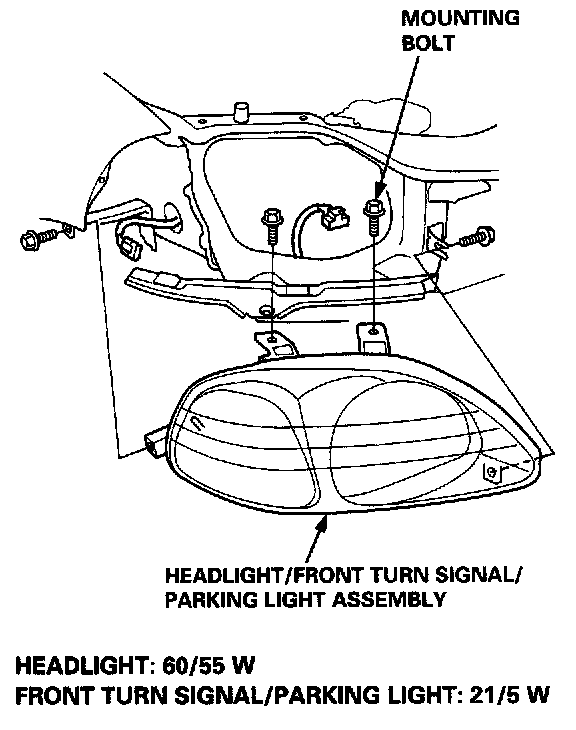

Headlights/Front Turn Signal/Parking Lights Replacement


CAUTION: Halogen headlights become very hot in use; do not touch them or the attaching hardware immediately after they have been turned off.

1. Remove the front bumper.
2. Remove the mounting bolts.




3. Disconnect each connector, then remove the headlight/front turn signal/parking light assembly.
