All Except SOHC VTEC-E Manual Transmission

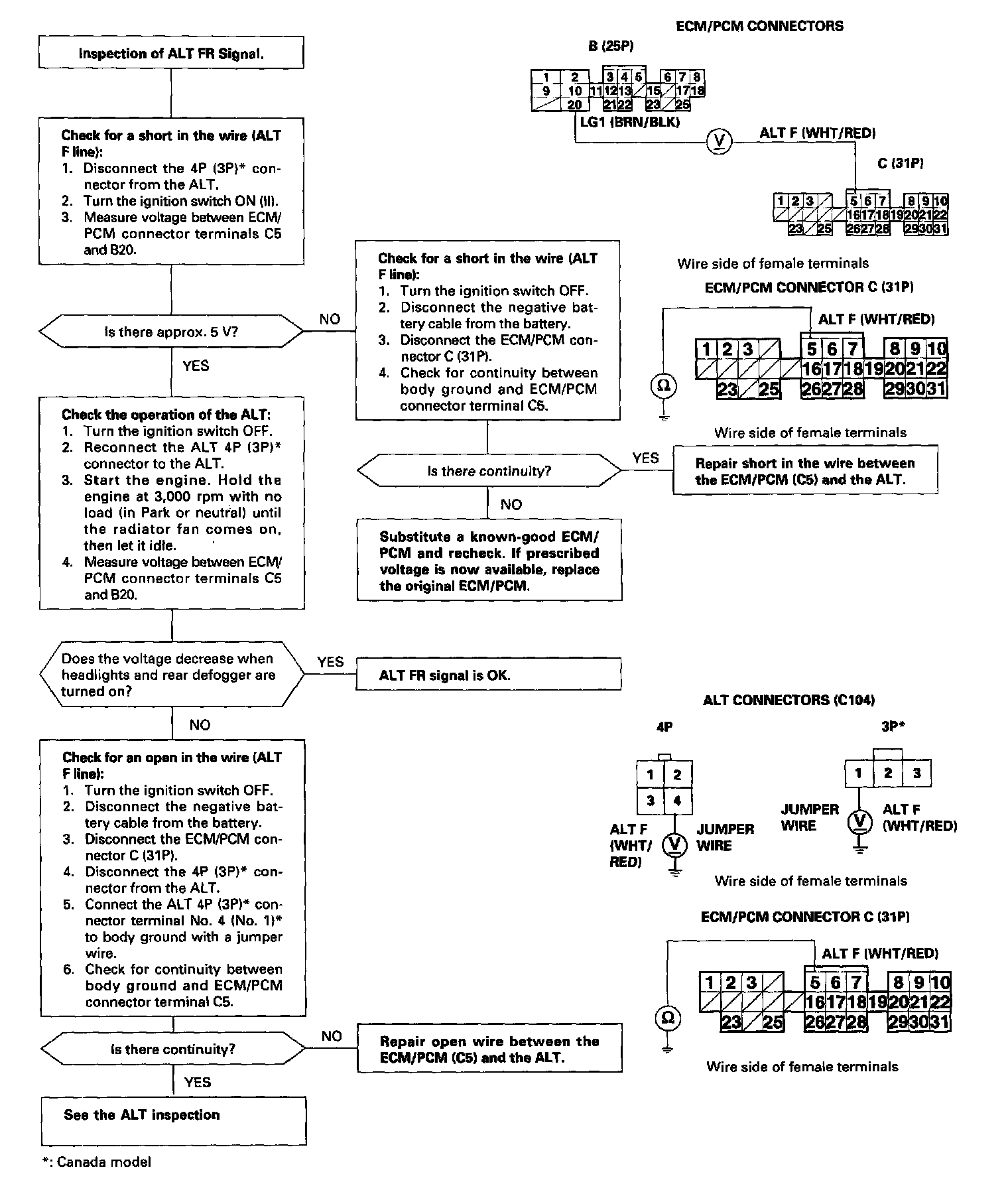

This signals the ECM/PCM when the Alternator (ALT) is charging.
