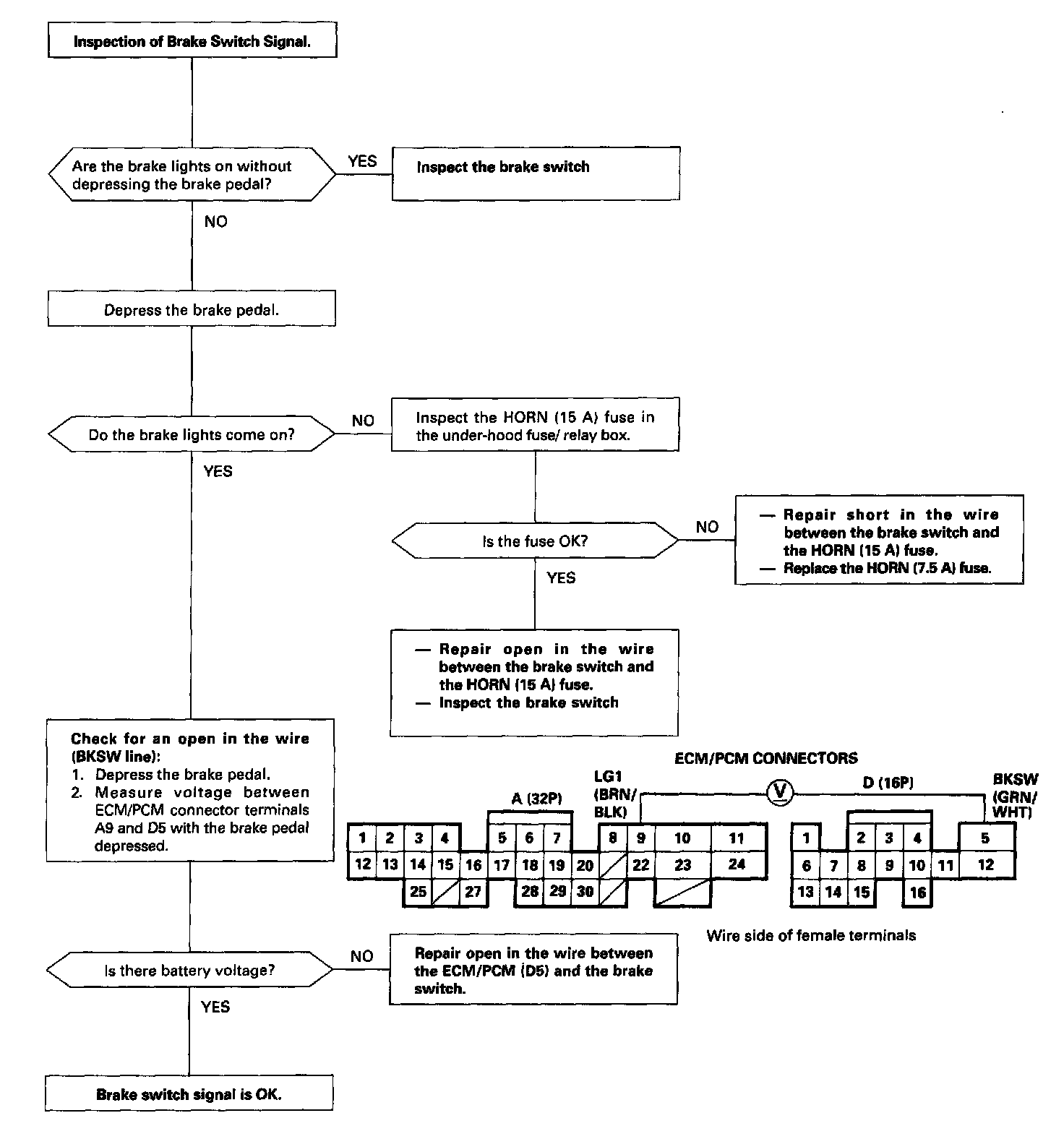

Brake Switch Signal Circuit Troubleshooting
>>
SOHC VTEC-E Manual Transmission
SOHC VTEC-E Manual Transmission
This signals the ECM/PCM when the brake pedal is depressed.
