PSP Switch Signal Circuit Troubleshooting

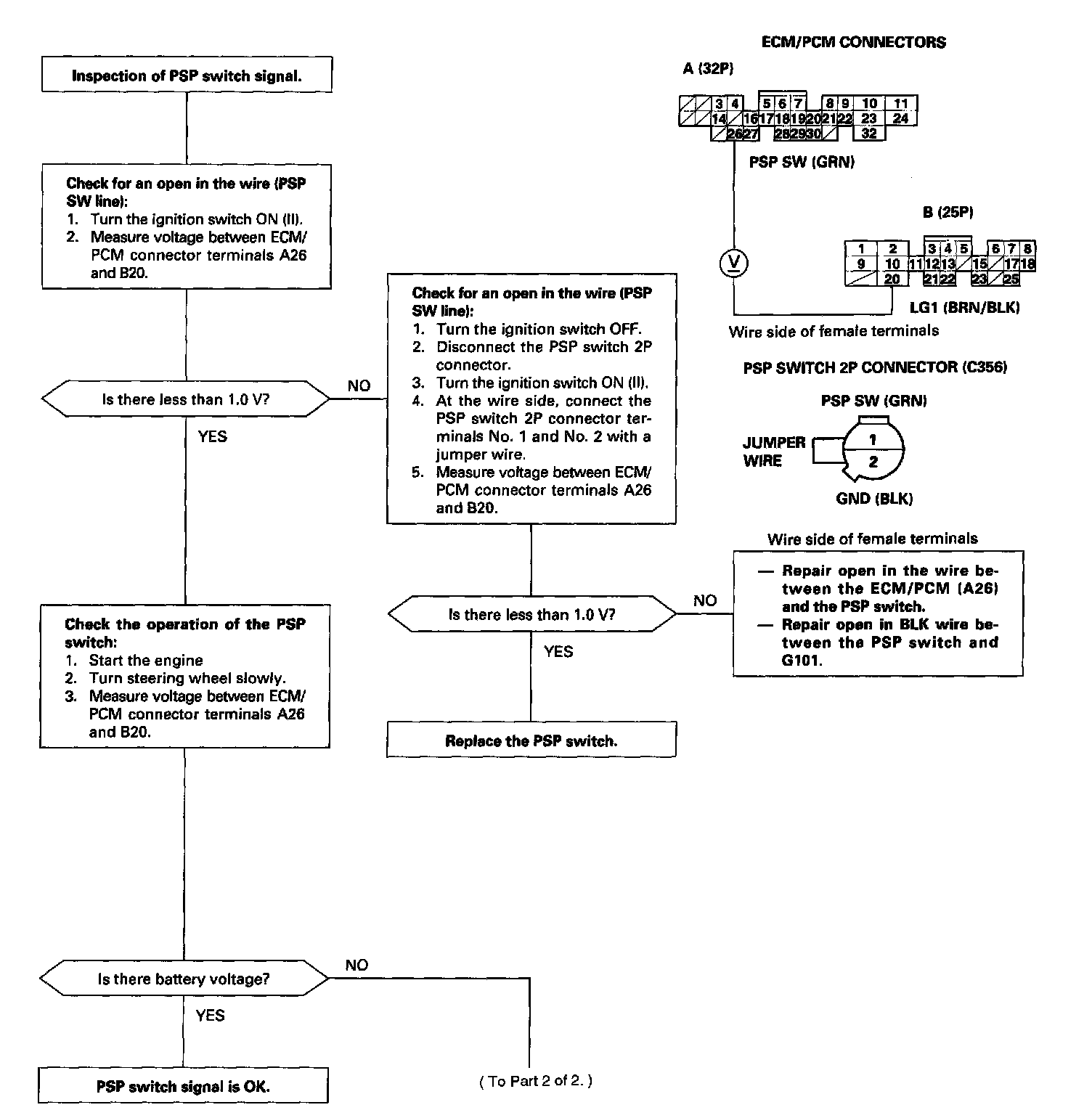

Part 1 Of 2:

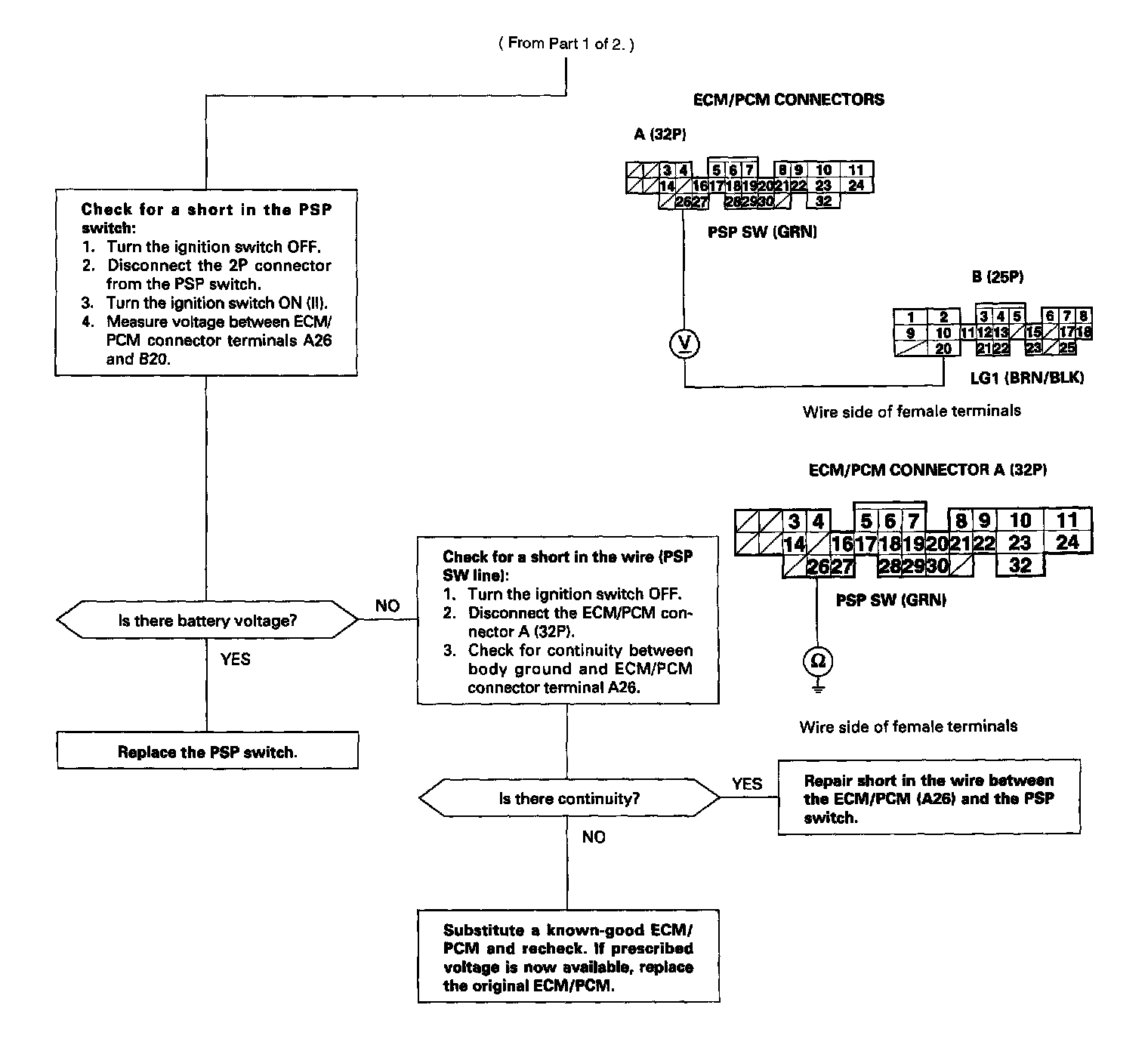

Part 2 Of 2:




This signals the ECM/PCM when the power steering load is high.
