Procedure E: 1997-98 Odysseys

1. Remove the dashboard lower cover, the knee bolster, and the steering column covers (see page 23-65 of the 1995 Odyssey Service Manual).

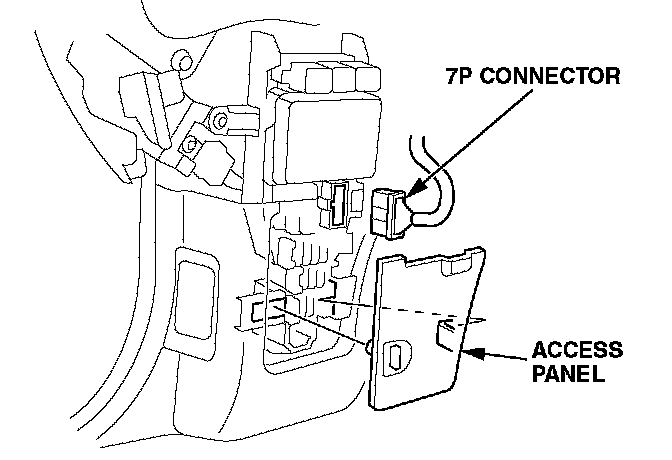

2. Disconnect the ignition switch harness 7P connector from the under-dash fuse/relay box.

3. Note how the ignition (electrical) switch harness routes to the fuse box; you'll need to route the new switch harness the same way.

4. Make sure the ignition switch is turned to LOCK (0).





5. Remove the screws from the electrical switch, then remove and discard the switch and its harness.

6. Install the new electrical switch with the original screws. Route its harness to the fuse box the same way the discarded harness was routed.

7. Connect the 7P connector.

8. Install the steering column covers, the knee bolster, and the dashboard lower cover.

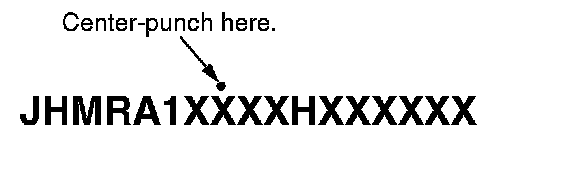

9. Center-punch a completion mark above the eighth character of the engine compartment VIN.
