Transmission Mode Switch: Adjustments

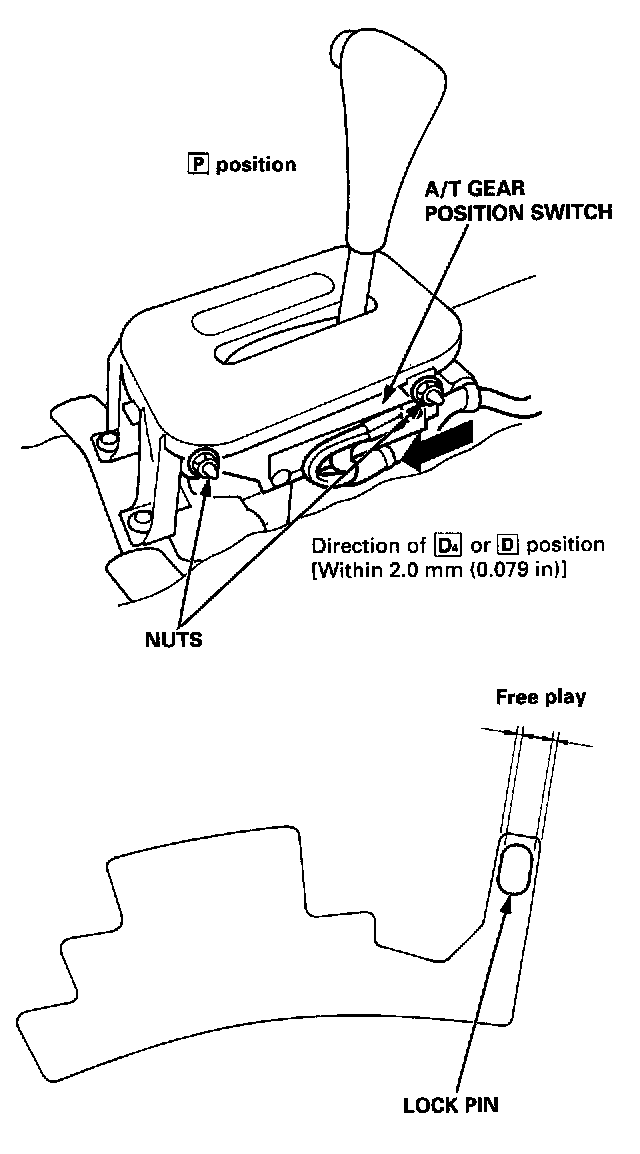

1. Shift to the [P] position, and loosen the nuts.
2. Slide the switch in the direction of [D4] or [D] position [within 2.0 mm (0.079 in.)] so that there is continuity between the No.1 and No.7 terminals in the range of free play of the shift lever.




3. Recheck for continuity between each of the terminals.

NOTE:
- If adjustment is not possible, check for damage to the shift lever detect and/or the bracket. If there is no damage, replace the console switch.
- The engine should start when the shift lever is in position [N] in the range of free play.
