Oil Pan, Engine

Oil Pan

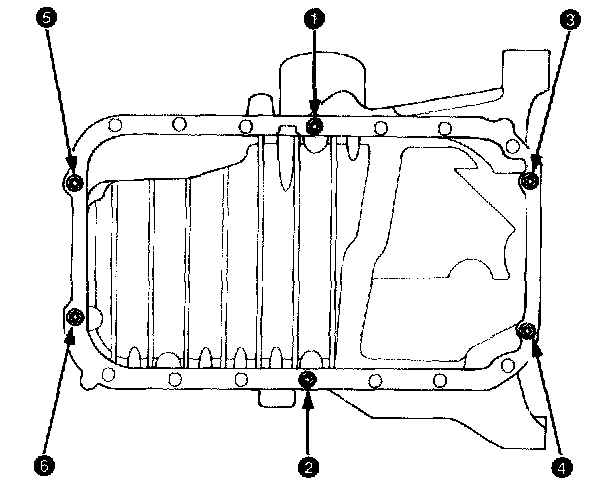

- Tighten the nuts finger-tight at six points as shown above.
- Tighten all bolts and nuts, starting from nut (1), clockwise in three steps.

NOTE: Excessive tightening can cause distortion of oil pan gasket and oil leakage.

Torque: 12 N.m (1.2 kgf.m, 8.7 lbf.ft)
