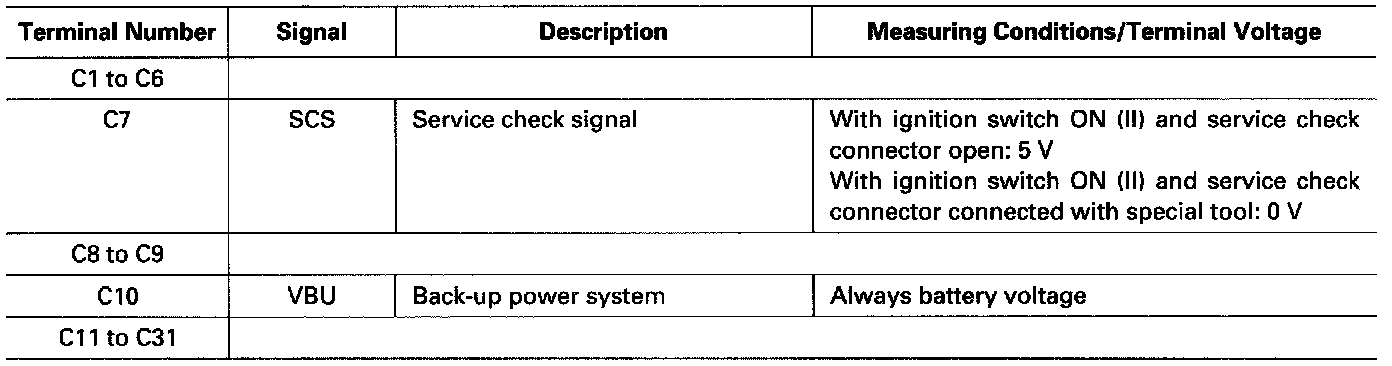

PCM Connector C (31P)

A/T Control System:
The PCM terminal voltage and measuring conditions are shown for the connector terminals that relate to the A/T control system. The other PCM terminal voltage and measuring conditions are described under Computers and Control Systems/Normal Scan Data Values. Testing and Inspection
