System Specifications

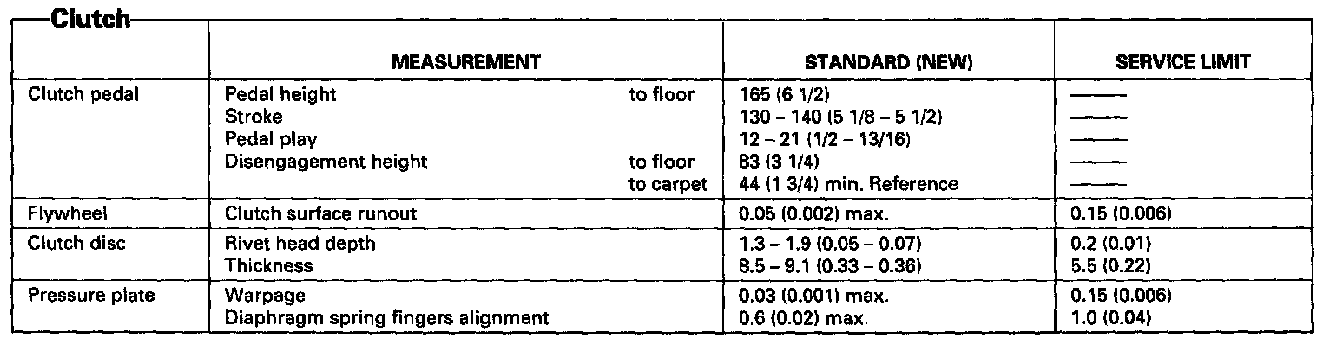

Clutch:

DIMENSIONS
Pressure Plate
Standard (New) 0.03 mm (0.001 inch)
Service Limit 0.15 mm (0.006 inch)
Diaphragm Spring Fingers
Standard (New) 0.6 mm (0.02 inch)
Service Limit 1.0 mm (0.04 inch)

TIGHTENING SPECIFICATIONS
Attaching Bolt 25 Nm (19 ft. lbs.)
