Piston Pin Installation
Piston Pins

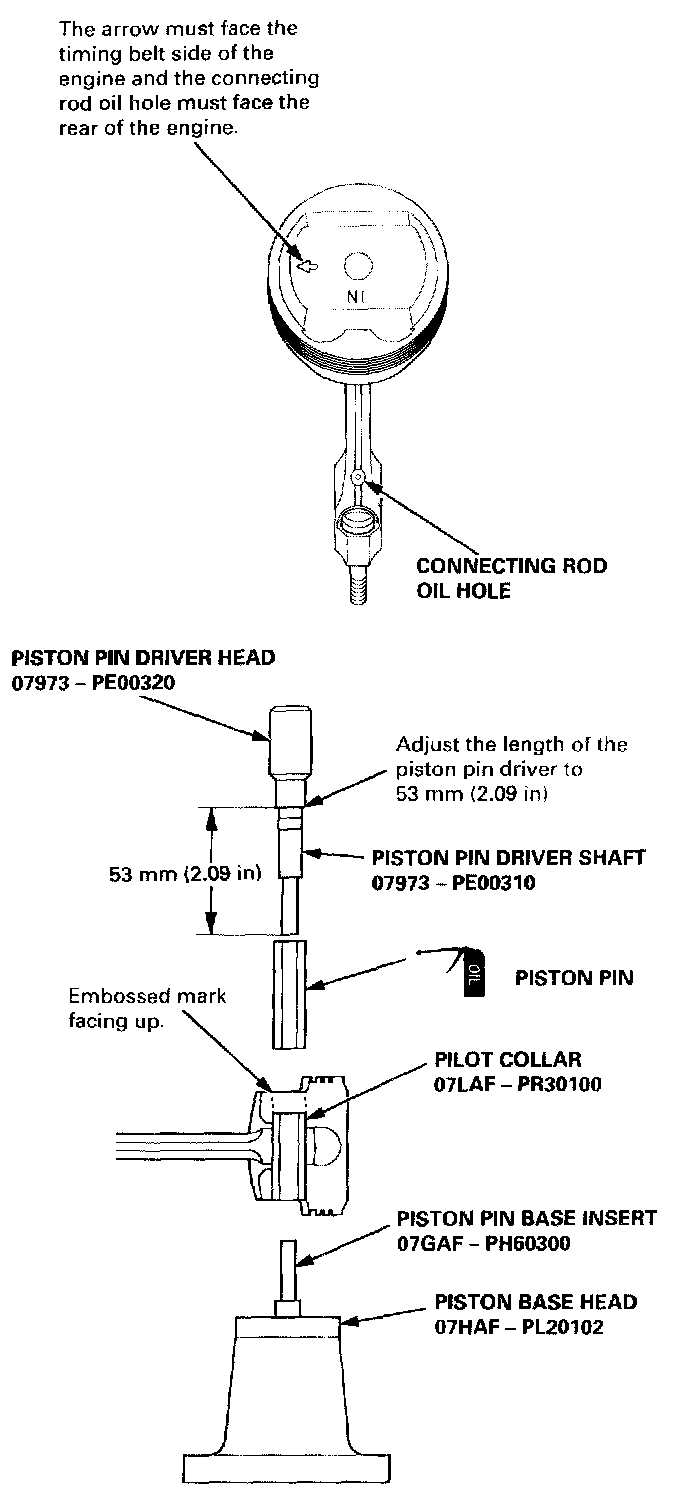

Installation 1.
Use a hydraulic press for installation.
-
When pressing the pin in or out, be sure you position the recessed flat on the
piston against the lugs on the base attachment.
