Ignition Coil: Testing and Inspection

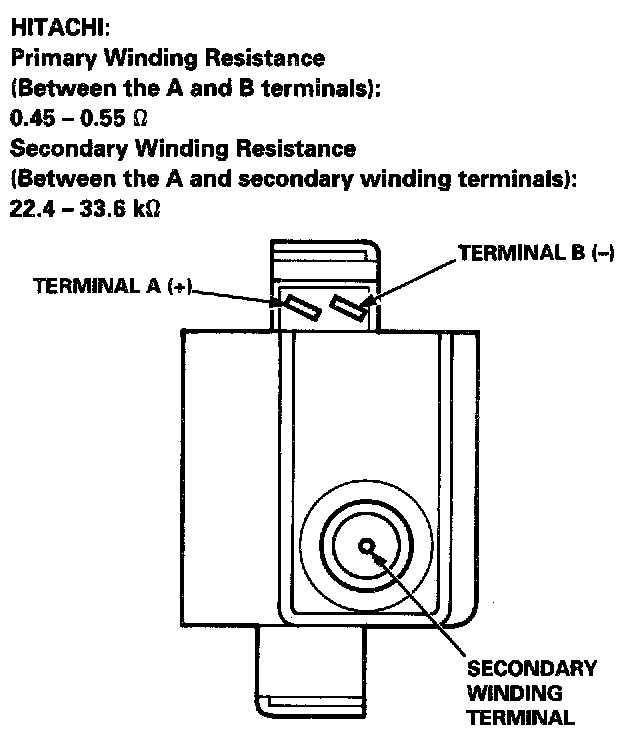

HITACHI:
TEC:
Using an ohmmeter, measure resistance between the terminals. If the resistance is not within specifications, replace the
ignition coil.
NOTE: Resistance will vary with the coil temperature; specifications are at
68 °F (20 °C).
