Camshaft, Engine

TIGHTENING SPECIFICATIONS

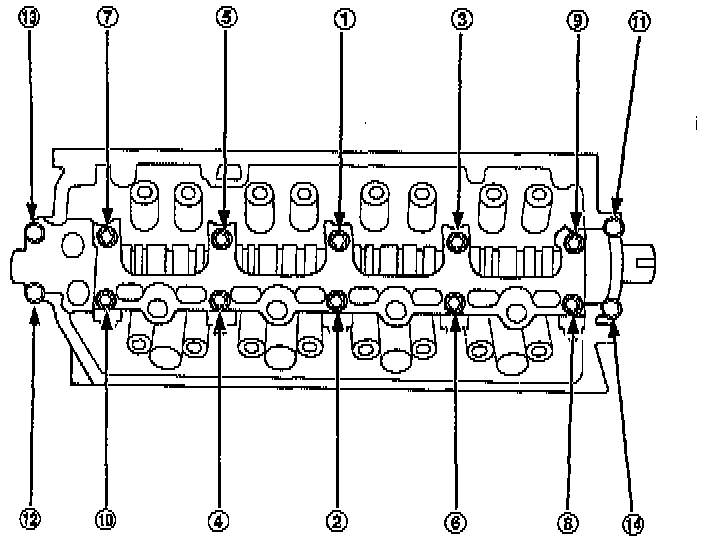

Holder Loosening Sequence





Holder Tightening Sequence
Tighten The 8 mm Bolts To 20 Nm (14 ft. lbs.)
Tighten The 6 mm Bolts To 12 Nm (9 ft. lbs.) [1]

DIMENSIONS
End Play
Standard: 0.05-0.15 mm (0.002-0.006 inch)
Service Limit: 0.5 mm (0.02 inch)
Oil Clearance
Standard: 0.050-0.089 mm (0.002-0.004 inch)
Service Limit: 0.15 mm (0.006 inch)





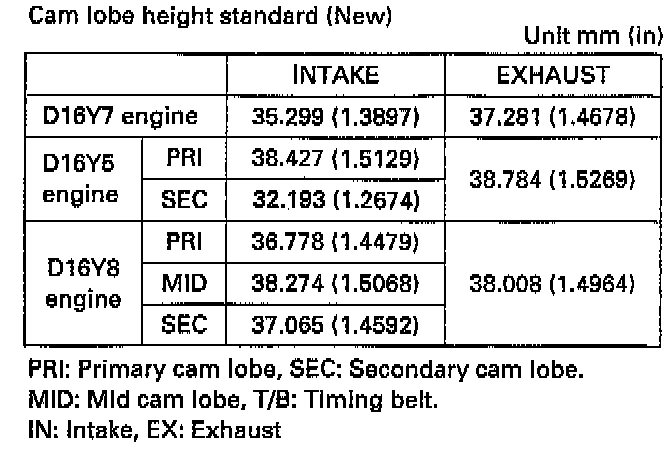

Cam Lobe Height




[1] The 6 mmm bolt are numbers (11), (12), (13), (14).
