Mirror Holder Installation

Mirror Holder Installation

NOTE:
- Take care not to break the mirror.
- Put on gloves to protect your hands.




1. Install the snap rings (A) into the joint pin receptacles (B) on the mirror holder. In case of the new mirror holder, make sure the snap rings are installed properly.




2. Push the joint pins (A) into the actuator (B).

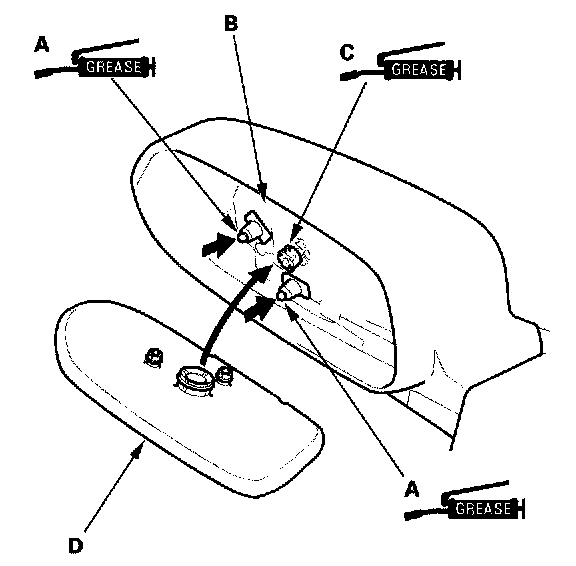

3. Apply multipurpose grease to the pivot (0 and joint pins.
4. Set the mirror holder (D) on the pivot, then carefully push the pivot portion of the mirror holder securely into place.




5. Make sure the actuator joint pins are aligned with the joint pin receptacles (A), and carefully push the mirror holder (B) securely into place.
6. Check the actuator operation.
