Cargo Lamp: Service and Repair

Cargo Area Light Test/Replacement

1. Turn the cargo area light switch OFF.

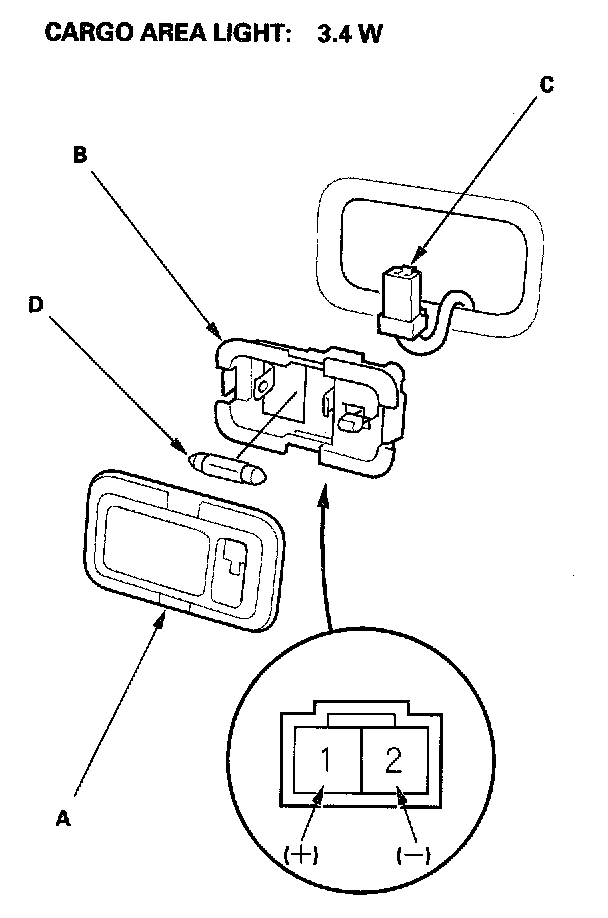

2. Carefully pry off the lens (A) with a small screw driver.
3. Carefully remove the light housing (B).
4. Disconnect the 2P connector (C) from the light.

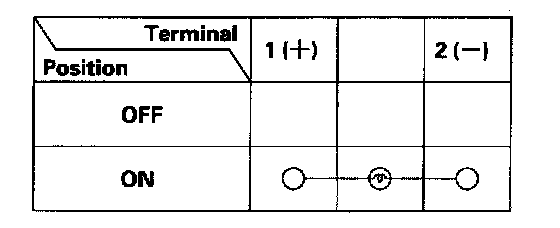

5. Check for continuity between the terminals in each switch position according to the table.
6. If the continuity is not as specified, check the bulb. If the bulb is OK, replace the light.
7. If the continuity check is not as specified, replace the cargo area light.
