Windshield Wiper Motor Replacement

Windshield Wiper Motor Replacement

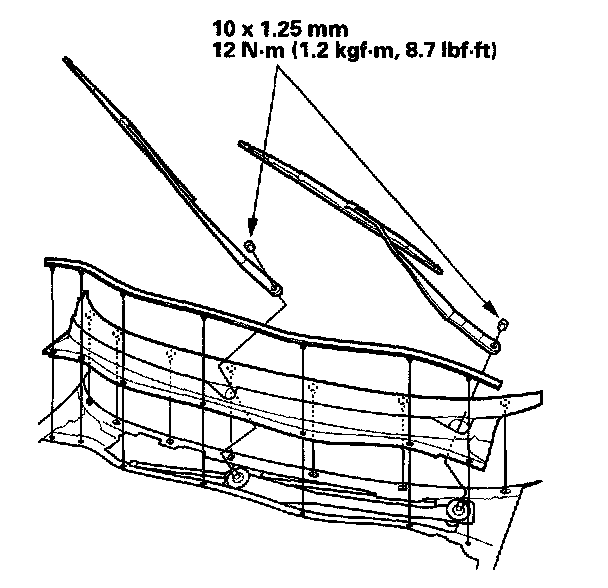

1. Open the hood. Remove the nuts and the windshield wiper arms.
2. Remove the hood seal and cowl cover.

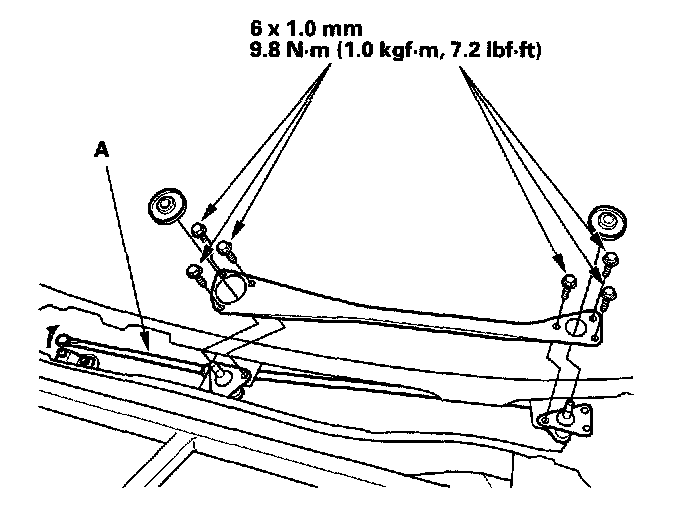

3. Remove the bolts and wiper linkage assembly (A).

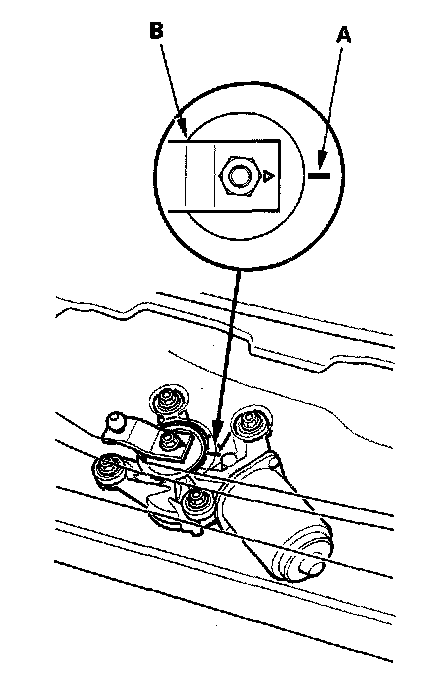

4. Scribe a line (A) across the link (B) and body to show the original adjustment.

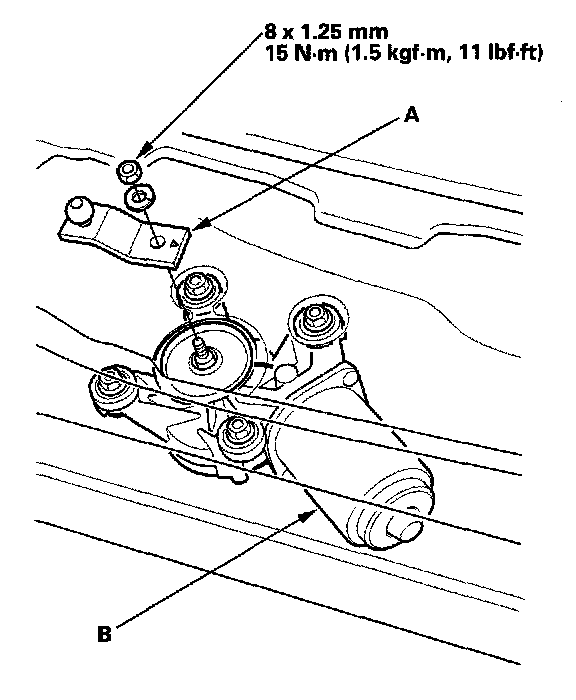

5. Remove the nut and link (A) from the wiper motor (B).

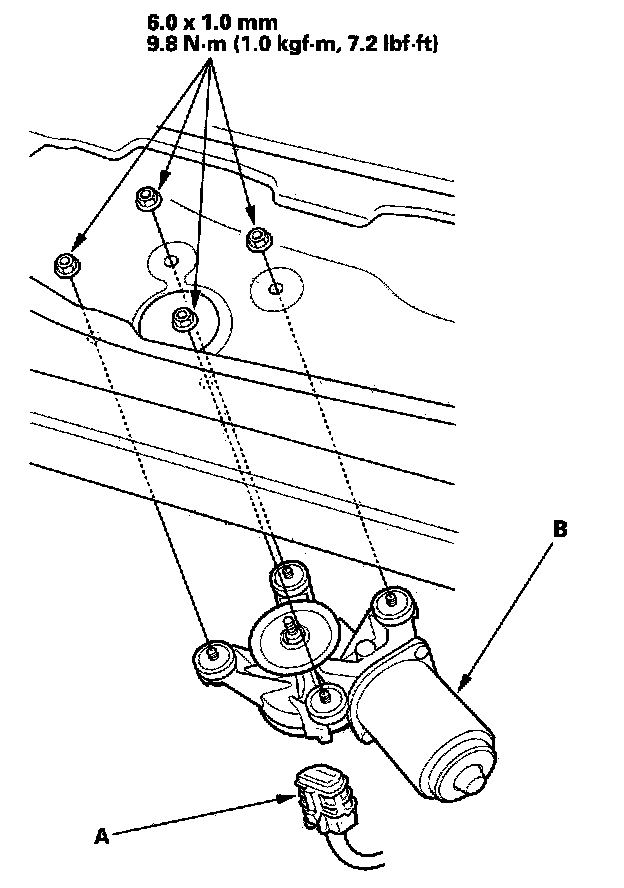

6. Disconnect the 5P connector (A), then remove the four mounting nuts and wiper motor (B).
7. Apply a multipurpose grease to the moving parts and install in the reverse order of removal.
