Navigation Display: Service and Repair

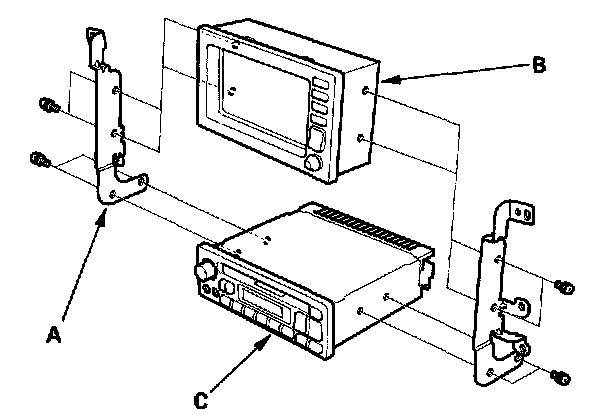

Display Unit Removal/Installation

1. Remove the center panel.




2. Remove the radio bracket (A) from the dashboard.
3. Remove the display unit (B) and audio unit (C) from the radio bracket.
4. Install in the reverse order of removal.
