Door Lock Cylinder Switch: Testing and Inspection

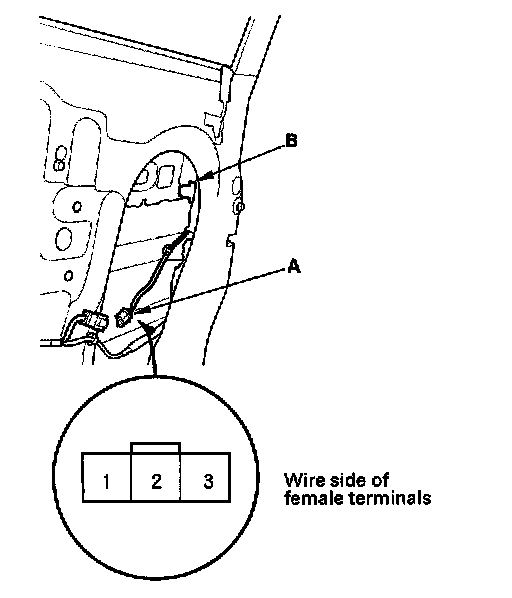

Driver's Door:
1. Remove the driver's door panel.




2. Disconnect the 3P connector (A) from the key cylinder switch (B).




3. Check for continuity between the terminals in each switch position according to the table.

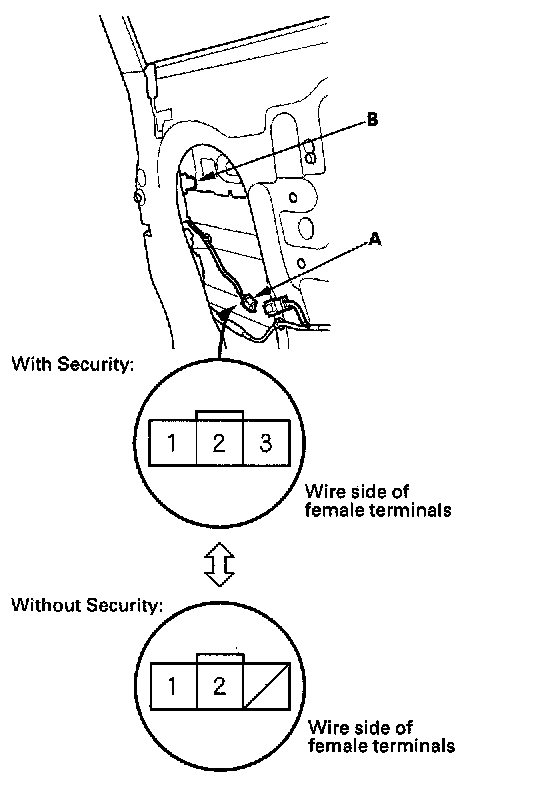

Passenger's Door:
1. Remove the front passenger's door panel.




2. Disconnect the 3P connector (A) from the key cylinder switch (B).

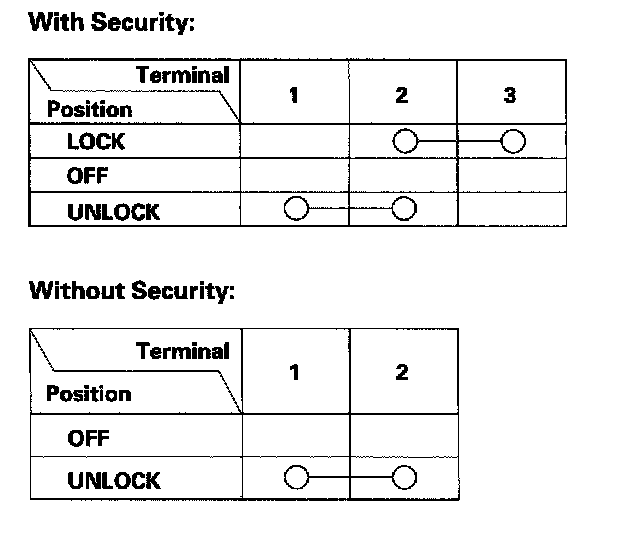

3. Check for continuity between the terminals in each switch position according to the table.
