Power Mirror Motor: Service and Repair

Power Mirror Actuator Replacement

1. Remove the power mirror from the door.
2. Disconnect the 3P or 6P connector from the mirror.

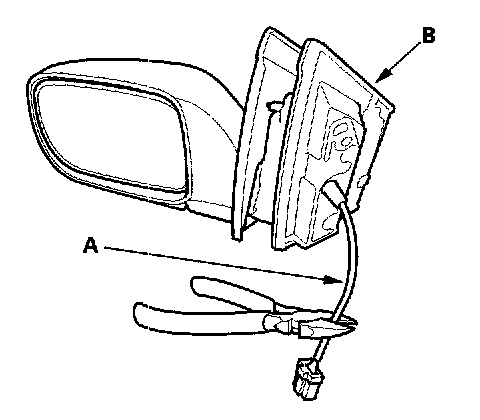

3. Cut the wire harness (A) with a wire cutter.
4. Remove the seat base (B).

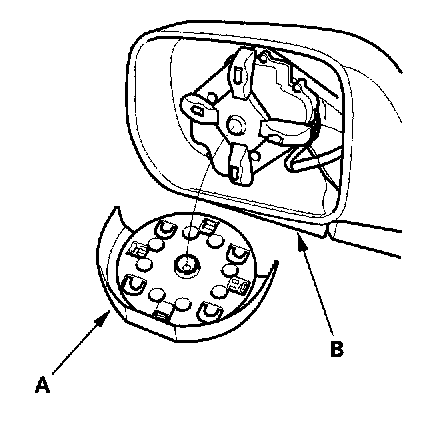

5. Remove the mirror holder (A).




6. Pry off the holder (A) from the housing (B).

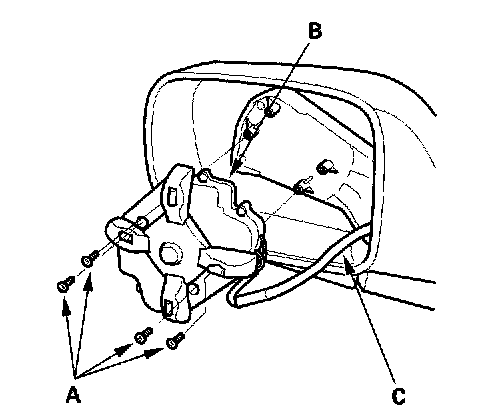

7. Remove the four screws (A) and the actuator (B) from the housing.
8. Pull the wire (C) from the housing.
9. Install in the reverse of removal. Replace the mirror and three screws with new one.

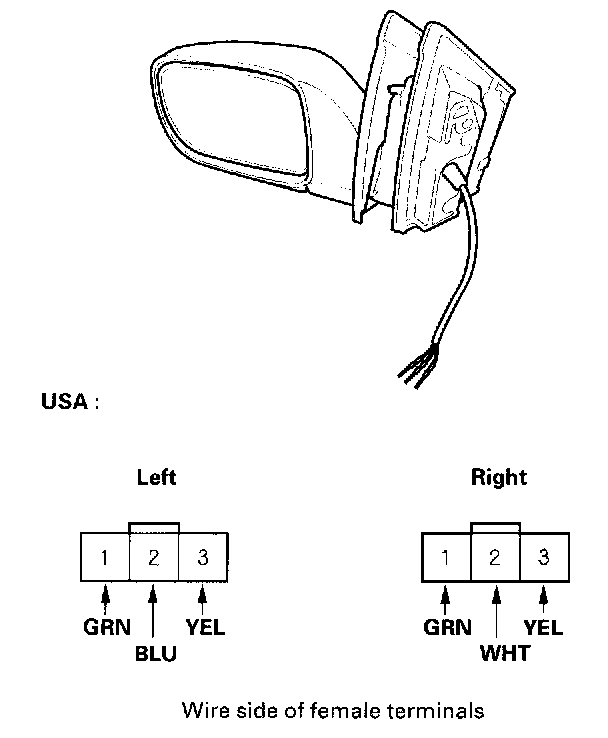

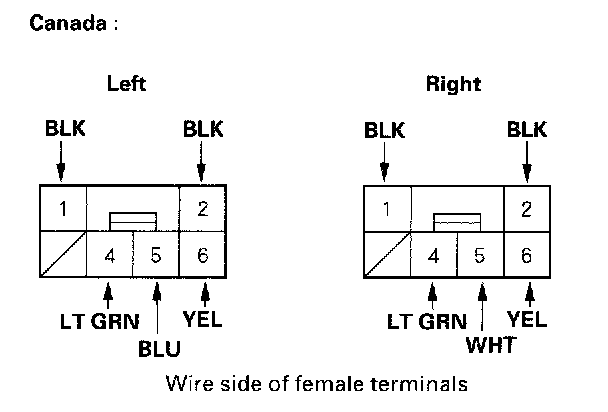

10. Insert the terminals into the connector in the original arrangement as shown.
11. Operate the power mirror to check that the actuator works smoothly.
