Home >> Honda >> 2000 >> Odyssey LX V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 51-75 >> 60

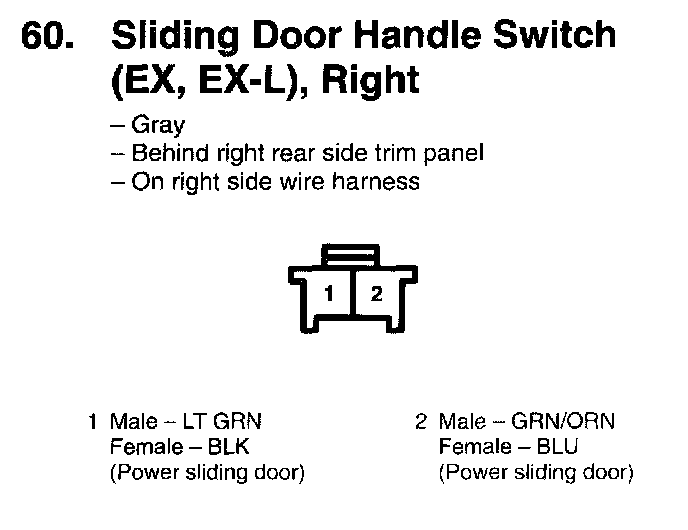

Views 51-75: 60

(EX, EX-L):
