Console

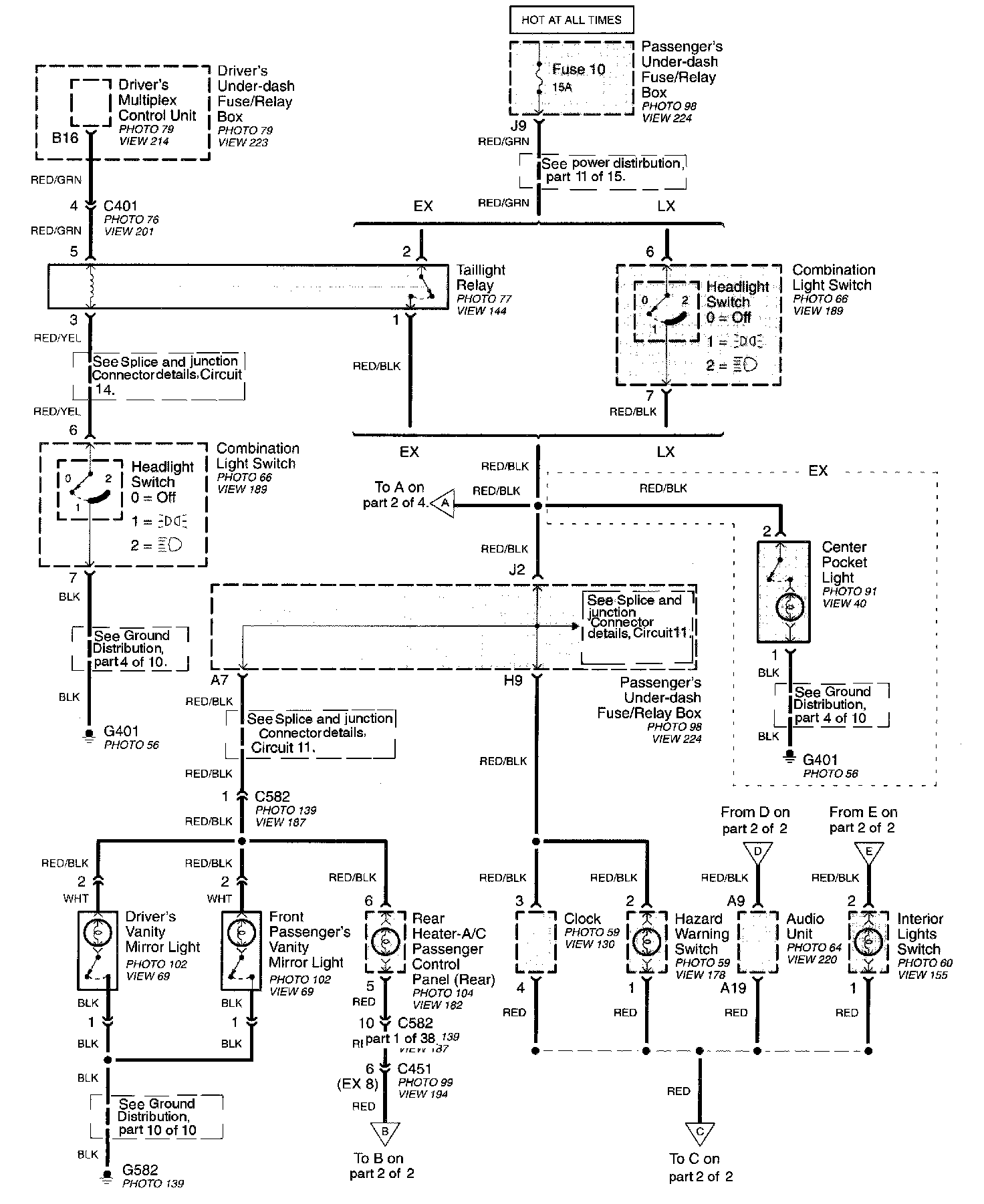

Dash And Console Lights With Navigation (Part 1 Of 2):



Dash And Console Lights Without Navigation (Part 1 Of 2):

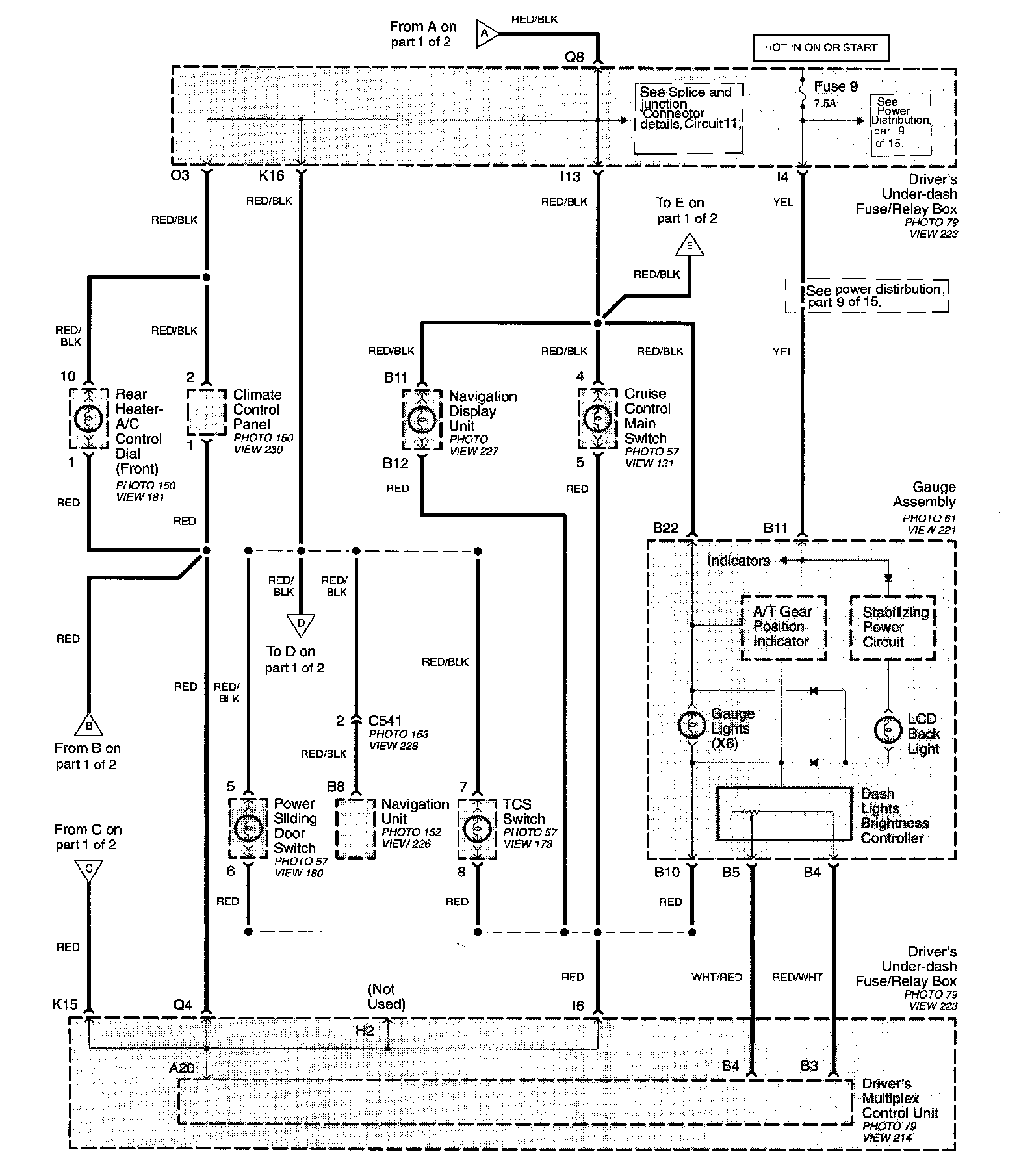

Dash And Console Lights With Navigation (Part 2 Of 2):

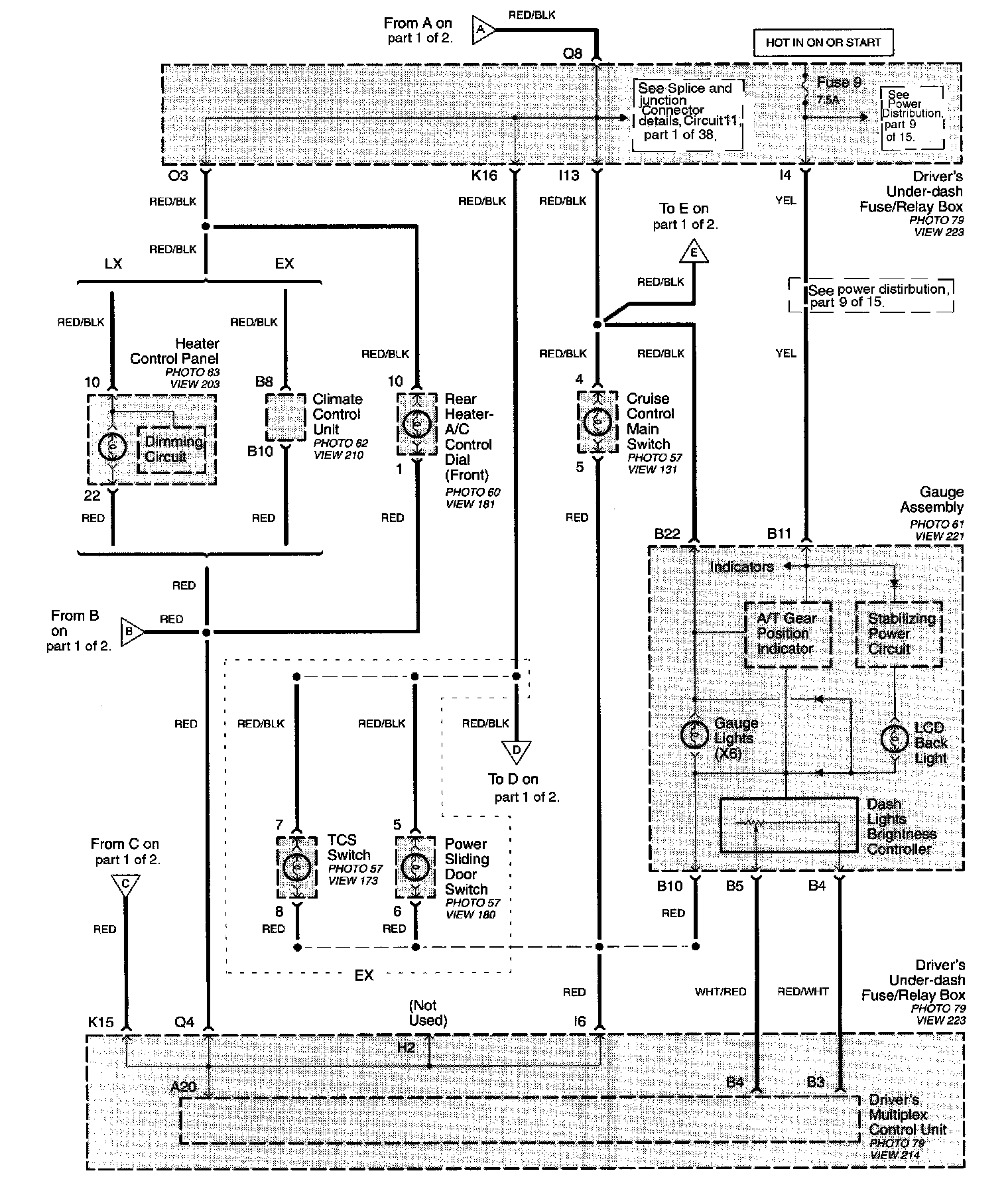

Dash And Console Lights Without Navigation (Part 2 Of 2):
