Home >> Honda >> 2000 >> Odyssey LX V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 15 >> 15-0 to 15-4

15-0 to 15-4

Circuit 11 Interior Illumination (Positive) - (Except Navigation):



Circuit 11 Interior Illumination (Positive) (Except Navigation):

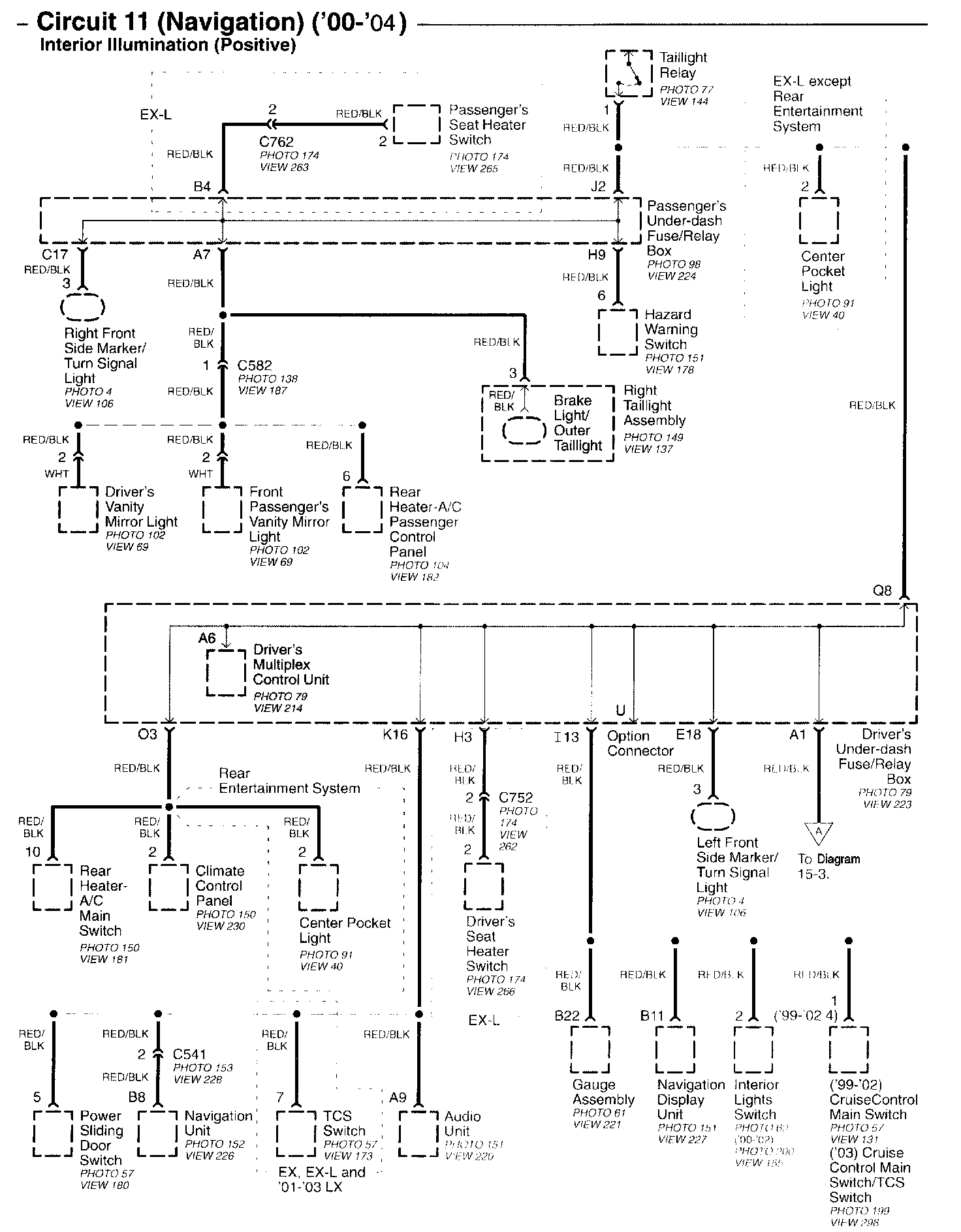

Circuit 11 Interior Illumination (Positive) (Navigation) (00-04):



Circuit 11 Interior Illumination (Positive) (Navigation) (00-04):



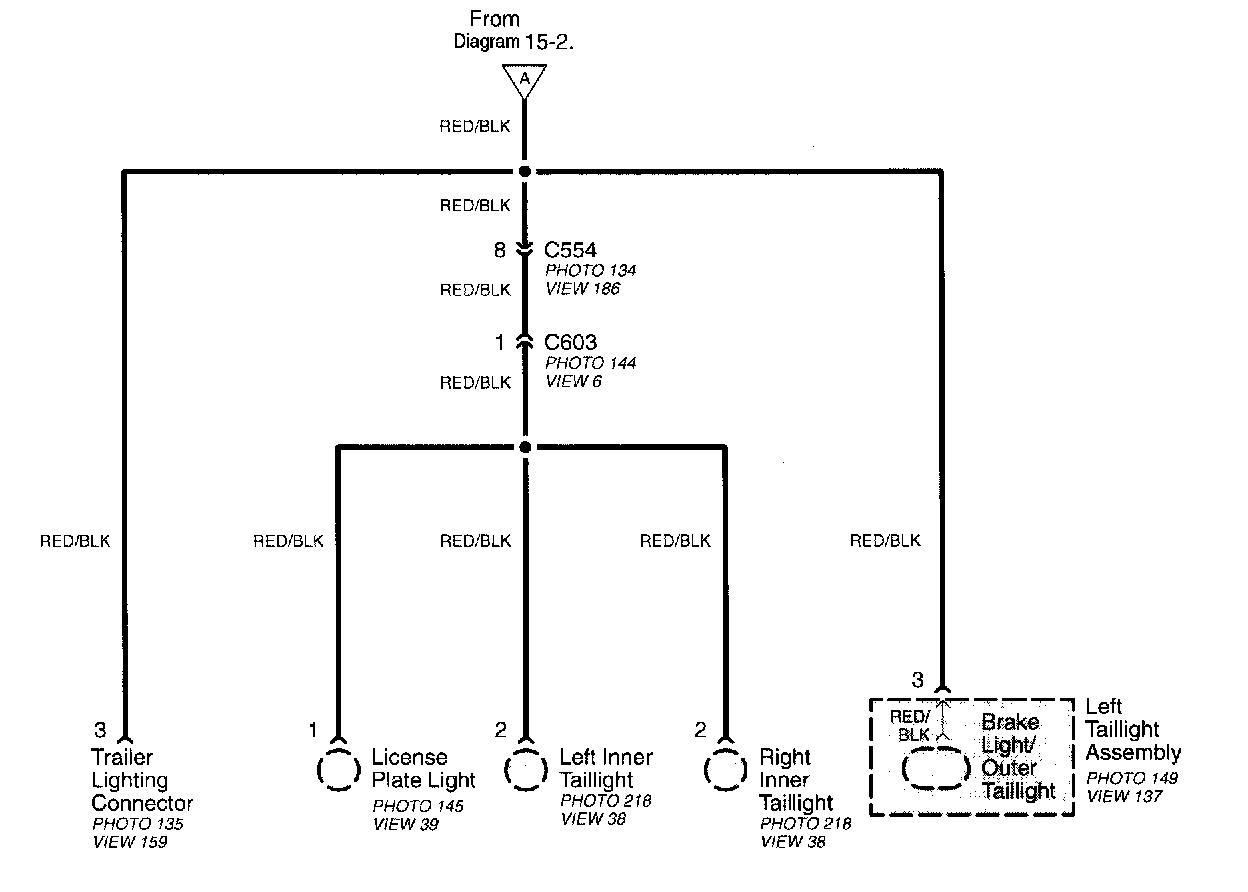

Circuit 12 - Interior Illumination (Negative):
