Home >> Honda >> 2000 >> Odyssey LX V6-3.5L >> Repair and Diagnosis >> Diagrams >> Mechanical Diagrams >> Idle Speed/Throttle Actuator - Electronic

Idle Speed/Throttle Actuator - Electronic

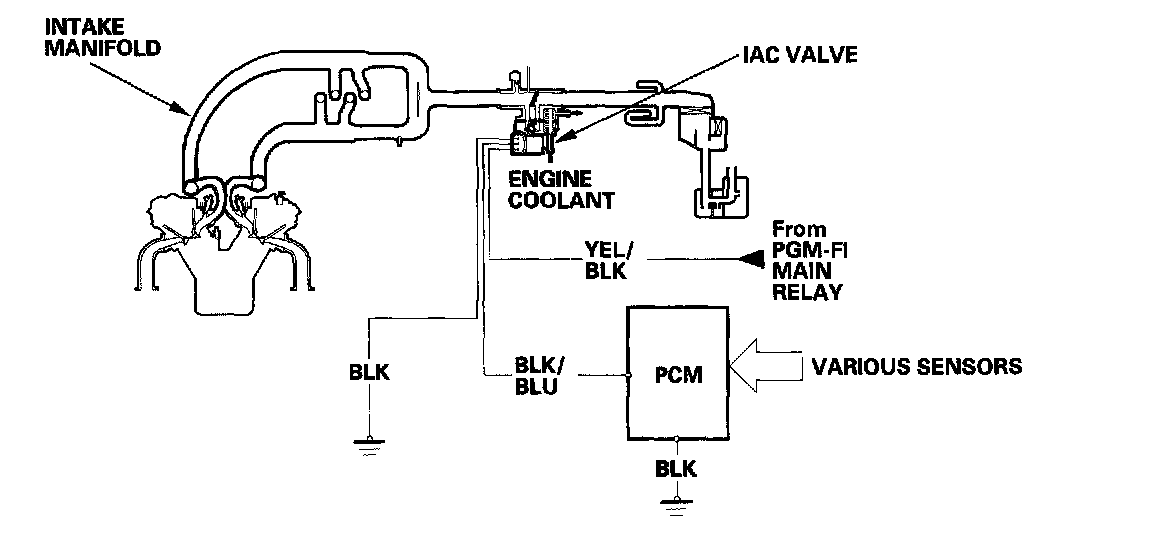

Idle Control System:
