Front Individual Map Lights Test

Front Individual Map Lights Test

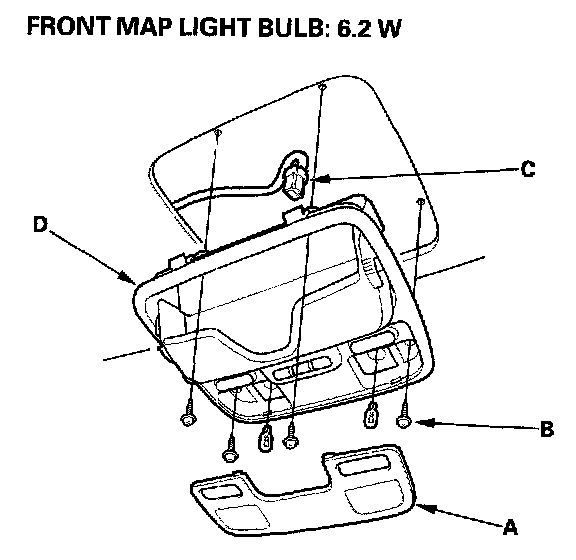

1. Carefully pry off the lens (A) with a small screwdriver.
2. Remove the four mounting screws (B).
3. Disconnect the 3P connector (C) from the housing (D).

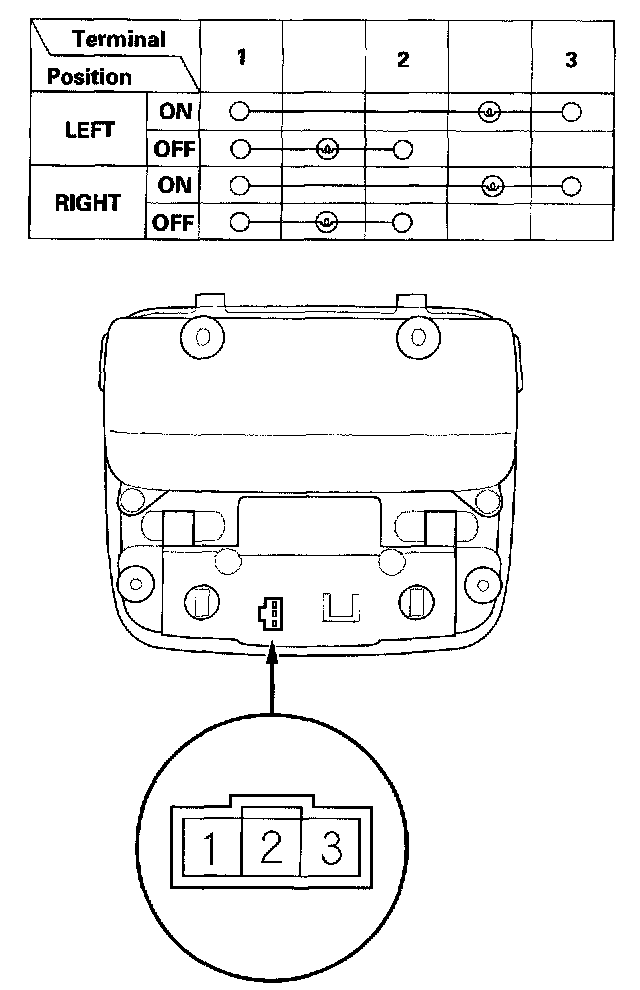

4. Check for continuity between the terminals in each switch position according to the table.
5. If the continuity is not as specified, check the bulb(s). If the bulb(s) are OK, replace the light.
