Home >> Honda >> 2000 >> Odyssey LX V6-3.5L >> Repair and Diagnosis >> Locations >> Connector Locations >> Connector ID By Location on harness >> Dashboard Wire Harness A >> With Navigation System >> Part 1 of 2

Part 1 of 2

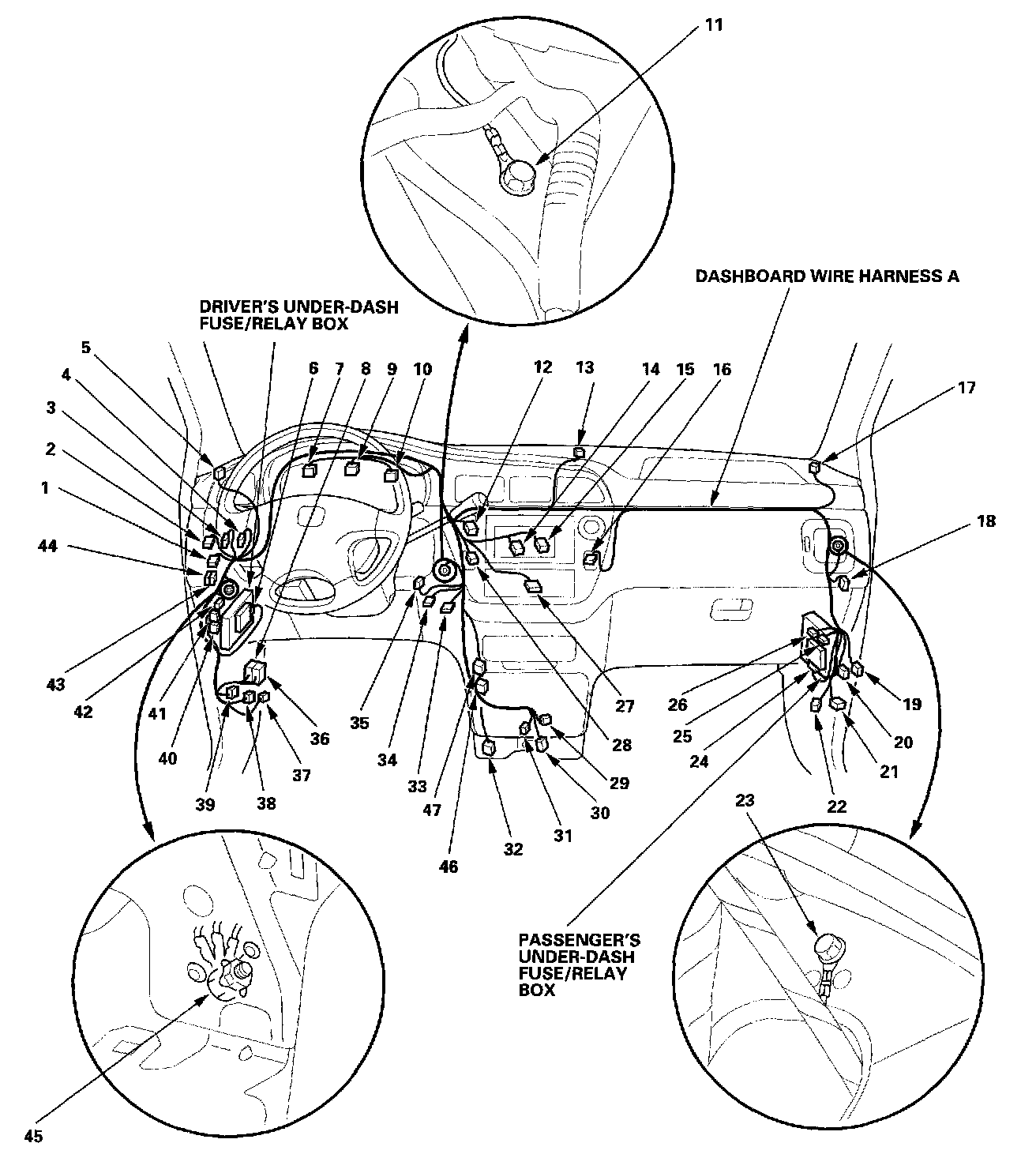

Harness Location View:

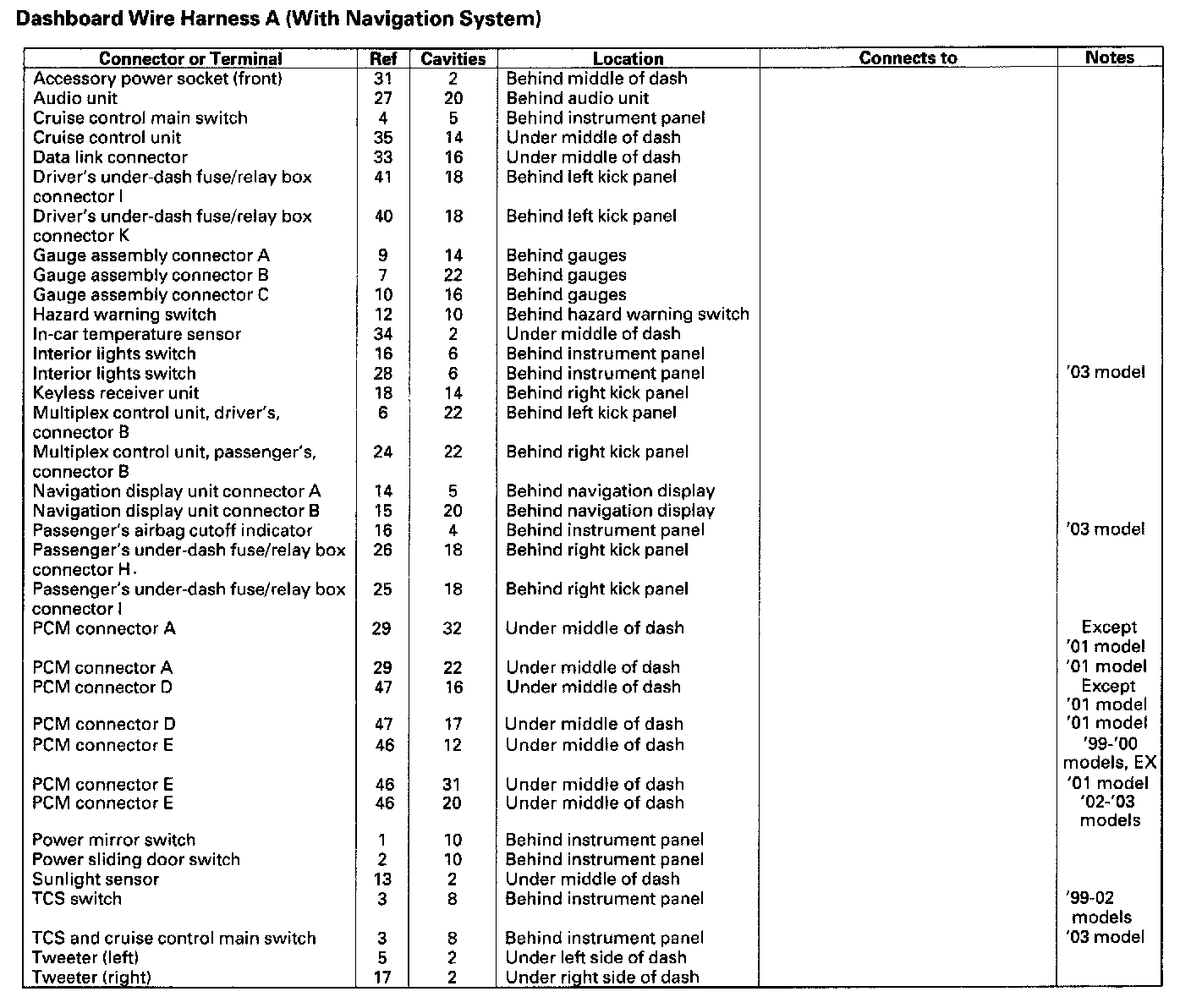

Dashboard Wire Harness A (With Navigation System):
