Drive Belt: Testing and Inspection
Alternator-compressor Belt Inspection1. Inspect the belt for cracks and damage. If the belt is cracked or damaged, replace it.

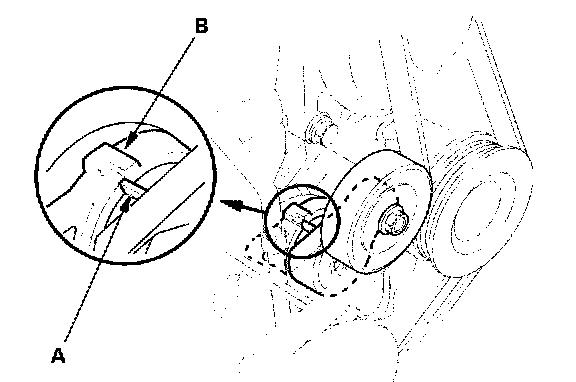

2. Check that the pointer (A) on auto tensioner housing is not beyond the edge of the indicator rib (B) on the tensioner base. If pointer is beyond the indicator rib, replace the alternator compressor belt.
