Circuit Diagrams

Multiplex Control System:

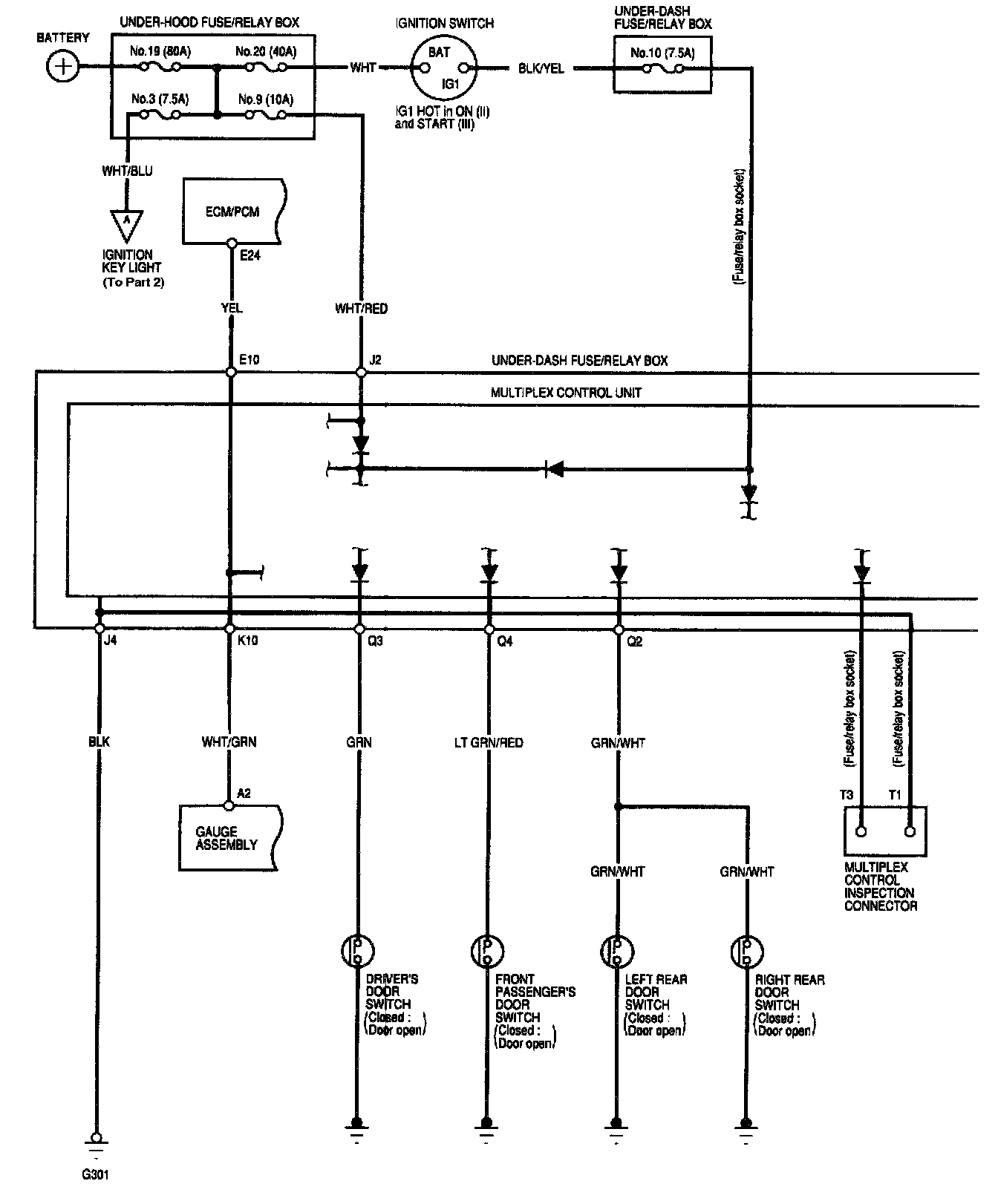

Multiplex Control System - Circuit Diagram (Part 1):



Multiplex Control System - Circuit Diagram (Part 2):
