Home >> Honda >> 2000 >> Odyssey LX V6-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module >> Locations

Radiator Cooling Fan Control Module: Locations

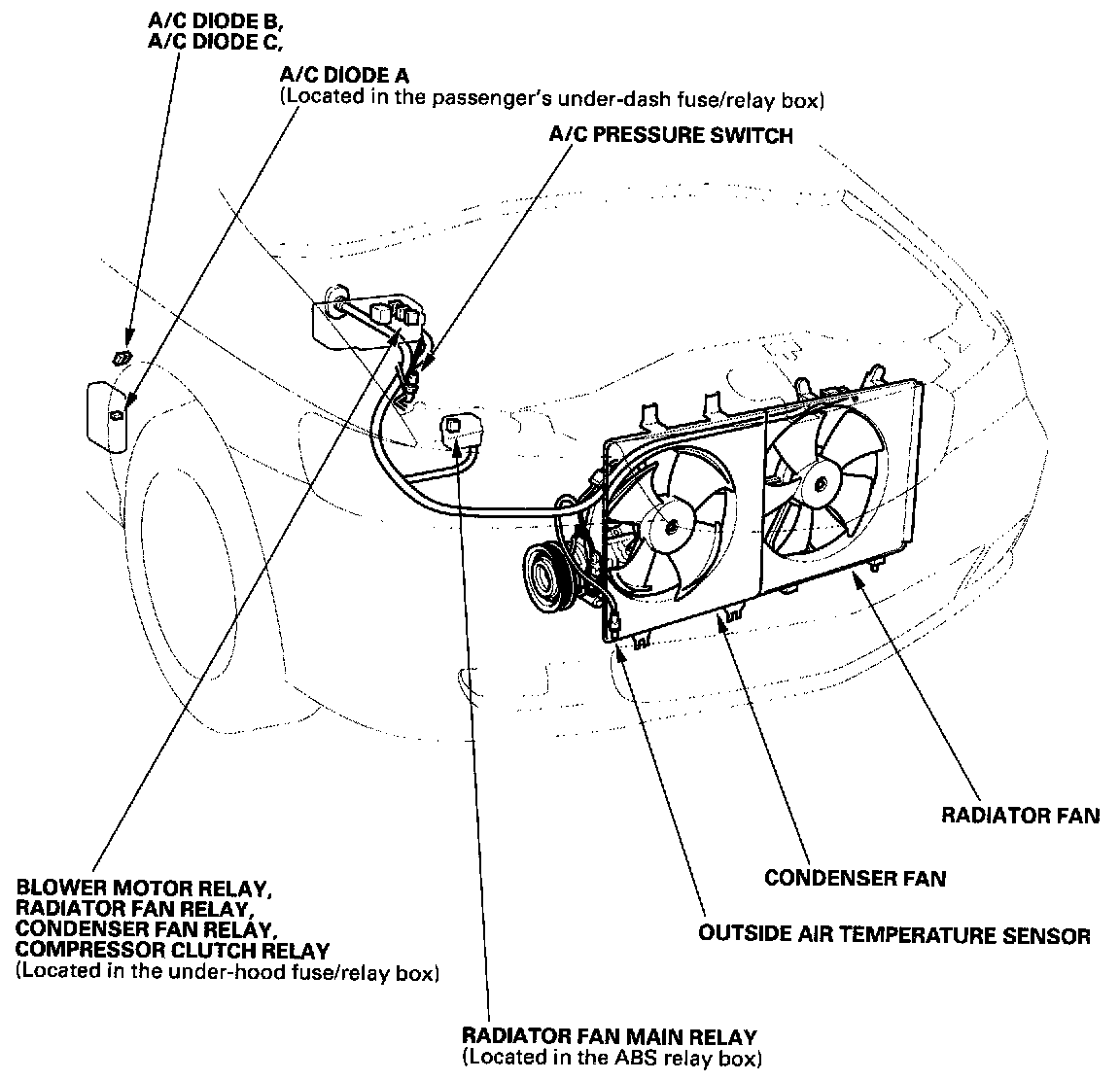

Front End View-With Climate Control (Condenser Fans And Related Components):

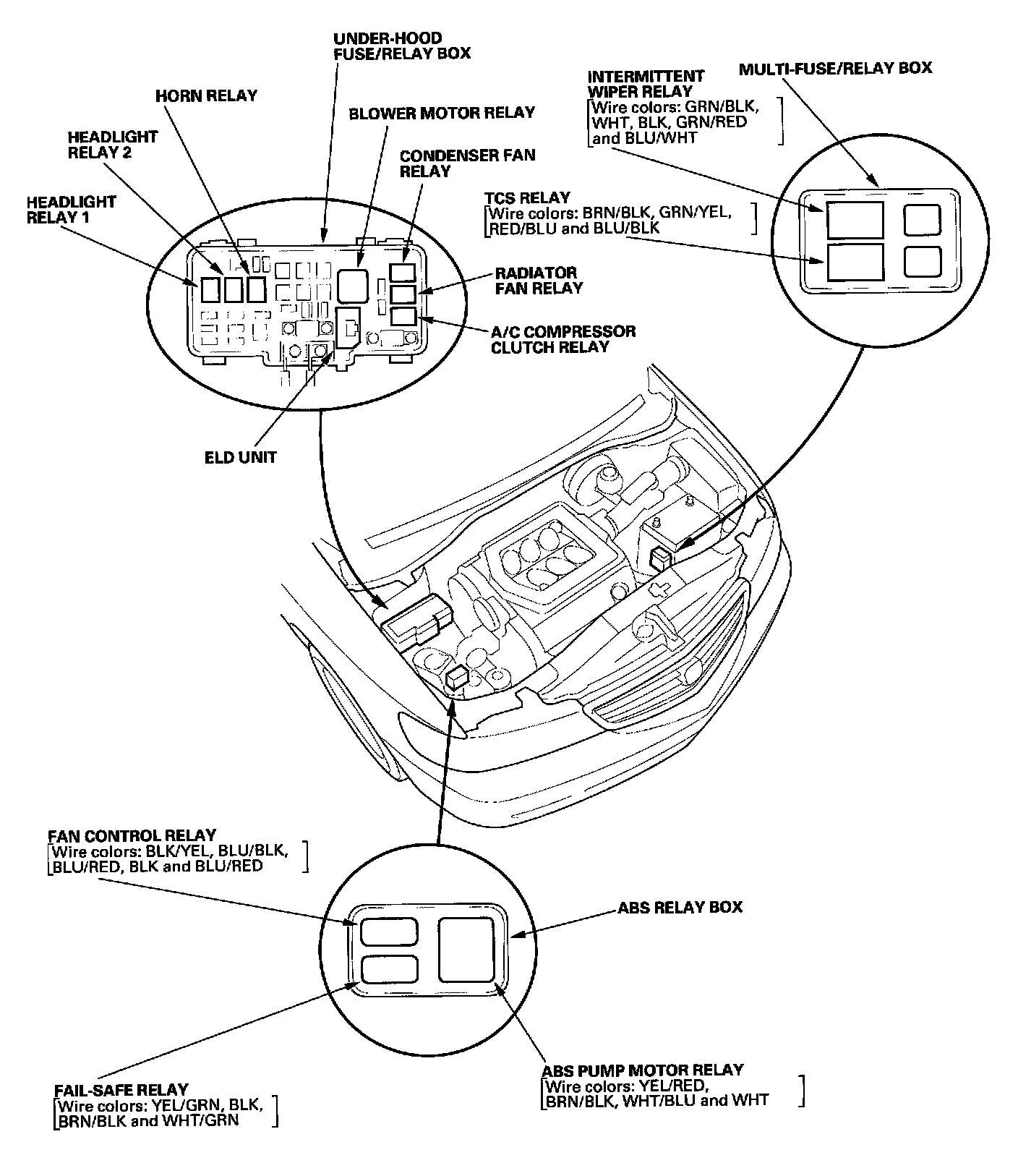

Engine Compartment View:
