Home
>>
Honda
>>
2000
>>
Odyssey LX V6-3.5L
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Lighting and Horns
>>
Headlamp Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

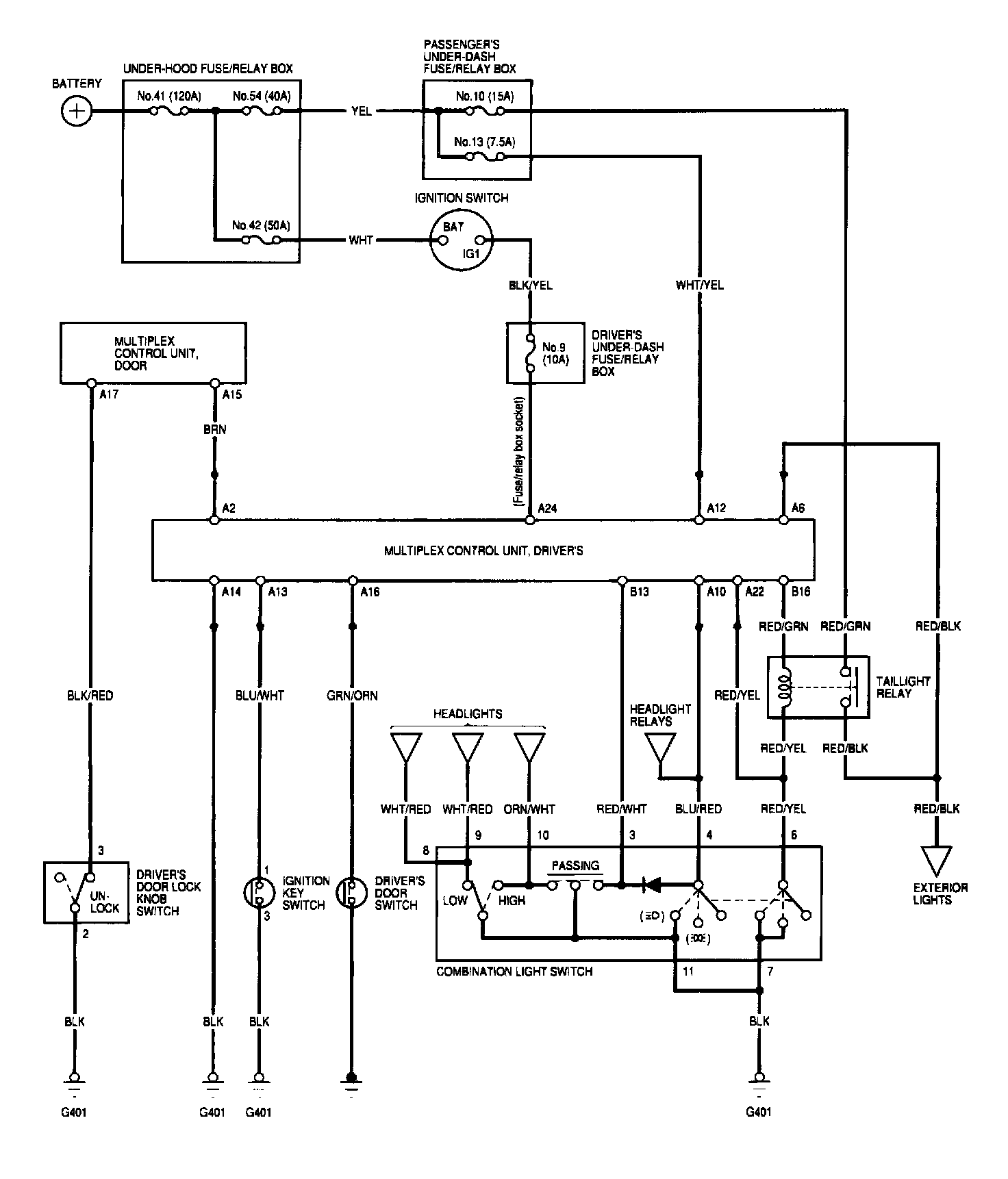

Auto-Off Headlights:
