SRS - Indicator ON/DTC 7-3 Set

01-073

September 25, 2001

Applies To:
1999-2000 Odyssey - ALL

2001 Odyssey - From VIN 2HKRL18..1H500001 thru 2HKRL18..1H597305

SRS Indicator On With DTC 7-3

SYMPTOM

The SRS indicator is on, and DTC 7-3 (internal failure of SRS unit) is stored.


PROBABLE CAUSE

An internal failure of the SRS control unit.

CORRECTIVE ACTION

Replace the SRS control unit.

PARTS INFORMATION

SRS Control Unit: P/N 77960-SOX-A82, H/C 6222962

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Operation Number: 751100

Flat Rate Time: 0.6 hour

Failed Part: P/N 77960-S0X-A82
H/C 6222962

Defect Code: 032

Contention Code: B01

Template ID: 01-073A

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE

1. Make sure you have the anti-theft codes for the radio and the navigation system (if equipped). Write down the customer's radio presets.

2. Disconnect the negative battery cable, and wait at least 3 minutes before continuing.

3. Disconnect the airbag connectors and the seat belt tensioner connectors (see page 23-26 in the service manual).

4. Remove the center lower pocket (see page 20-66 in the service manual).

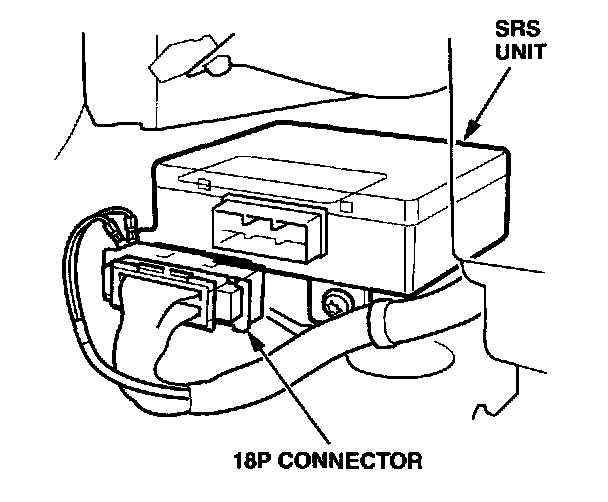

5. Disconnect the SRS main harness 18P connector from the SRS unit.

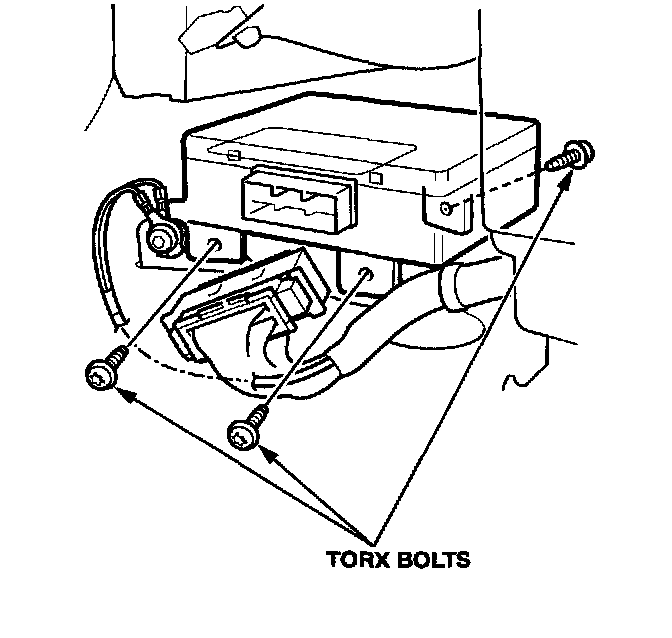

6. Remove the three Torx bolts from the SRS unit, then pull out the SRS unit from the bracket.





7. install the new SRS unit with the three new Torx bolts supplied with the SRS unit.

NOTE:

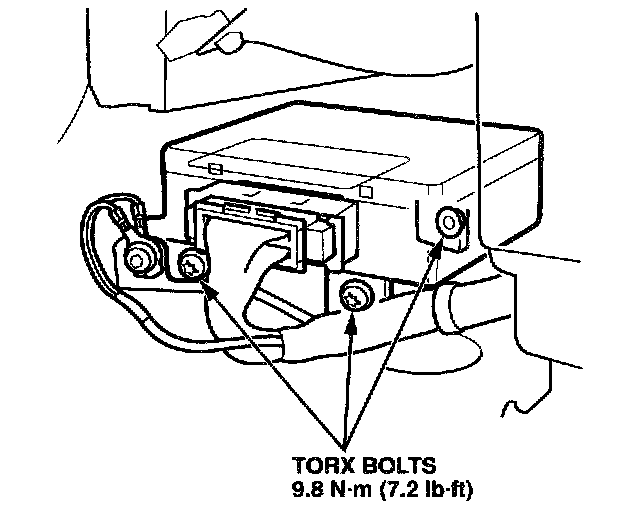

When tightening the Torx bolts to the specified torque after replacement, be careful to turn them in so that their heads rest squarely on the brackets.

8. Connect the SRS main harness 18P connector to the SRS unit; push it into position until it clicks.

9. Reinstall the center lower pocket.

10. Reconnect the airbag connectors and the seat belt tensioner connectors.

11. Reconnect the negative battery cable.

12. Confirm proper system operation by turning the ignition switch to ON (II) and noting that the SRS indicator comes on for about 6 seconds and then goes off.

^ If the indicator comes on for 6 seconds, and then goes off, go to step 13.

^ It the indicator does not come on for 6 seconds and go off, use the PGM Tester SCS menu method to retrieve the flash codes (see page 23-29 in the service manual).

13. Enter the anti-theft codes for the radio and the navigation system, and then enter the customer's radio station presets.

14. Set the clock.
