Park Pin Switch Test

Test
SRS components are located in this area. Review the SRS component locations, precautions, and procedures in SRS before performing repairs or service.
1. Remove the steering column covers.

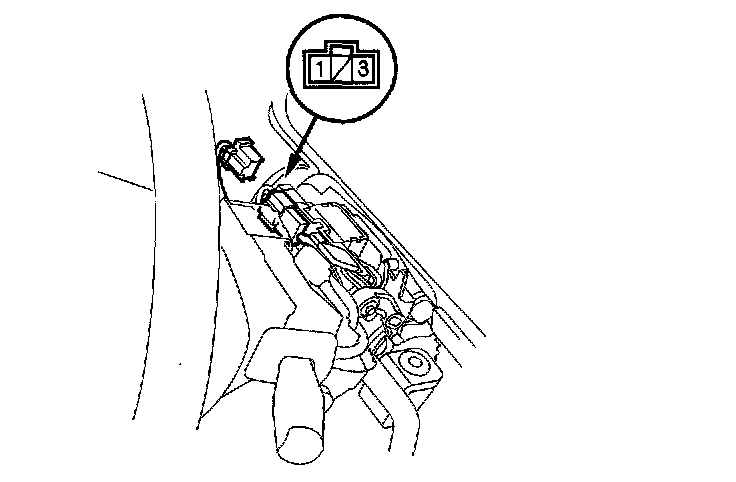

2. Disconnect the park pin switch connector.





3. Shift the shift lever into the P position, then check for continuity between the No. 1 and No. 3 terminals. There should be continuity.
4. Shift the shift lever out of the P position, and check for continuity between the terminals in step 3.
5. If the park pin switch is faulty, replace the control bracket assembly. (The park pin switch is not available separately.)
