Heated Glass Element Switch: Testing and Inspection

1. Remove the dashboard lower cover.

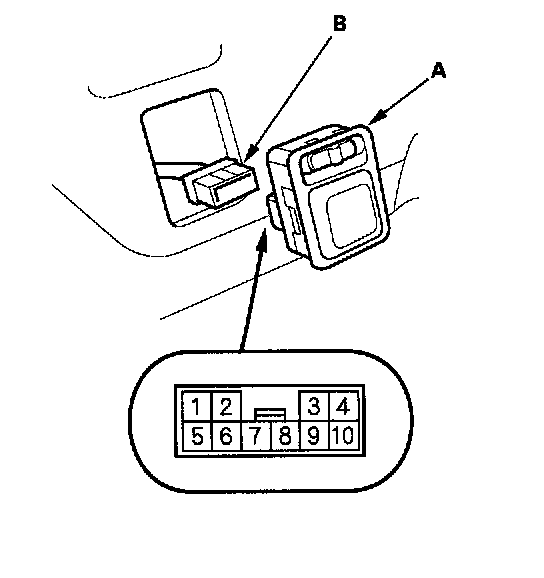

2. Disconnect the 10P connector (B) from the power mirror switch (A).

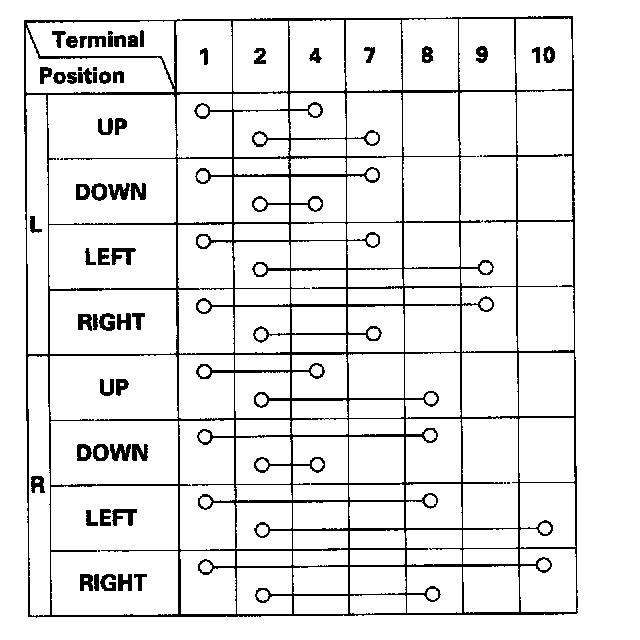

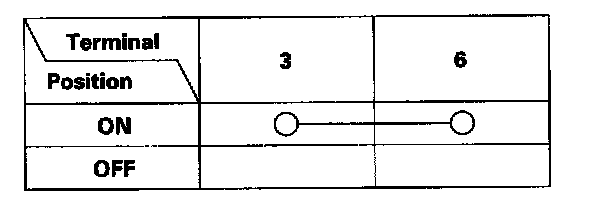

3. Check for continuity between the terminals in each switch position according to the table.
