Spark Plug: Application and ID

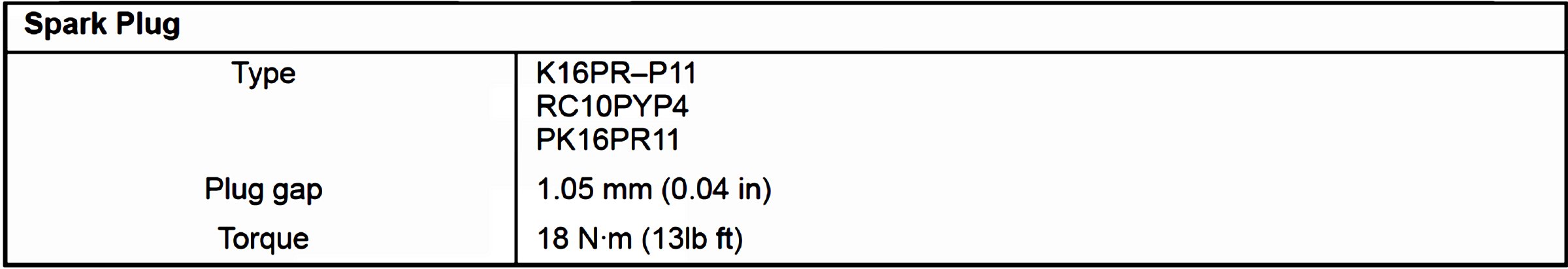

Spark Plug Specifications

NOTE:
On '00-01 Passports with A/T, make sure you install only Denso spark plugs (P/N 8-97170-268-0, Denso P/N K16PR-P11). Other brands may cause the PCM to detect an additional crank sensor pulse, causing the PCM to reset itself and flash the CHECK TRANS and the CRUISE SET indicators.
