System Specifications

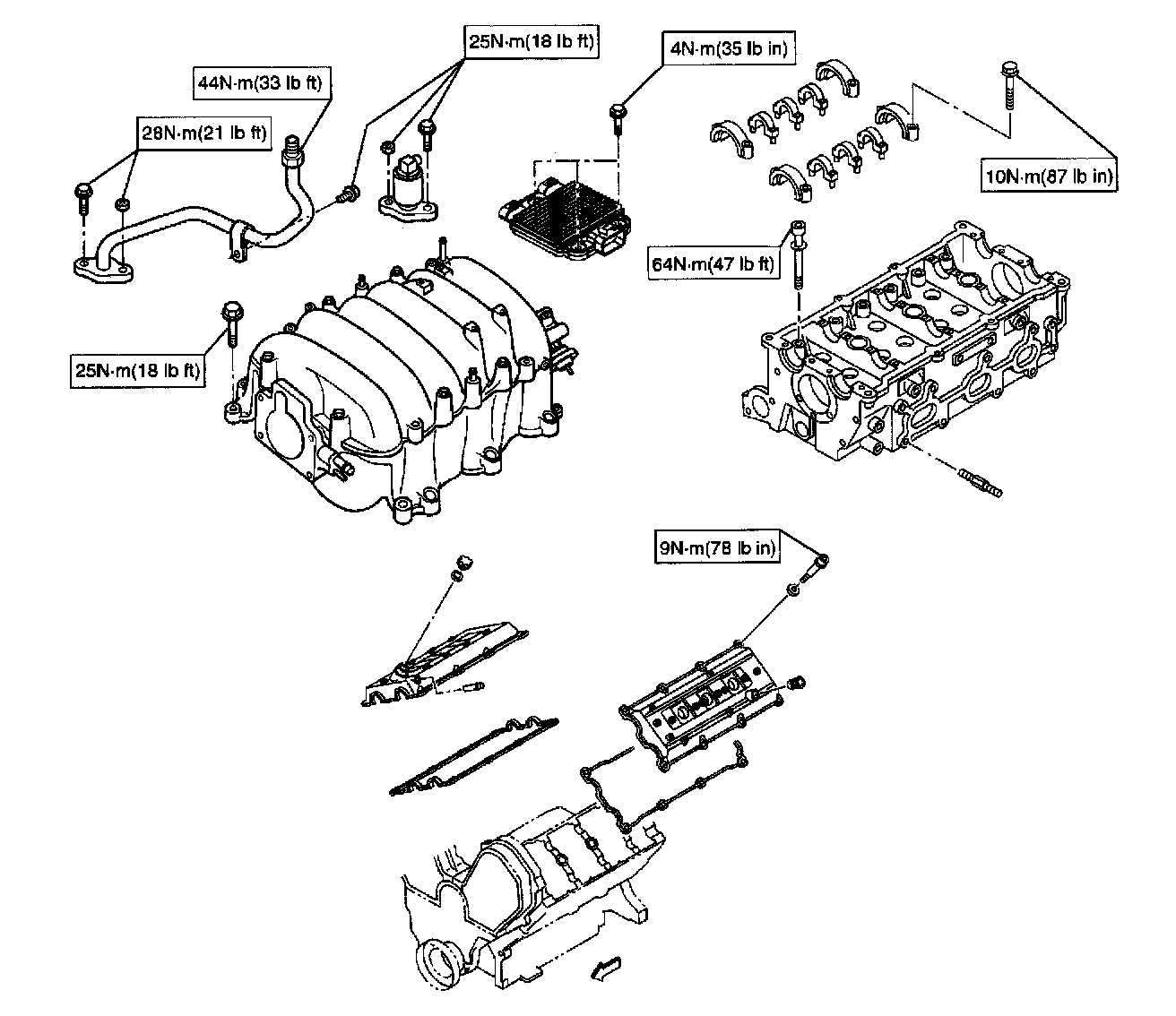

Cylinder Head Cover, Cylinder Head, Camshaft Bearing Cap, Common Chamber, EGR Valve And EGR Pipe, Ion Sensing Module


Cylinder Head Tightening Procedures
Install cylinder head assembly to cylinder block.
A. Put cylinder head gasket on the cylinder block.

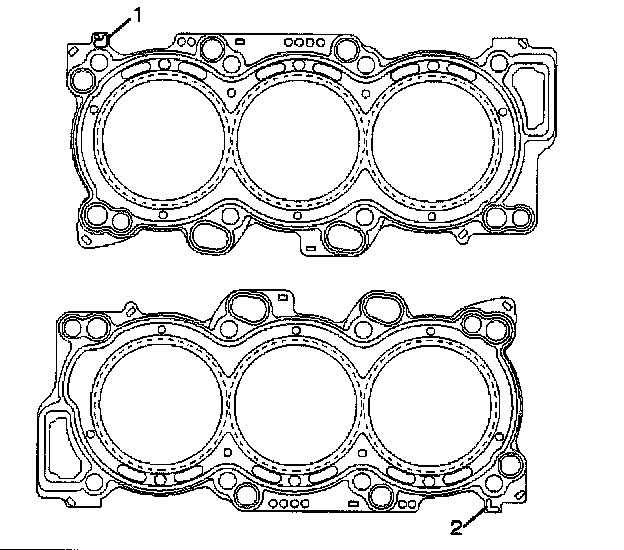

NOTE: There is discrimination mark "R" for right bank and "L" for left bank on the cylinder head gasket.

Do not reuse cylinder head gasket.
B. Align dowel pin hole to dowel pin on the cylinder block.
C. Position cylinder head on the cylinder block.
D. Tighten two bolts temporarily by hand to prevent the cylinder head assembly from moving.





E. Using J-24239-01 cylinder head bolt wrench, tighten bolts to the specified torque.

NOTE: Do not reuse cylinder head bolts.

Do not apply any lubricant to the cylinder head bolts.
Torque:
Temporary: 29 Nm (22 ft. lbs.)
Final: 64 Nm (47 ft. lbs.)
