Electrical Diagrams

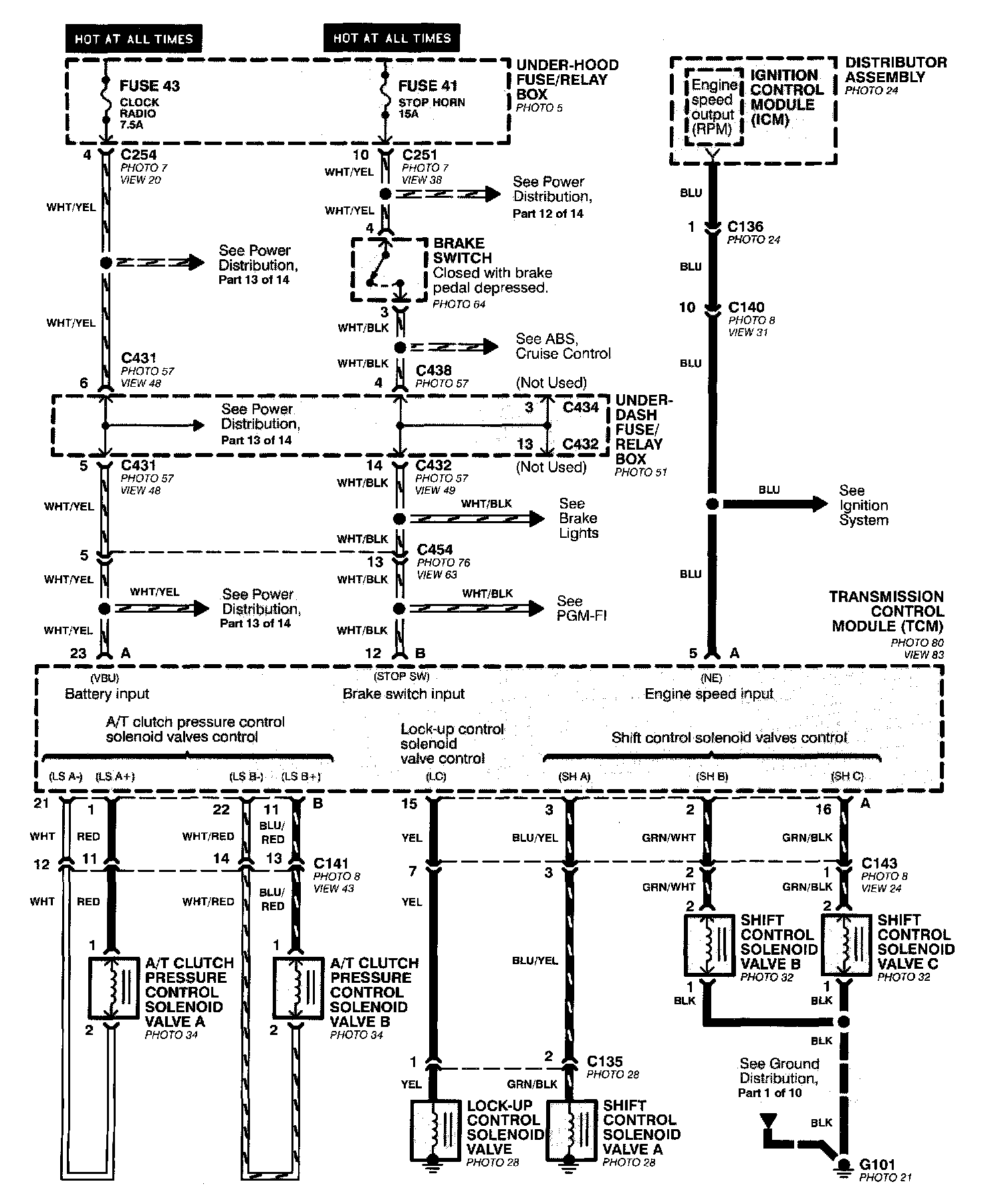

Automatic Transmission Controls (Part 1 Of 5):




Automatic Transmission Controls (Part 1 Of 5)
A/T Clutch Pressure Control Solenoid Valve A & B
Distributor Assembly
- Ignition Control Module (ICM)
Lock-Up Control Solenoid Valve
Shift Control Solenoid Valve A, B, C
Transmission Control Module (TCM)
Under-Hood Fuse/Relay Box
Under-Dash Fuse/Relay Box

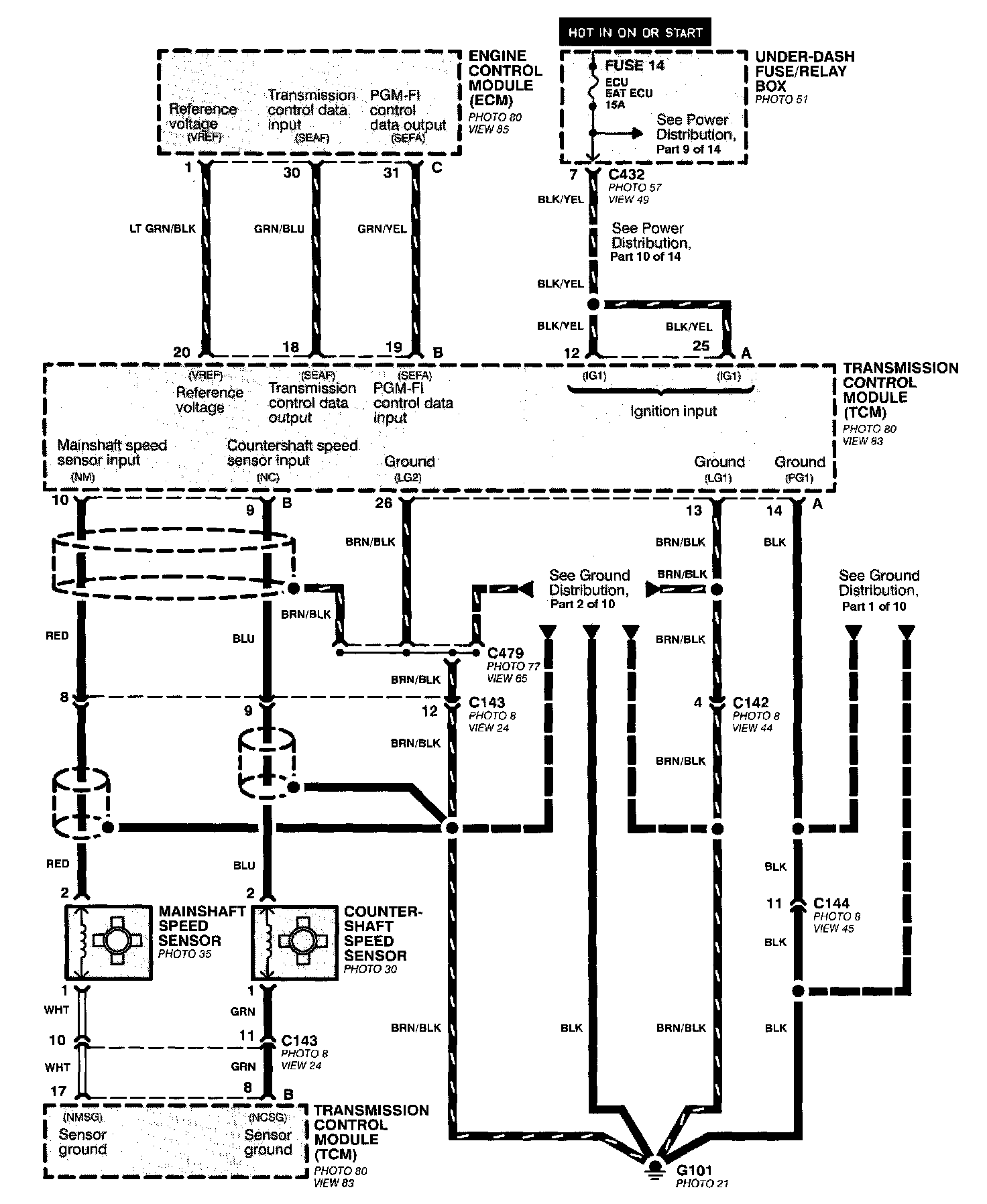

Automatic Transmission Controls (Part 2 Of 5):




Automatic Transmission Controls (Part 2 Of 5)
Countershaft Speed Sensor
Engine Control Module (ECM)
Mainshaft Speed Sensor
Transmission Control Module (TCM)
Under-Dash Fuse/Relay Box

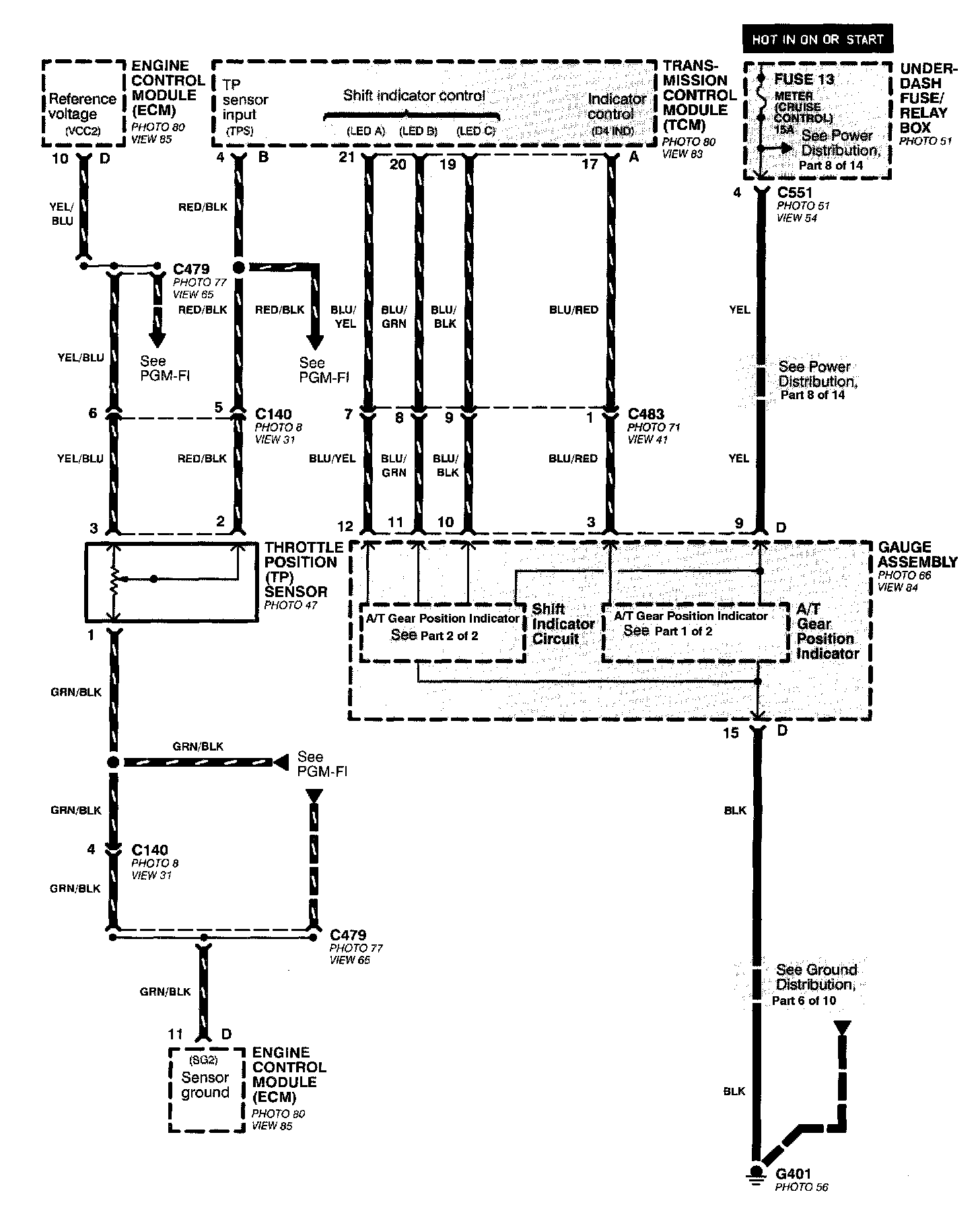

Automatic Transmission Controls (Part 3 Of 5):




Automatic Transmission Controls (Part 3 Of 5)
Engine Control Module (ECM)
Gauge Assembly
Throttle Position (TP) Sensor
Transmission Control Module (TCM)
Under-Dash Fuse/Relay Box

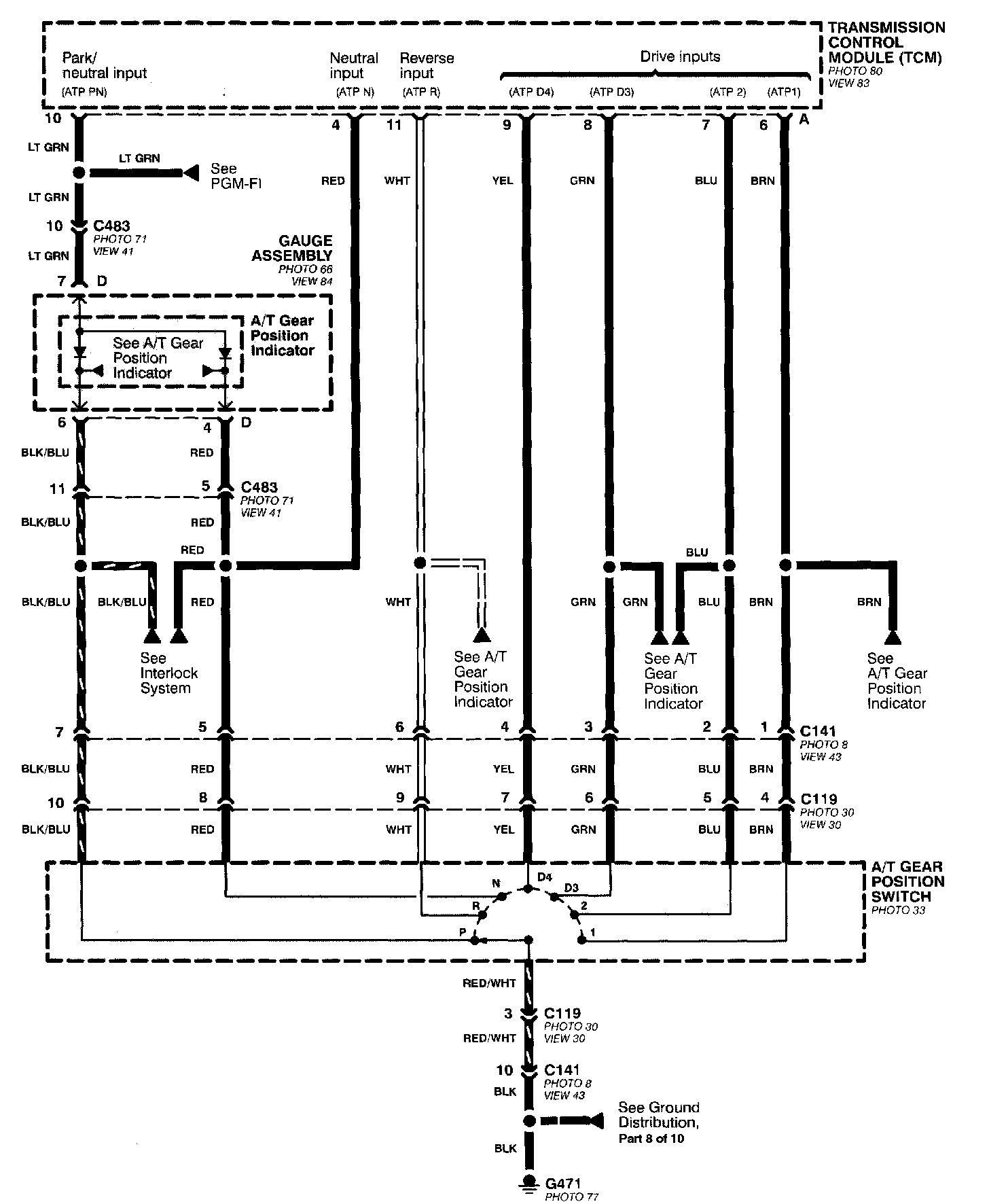

Automatic Transmission Controls (Part 4 Of 5):




Automatic Transmission Controls (Part 4 Of 5)
A/T Gear Position Switch
Gauge Assembly
- A/T Gear Position Switch
Transmission Control Module (TCM)

Automatic Transmission Controls (Part 5 Of 5):

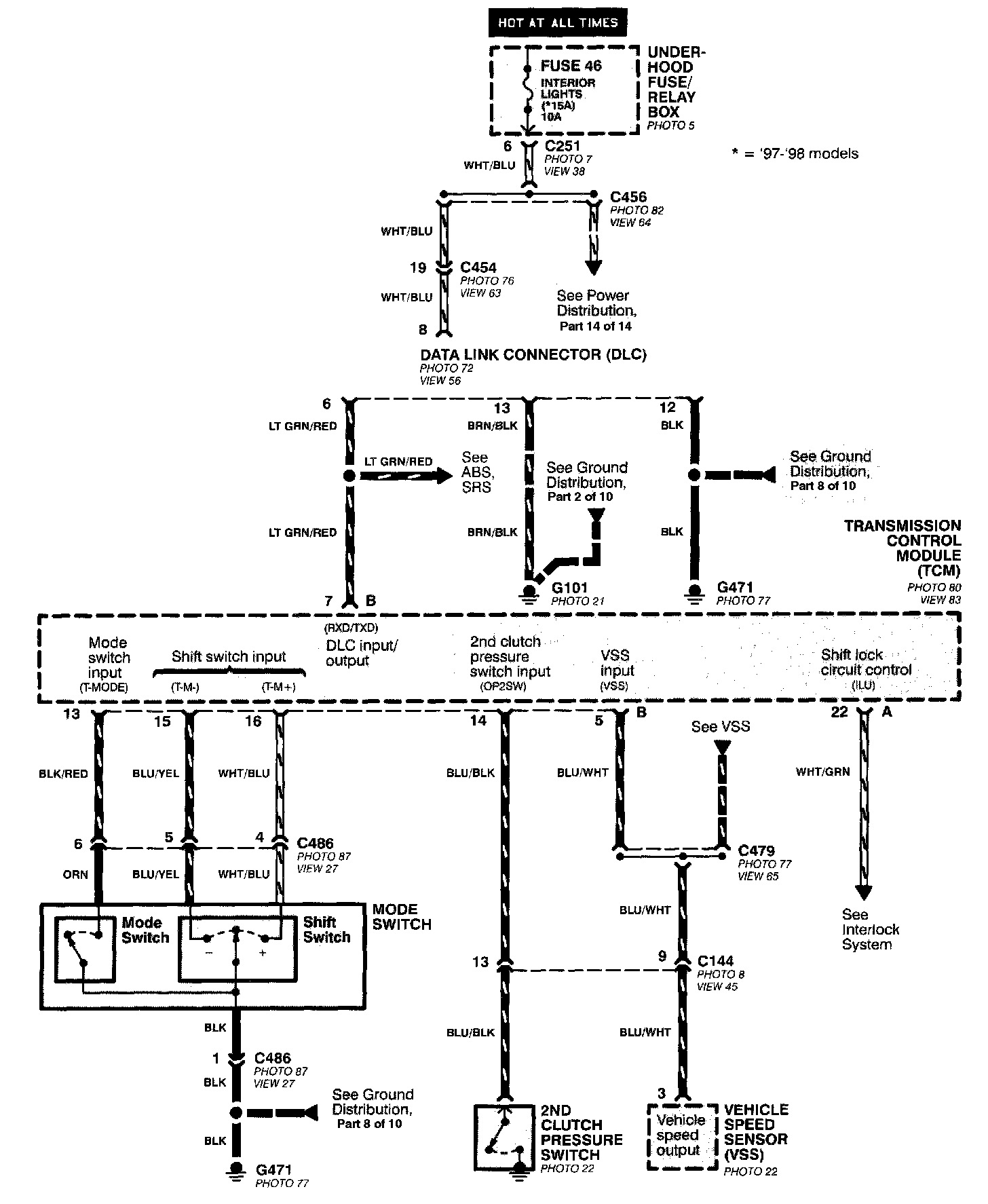

Automatic Transmission Controls (Part 5 Of 5)
Mode Switch
- Shift Switch
Transmission Control Module (TCM)
Under-Hood Fuse/Relay Box
Vehicle Speed Sensor (VSS)
2nd Clutch Pressure Switch
